The advantages of the Qingling Isuzu 100P GK35 aerial work platform truck lie in its use of the classic Isuzu 100P chassis and 130 horsepower engine, which are imported from the original factory. It has the flexibility of a blue-plate light truck and can be driven with a C license. At the same time, it is equipped with a 33.3-meter seven-section boom and an intelligent electronic control system, providing extremely high vehicle reliability, fuel economy and efficient operation in narrow urban environments.
Product Description
Shandong Xinyaheng International Trade Co., Ltd. extends its sincere greetings!
We specialize in the production and customization of high-quality 3-25 ton cranes.
Our mission is to provide customers with cost-effective solutions to maximize their profitability. We are committed to building long-term partnerships and offering highly competitive pricing policies to our long-term partners. We look forward to discussing how to support your business growth.
Product Advantage
The Qingling Isuzu 100P GK35 aerial work platform truck is the preferred model for entering overseas markets. It perfectly combines the world-renowned Isuzu 130-horsepower high-reliability chassis with a 33.3-meter high-strength seven-section boom. With its compact body that meets blue license plate standards, internationally recognized electro-hydraulic proportional intelligent control system, and comprehensive safety protection configuration, it provides global customers with an extremely durable, flexible, and efficient aerial work solution.
Product Parameters
| Vehicle Series | Qingling Isuzu 100P Aerial Work Platform Chassis |
| Cabin | Power steering, air conditioning, central locking, power windows |
| Engine | 4KB1-TCG60 Isuzu 130hp engine |
| Transmission | Isuzu MSB 5-speed |
| Battery | 12V dual batteries |
| Wheelbase | 2800mm |
| Leaf Spring Count | 3/3+2 |
| Tire Specifications | 7.00R16LT 8PR |
| Brakes | Air brakes |
| Overall Dimensions | 5995mm*1980mm*2995mm |
| Gross Vehicle Weight | 4495KG |
| Upper Structure | GK35 type |
| Maximum Working Height | 33.3M |
| Maximum Working Radius | Safety limit 18M/Maximum radius 22M |
| Platform Rated Load | 200KG |
| Boom Slewing Angle | 360 degrees |

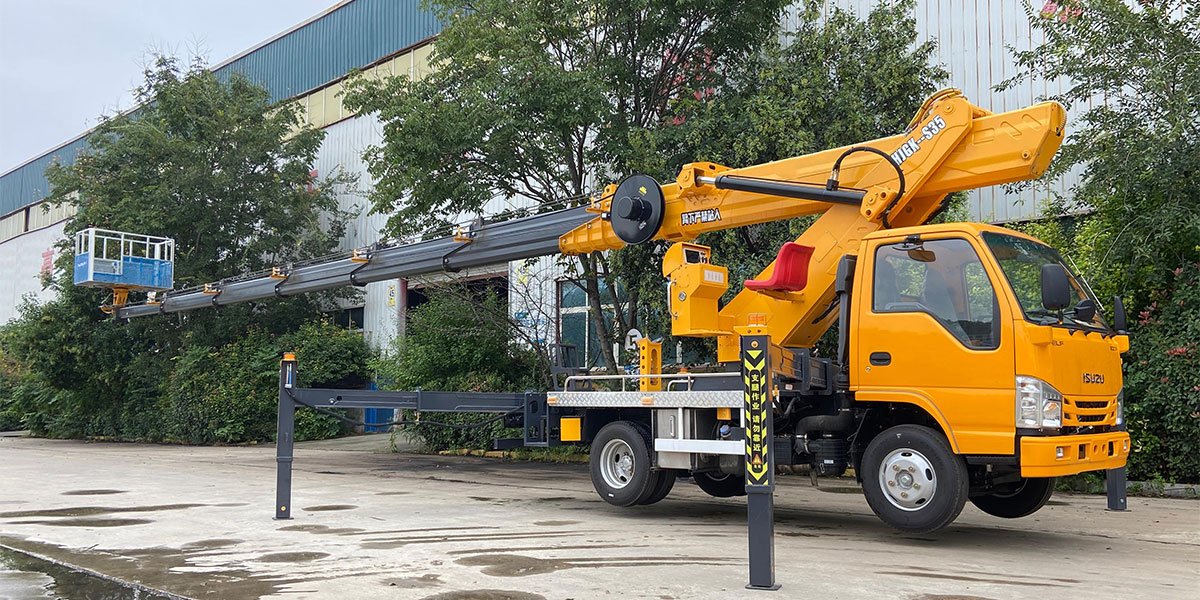

| Working Boom | Baosteel 960, 14-section seven-section boom, six-section synchronous telescopic boom, double wire rope |
| Luffing Cylinder | Thickened type Dual Luffing Cylinders |
| Slewing Support | 21-inch horizontal slewing bearing |
| Hydraulic Drum | Composite hydraulic drum, integrated oil pipe and cable conduit |
| Operating System | Electrical control system, wireless remote control, intelligent electrical control for upper structure |

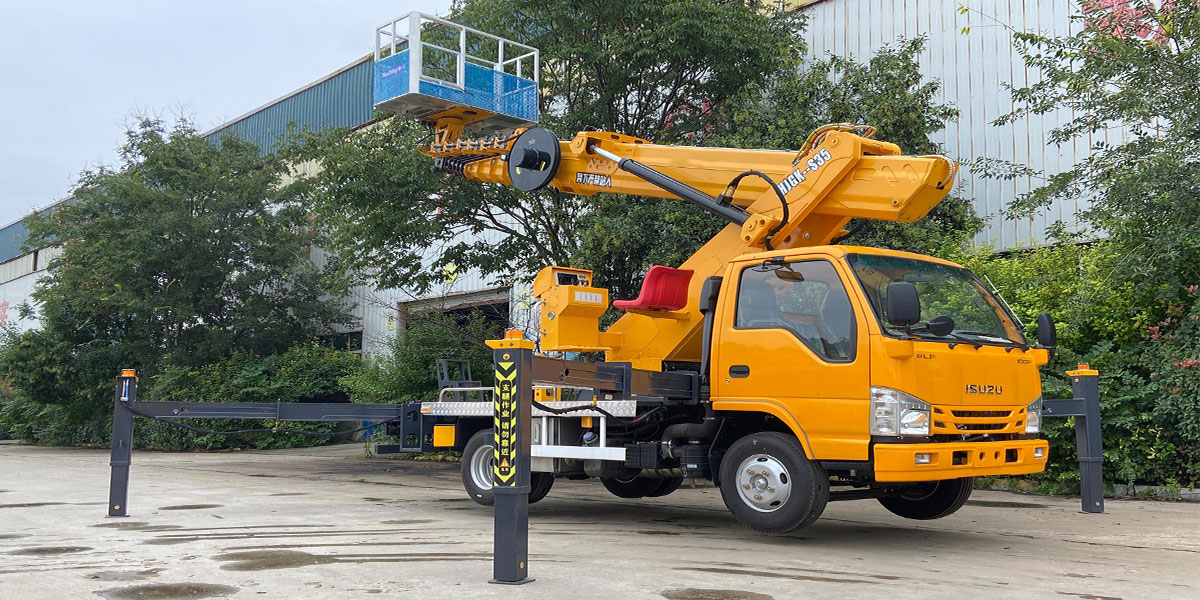

| Hydraulic Outriggers | X-shaped outriggers, four double-section hydraulic outriggers, individually adjustable |
| Outrigger Span | Lateral span 6100mm, longitudinal span 5500mm |
| Work Basket | Aviation aluminum |
| Platform Dimensions | 1600mm*700mm*1150mm [Customizable] |
| Platform Slewing Range | 360-degree unlimited rotation |
| Hydraulic System | Electro-hydraulic proportional valve, stepless speed adjustment, equipped with emergency power source |
| Hydraulic Valves | Undercarriage multi-way valve, telescopic/luffing balance valve, center slewing valve |
| Walkway | Thickened anti-slip walkway made of aviation aluminum |
| Safety Devices | Undercarriage interlock, emergency pump, two-way hydraulic balance valve, explosion-proof valve |

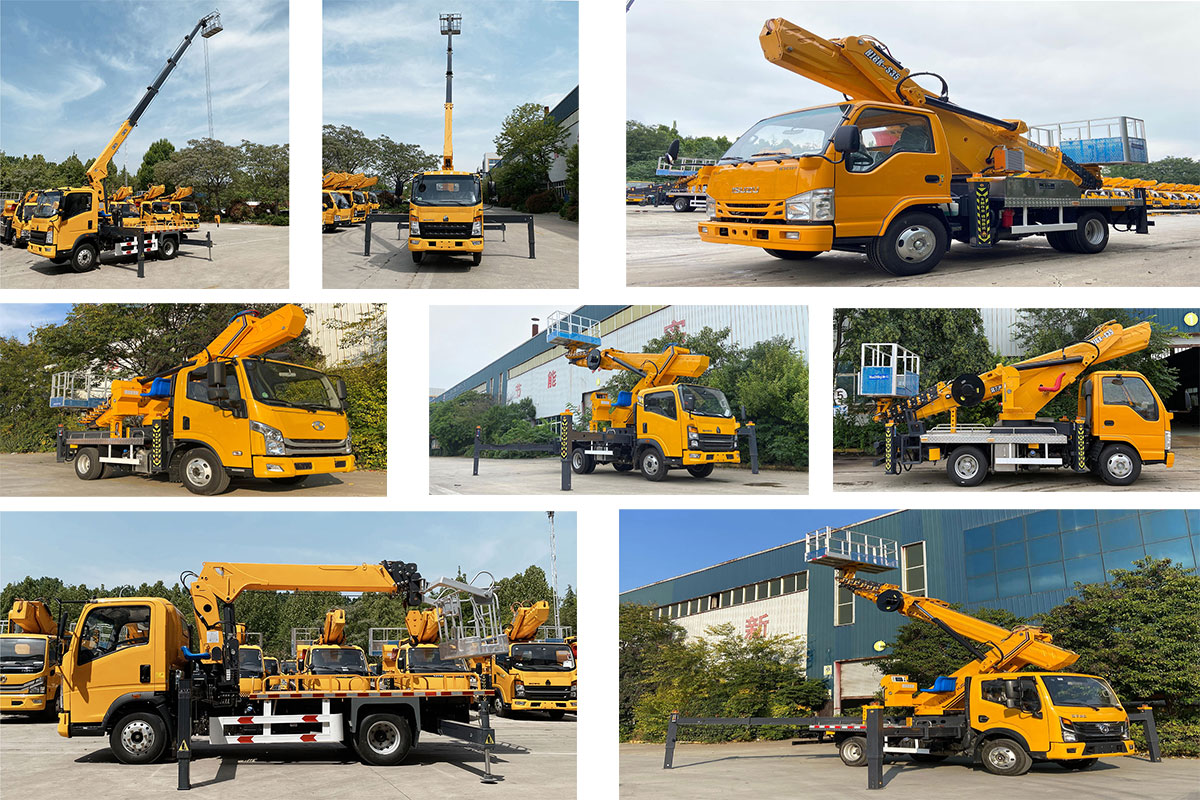

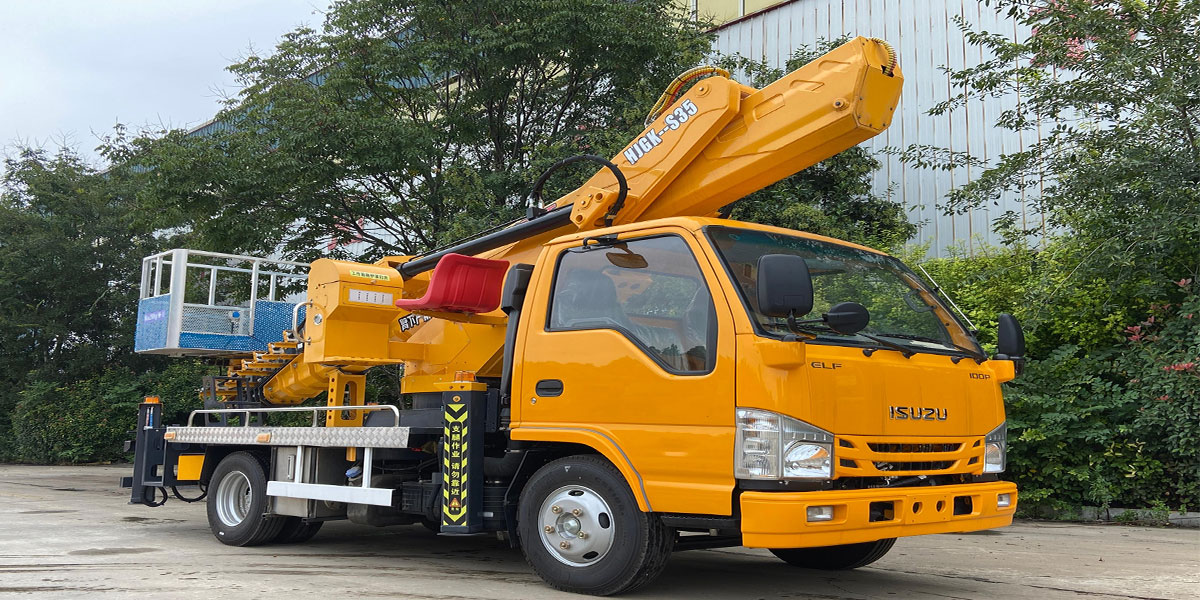

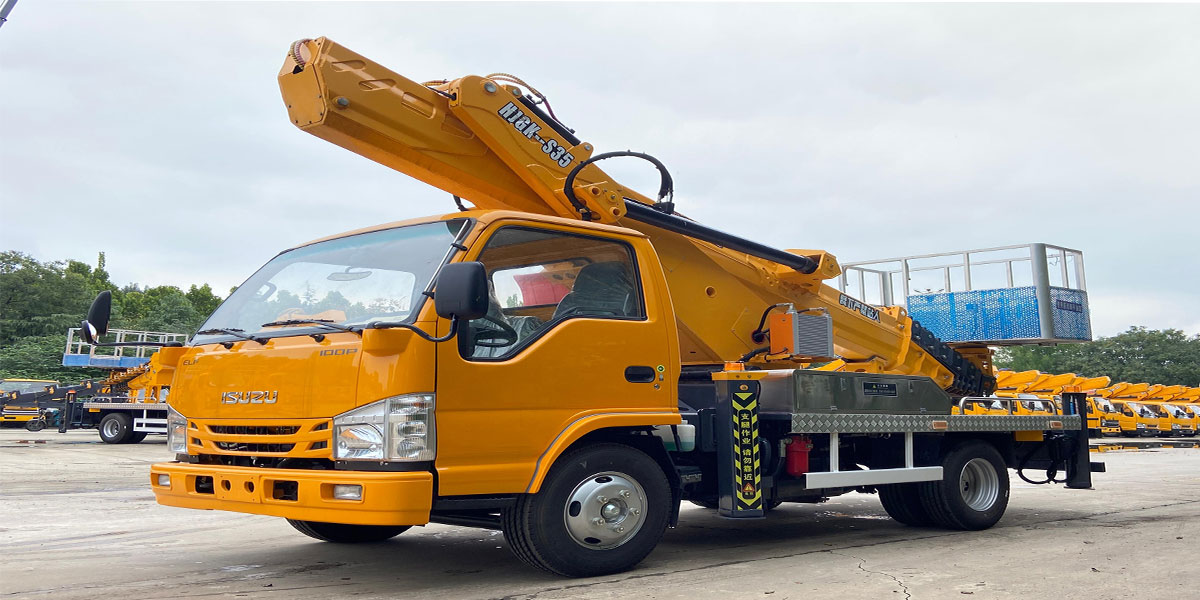

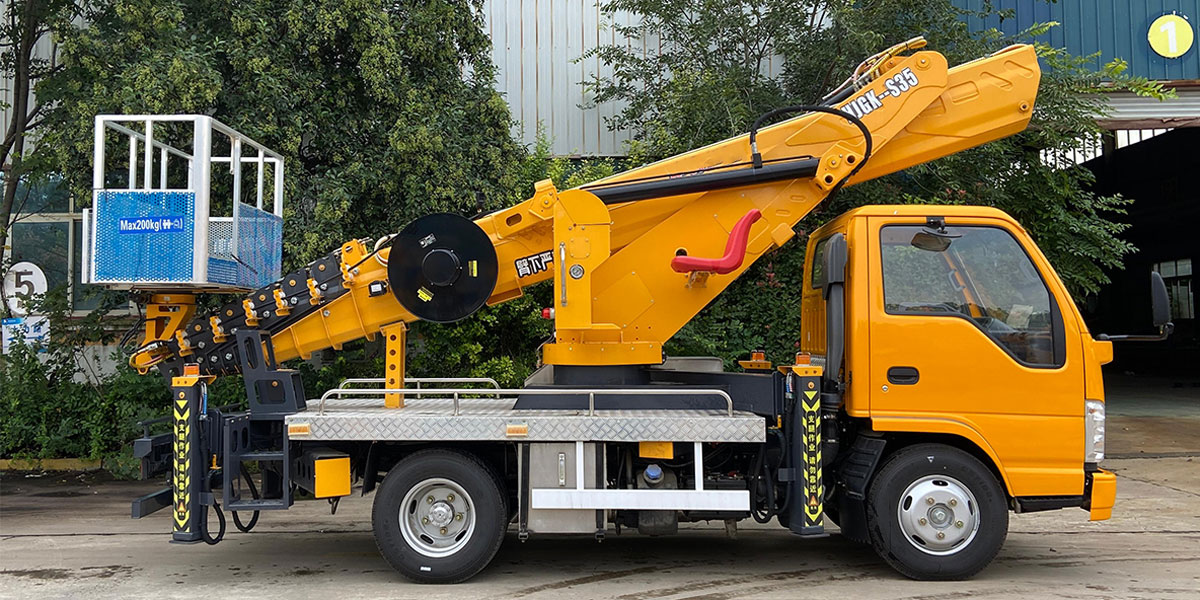

Detailed Photos
