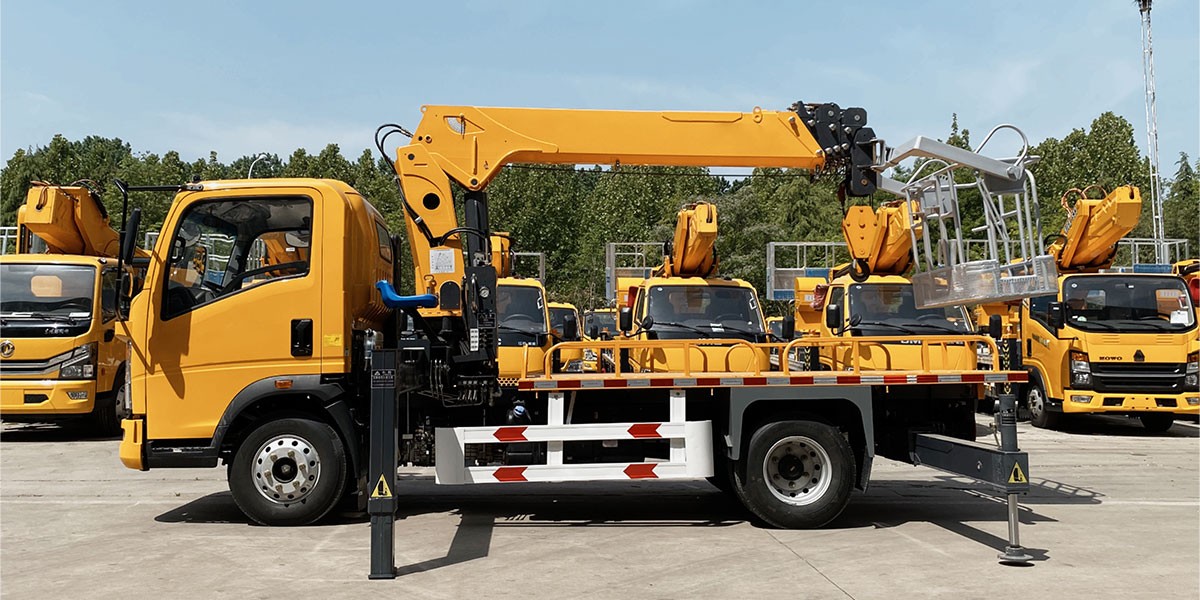

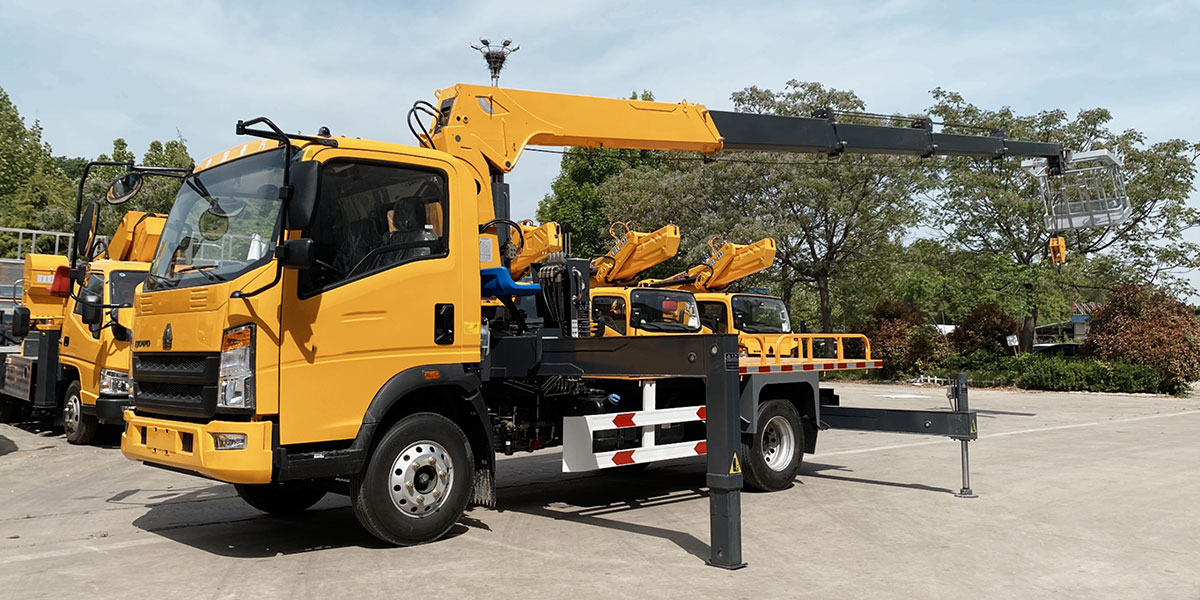

This is a compliant blue-plate multi-functional vehicle that integrates Weichai power, a 6.3-ton heavy lifting capacity, and 15-meter high-altitude operation. With its extreme cost-effectiveness of serving three purposes in one vehicle (lifting, transportation, and high-altitude operation), it has become an all-around and efficient tool in the overseas municipal and engineering markets.
Product Description
Shandong Xinyaheng International Trade Co., Ltd. extends its sincere greetings!
We specialize in the production and customization of high-quality 3-25 ton cranes.
Our mission is to provide customers with cost-effective solutions to maximize their profitability. We are committed to building long-term partnerships and offering highly competitive pricing policies to our long-term partners. We look forward to discussing how to support your business growth.
Product Advantage
Multifunctional: Integrates lifting, transportation, and aerial work (optional) functions, suitable for a wide range of applications.
Reliable Core Configuration: Utilizes a Weichai + Fast powertrain, with globally compatible parts for easy maintenance.
Powerful Performance: 6.3-ton lifting capacity, 5-section boom, 14-meter height, meeting mainstream engineering needs.
Flexible Size: Less than 6 meters in length, suitable for urban operations and convenient for efficient sea transport.
High Cost-Effectiveness and Safety: Equipped with multiple safety features including ABS/ASR, offering high cost-effectiveness and making it an ideal choice for overseas customers.
Product Parameters
| Cab | Howo 1880mm flat-top single-row cab, with air conditioning, power windows, and central locking |
| Engine | Weichai WP2.3Q140E62 |
| Transmission | Quick 8J45TA, with splined power take-off shaft |
| ABS+ASR | Equipped with ABS+ASR (including ASR switch) |
| Battery | 24V dual batteries |
| Brakes | Air brakes |
| Wheelbase | 3280mm |
| Front Axle | 2.0-ton (drum type) |
| Rear Axle | Hande 3.5-ton (standard track) (drum type)/4.875 |
| Frame | 800mm*180mm*65mm*4mm (double layer) |
| Leaf Springs | 3/8+6 |
| Tires | 7.00R16 10PR tubeless tires |
| Weight | 4495KG |
| Current Dimensions | 5995mm*2200mm*2850mm |

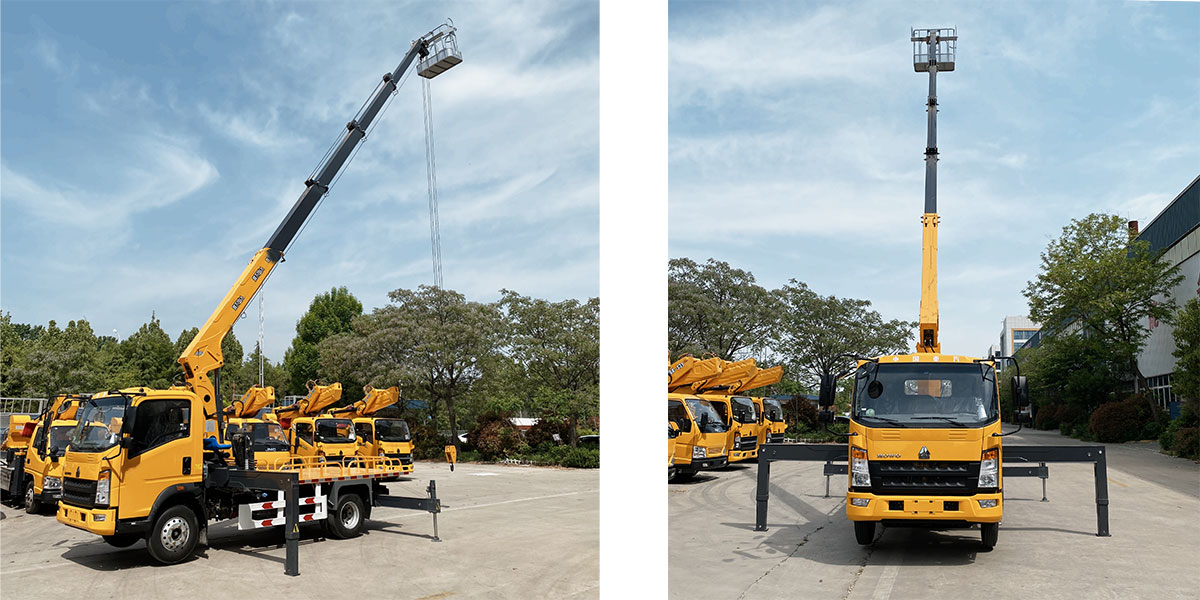

| Maximum Working Height | 15 meters |
| Maximum Working Radius | 12 meters |
| Personnel Platform Rated Load | 200KG |
| Platform Dimensions | 1200mm*600mm*1100mm |
| Platform Slewing Range | Automatic leveling |
| Main Boom | 5-section main boom, 4-section synchronous telescopic boom (with return rope), wire rope extension rod and spare wire rope |
| Outriggers | H-type outriggers, 4 telescopic outriggers, independently adjustable |
| Safety Devices | Interlocking device between upper and lower platforms, limit protection device |
| Maximum Lifting Capacity | 6.3 tons |
| Main Winch | 6.3 tons |
| Main Boom | 5-section main boom |
| Maximum Lifting Height | 14 meters |
| Maximum Working Radius | 12 meters |
| Slewing Mechanism | 360-degree slewing |

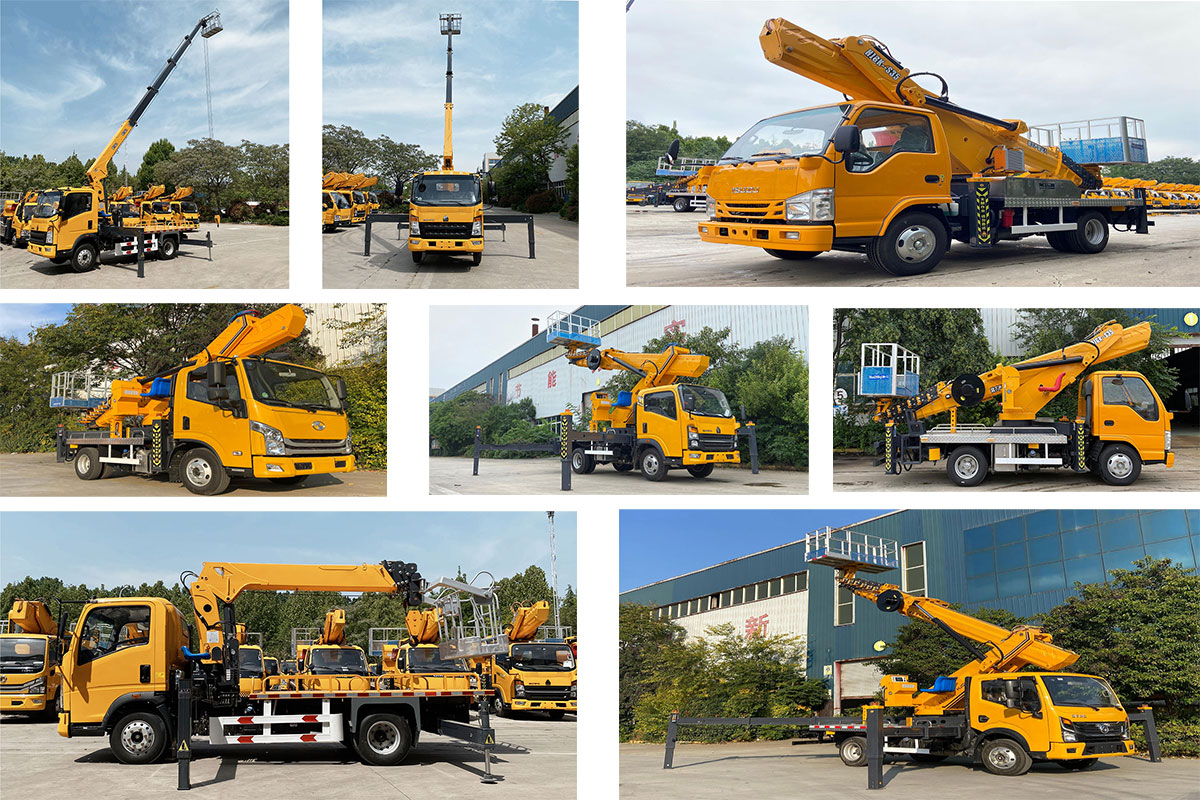

Detailed Photos
