The advantages of the Sinotruk Howo GK38 aerial work platform truck lie in its robust and reliable Sinotruk Howo chassis, which provides excellent stability and a large load capacity. Furthermore, it is equipped with intelligent safety devices and a flexible operating control system, ensuring efficient and safe aerial work operations.
Product Description
Shandong Xinyaheng International Trade Co., Ltd. extends its sincere greetings!
We specialize in the production and customization of high-quality 3-25 ton cranes.
Our mission is to provide customers with cost-effective solutions to maximize their profitability. We are committed to building long-term partnerships and offering highly competitive pricing policies to our long-term partners. We look forward to discussing how to support your business growth.
Product Advantage
The Sinotruk Howo GK38 aerial work platform truck boasts the advantage of utilizing a reliable, specially designed Sinotruk Howo chassis and a powerful Weichai engine. It is equipped with a domestically leading 36-meter, eight-section boom, an aircraft-grade aluminum work platform, two variable-amplitude cylinders, and X-type hydraulic stabilizers, among other advanced features, achieving a perfect combination of ultra-long working height, wide working range, and excellent safety and stability.
Product Parameters
| Vehicle Series | Sinotruk Howo Aerial Work Platform Chassis |
| Cabin | Power steering, air conditioning, central locking, power windows |
| Engine | Weichai WP2.3Q140E62 |
| Transmission | [Optional] Wanliyang 5-speed/8-speed |
| Battery | 24V dual batteries |
| Wheelbase | 3280mm |
| Leaf Spring Count | 3/5+3 |
| Tire Specifications | 7.00R16LT 10PR |
| Brakes | Air brakes |
| Overall Dimensions | 5995mm*2200mm*3250mm |
| Gross Vehicle Weight | 4495KG |
| Upper Structure | GK38 type |
| Maximum Working Height | 36M |
| Maximum Working Radius | Safety limit 18M/Maximum radius 24M |
| Platform Rated Load | 200KG |
| Boom Slewing Angle | 360 degrees |
| Working Boom | Baosteel 960, 14-section eight-section boom, seven-section synchronous telescopic boom, double wire rope |
| Luffing Cylinder | [Domestic leading brand] Thickened type Dual Luffing Cylinders |
| Slewing Support | [Top Domestic Brand] 25-inch horizontal slewing cylinder, 9-inch suspended basket slewing cylinder |
| Hydraulic Drum | [Top Domestic Brand] Composite hydraulic drum, integrated oil pipe and cable conduit |
| Operating System | Optional [Cyber, Jinglian] electronic control system, wireless remote control, intelligent electronic control for upper structure |
| Hydraulic Outriggers | X-shaped outriggers, four double-section hydraulic outriggers, individually adjustable |
| Work Basket | Aviation aluminum |
| Platform Dimensions | 1800mm*700mm*1150mm [Customizable] |
| Platform Slewing Range | 360-degree infinite rotation |
| Hydraulic System | Electro-hydraulic proportional valve, stepless speed adjustment, equipped with emergency power source |
| Hydraulic Valves | [Same as a certain project] Undercarriage multi-way valve, telescopic/luffing balance valve, center slewing valve |
| Walkway | Thickened anti-slip walkway made of aviation aluminum |
| Safety Devices | Undercarriage interlock, emergency pump, two-way hydraulic balance valve, explosion-proof valve |

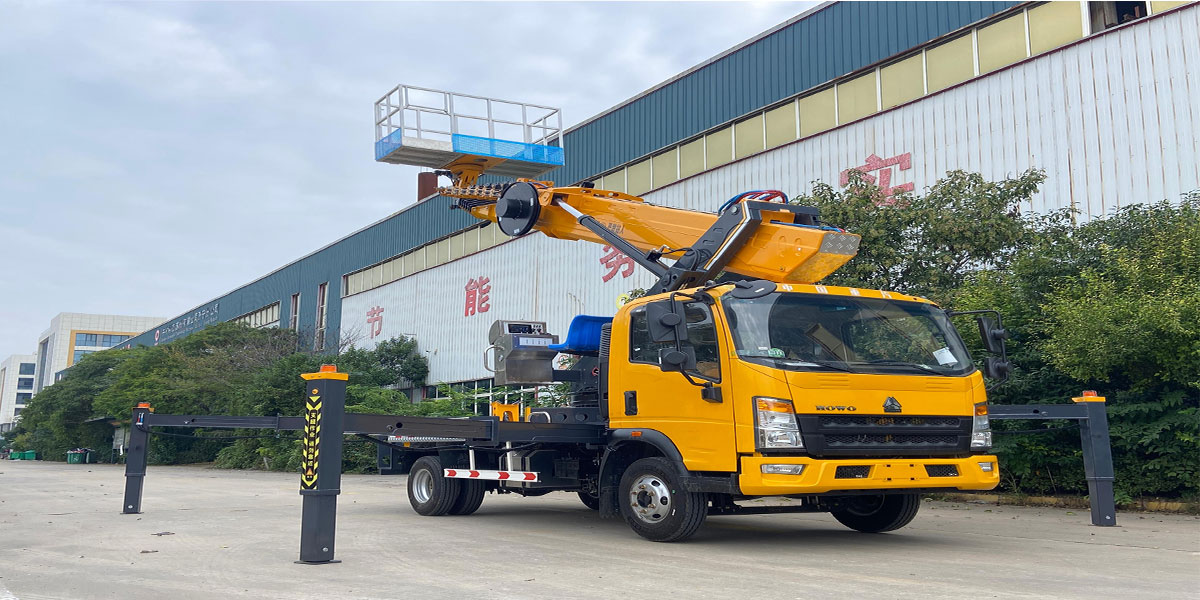

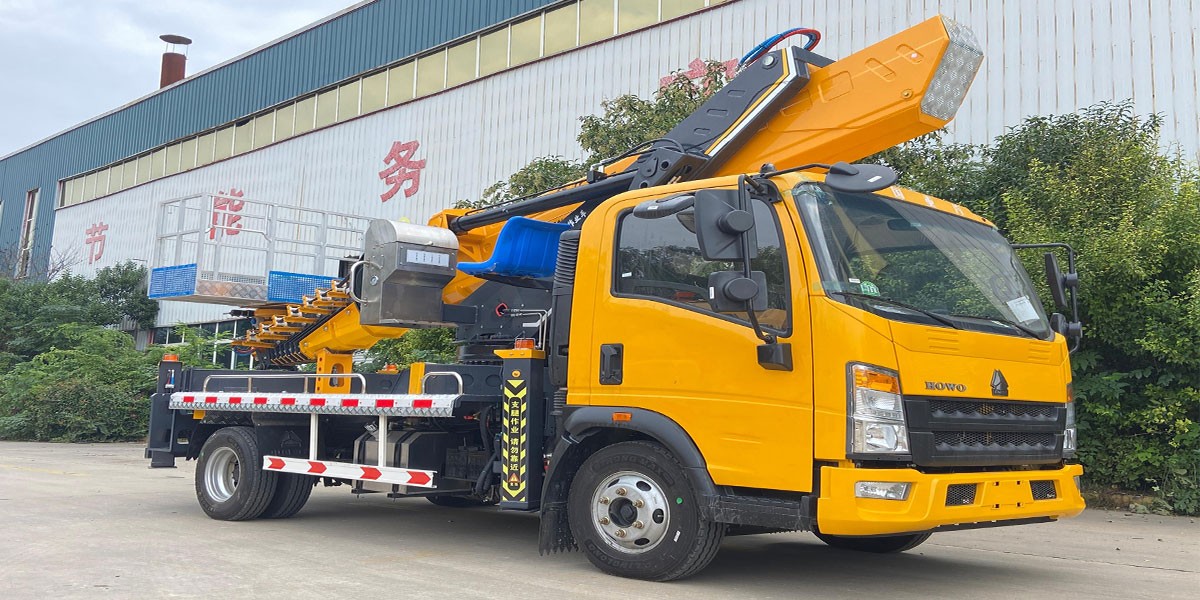

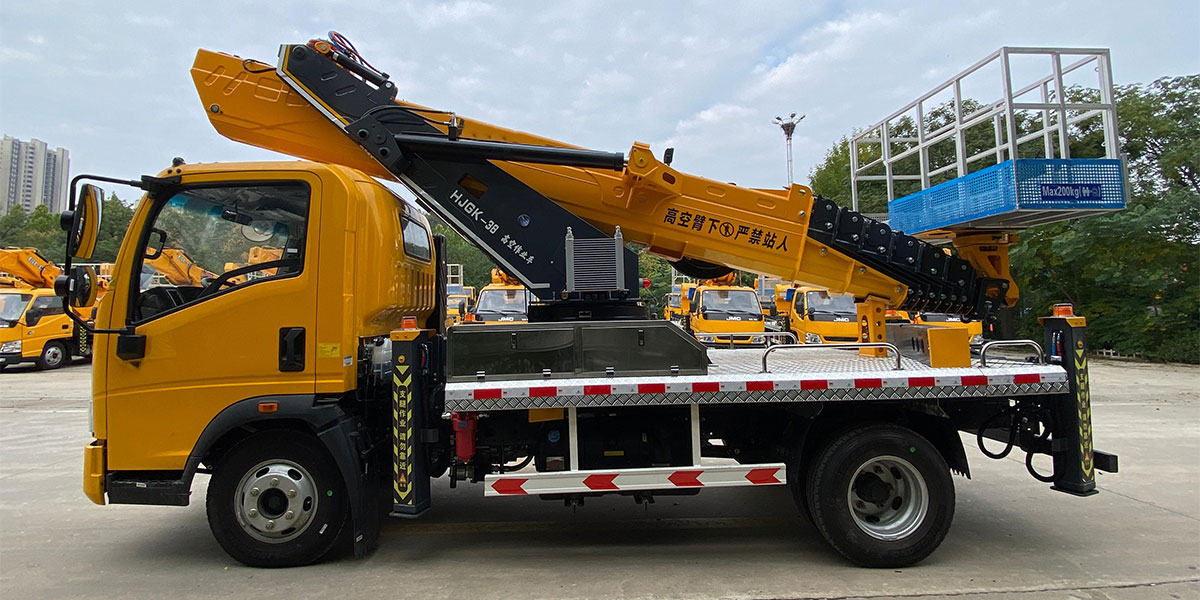

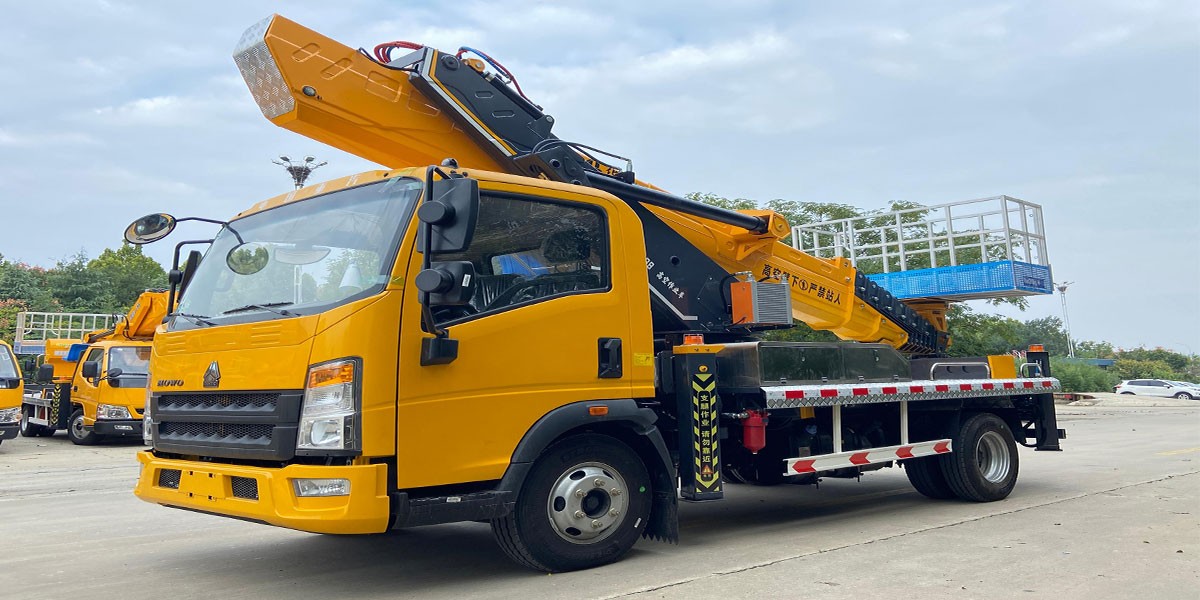

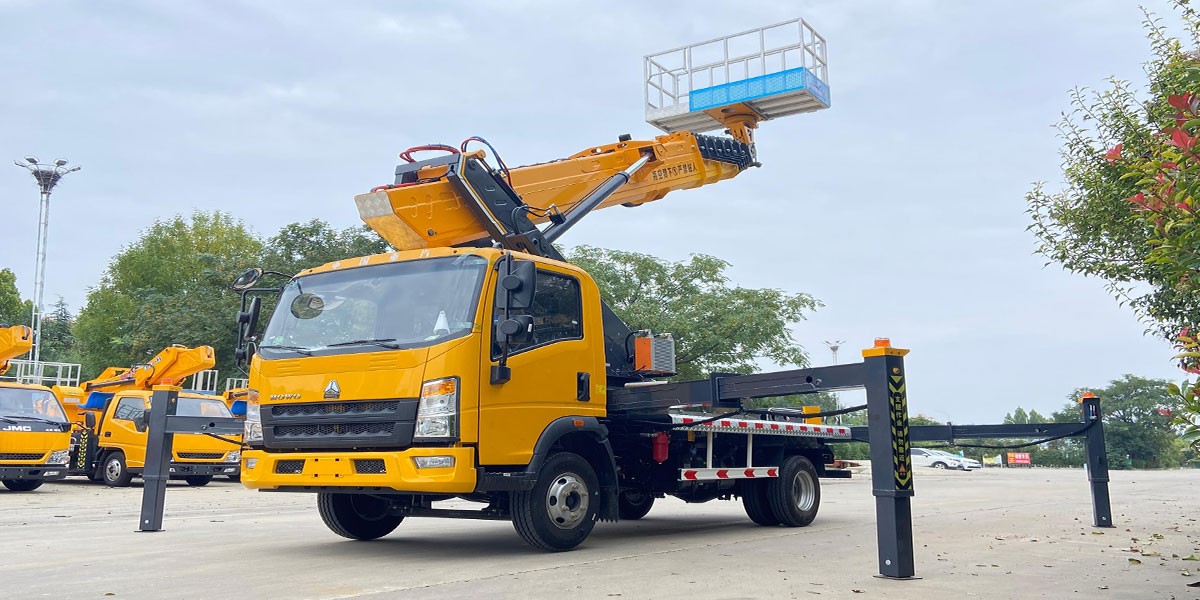

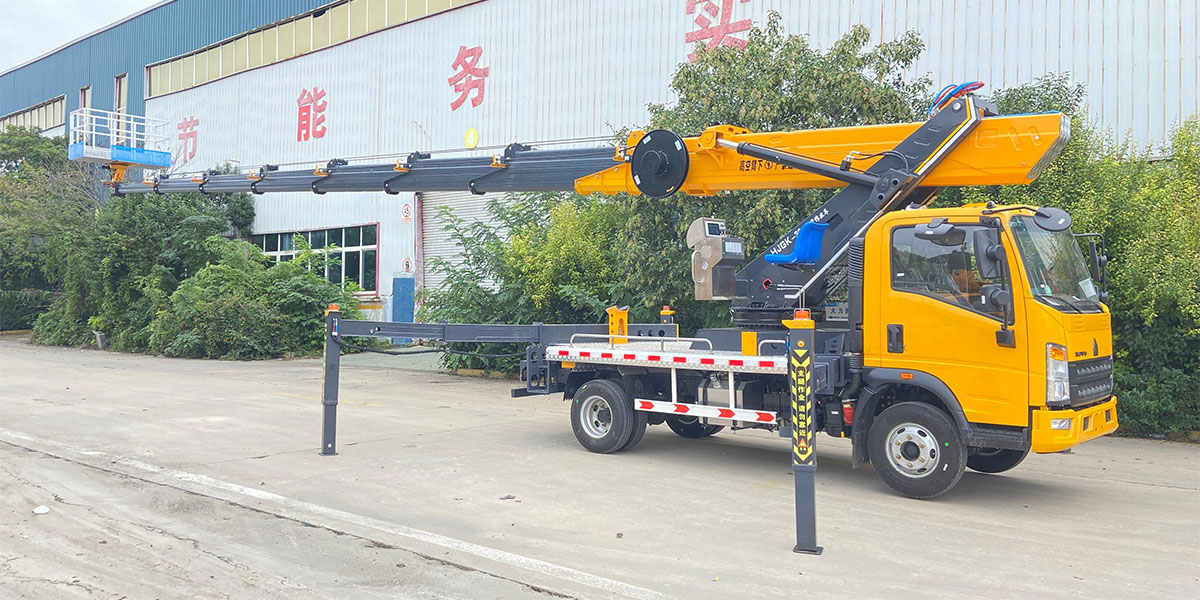

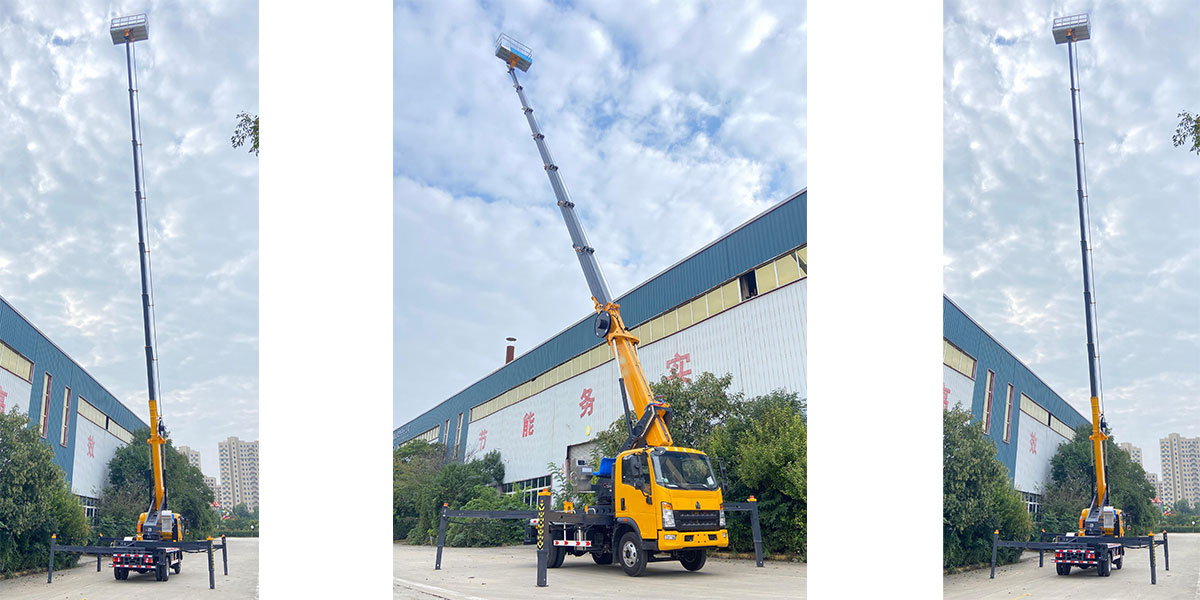

Detailed Photos
