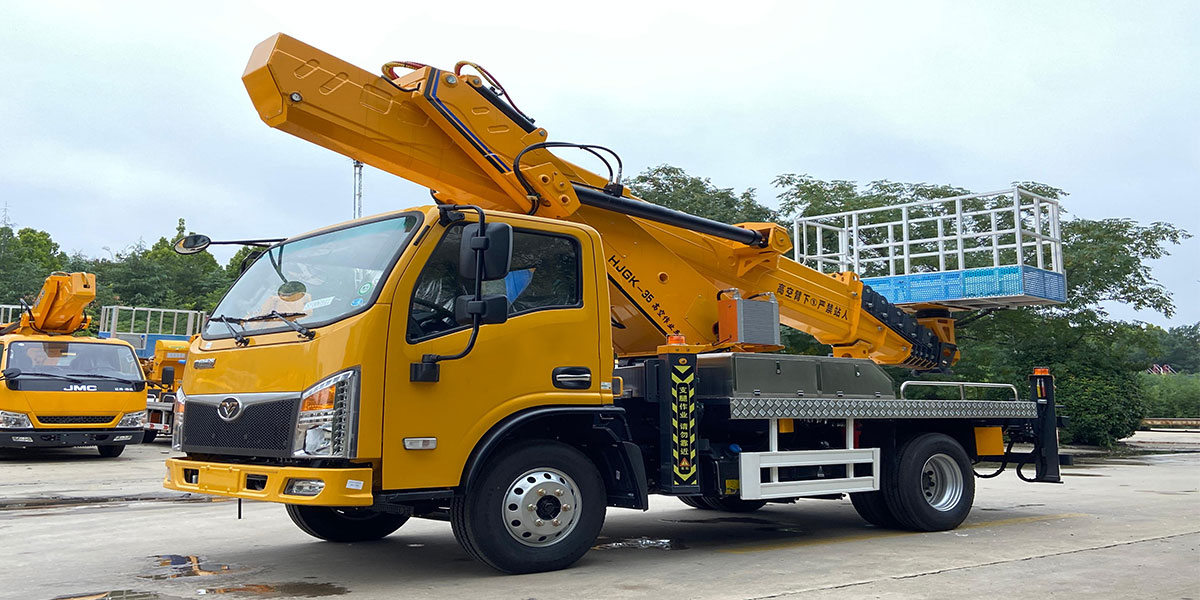

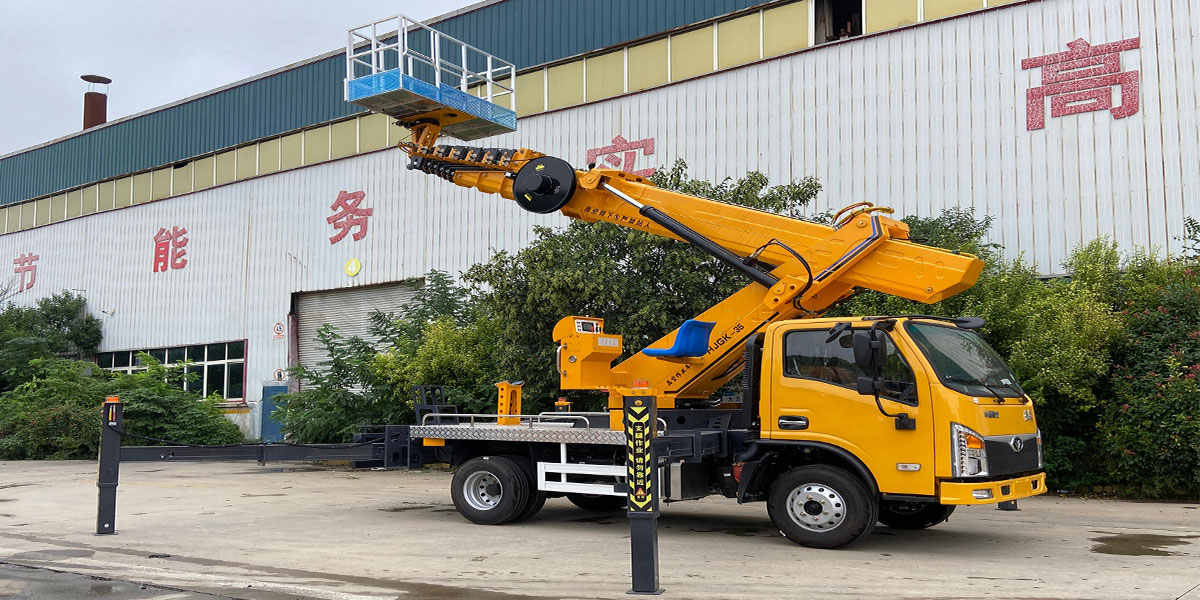

The Sinotruk Howo GK35 aerial work platform truck, with its globally reliable SINOTRUK chassis and powerful 142 horsepower engine, boasts a working height of 33.3 meters within a compact body. Equipped with a Baosteel 960 high-strength steel boom and a fully intelligent electro-hydraulic control system, it is an ideal choice for overseas markets seeking high cost-effectiveness, high stability, and excellent mobility.
Product Description
Shandong Xinyaheng International Trade Co., Ltd. extends its sincere greetings!
We specialize in the production and customization of high-quality 3-25 ton cranes.
Our mission is to provide customers with cost-effective solutions to maximize their profitability. We are committed to building long-term partnerships and offering highly competitive pricing policies to our long-term partners. We look forward to discussing how to support your business growth.
Product Advantage
SINOTRUK GK35: High-Reach & High-Reliability
Global Reputation: Built on the durable SINOTRUK chassis with a powerful 142HP engine, ensuring easy maintenance worldwide.
Extreme Reach: Reaches 33.3m using ultra-strong Baosteel 960 steel, offering industry-leading height in a compact body.
Smart Control: Features Electro-hydraulic proportional valves for smooth, precise movement via wireless remote control.
Superior Stability: X-type outriggers (6.1m span) and aviation-grade aluminum platform guarantee safety and corrosion resistance.
Safety First: Fully equipped with emergency pumps, interlock systems, and explosion-proof valves for international compliance.
Product Parameters
| Vehicle Series | Sinotruk Howo Aerial Work Platform Chassis |
| Chassis Model | ZZ1048G17FB5 |
| Cabin | Power Steering, Air Conditioning, Central Locking, Power Windows and Doors |
| Engine | Quanchai Q23-142E60 |
| Transmission | WLY5G32 |
| Wheelbase | 2950mm |
| Front Axle | 2.5T |
| Rear Axle | 4.5T |
| Tire Specification | 7.00RI6LT |
| Fuel Tank | 100L Iron |
| Brakes | Air Brake |
| Overall Dimensions | 5998mm*2050mm*3250mm |
| Gross Vehicle Weight | 4495KG |
| Superstructure | GK35 Type |
| Maximum Working Height | 33.3M |
| Maximum Working Radius | Safety Limit 18M/Maximum Radius 22M |
| Platform Rated Load | 200KG |
| Boom Slewing Angle | 360 Degrees |
| Working Boom | Baosteel 960 14-section seven-section boom, six-section synchronous telescopic boom, double steel wire rope |
| Luffing cylinder | Thickened double luffing cylinder |
| Slewing bearing | 21-inch horizontal slewing bearing |
| Hydraulic drum | Composite hydraulic drum, oil pipe and cable conduit combined |
| Operating system | Optional [Cyber, Jinglian] electrical control system, wireless remote control, intelligent electrical control for upper structure |
| Hydraulic outriggers | X-shaped outriggers, four double-section hydraulic outriggers, individually adjustable |
| Work basket | Aviation aluminum |
| Platform dimensions | 1600mm*700mm*1150mm [Customizable] |
| Platform slewing range | 360-degree infinite rotation |
| Hydraulic system | Electro-hydraulic proportional valve, stepless speed adjustment, equipped with emergency power source |
| Hydraulic valves | Undercarriage multi-way valve, telescopic/luffing balance valve, center slewing valve |
| Walkway | Thickened anti-slip walkway made of aviation aluminum |
| Safety devices | Undercarriage interlock, emergency pump, two-way hydraulic balance valve, explosion-proof valve |

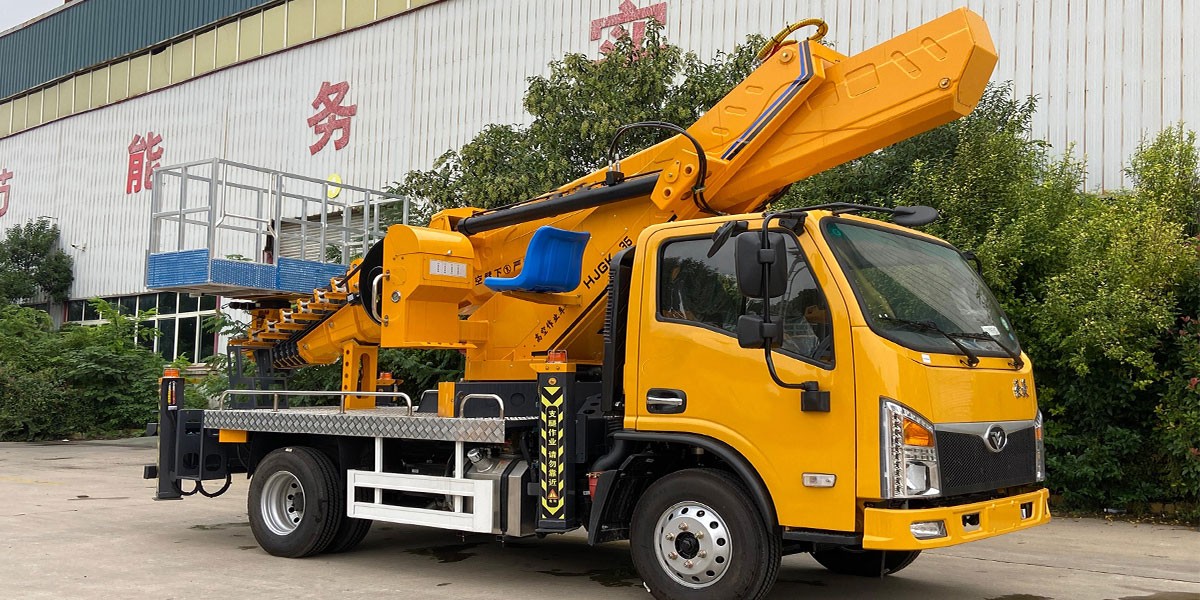

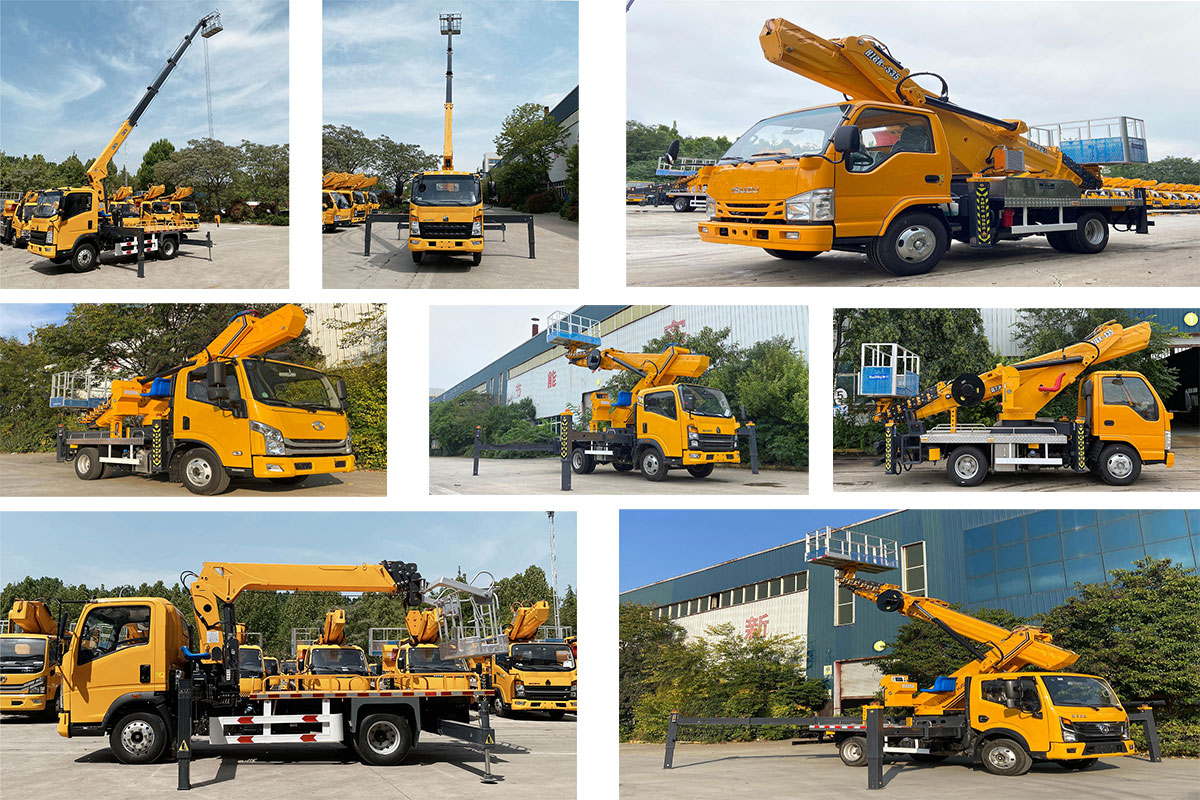

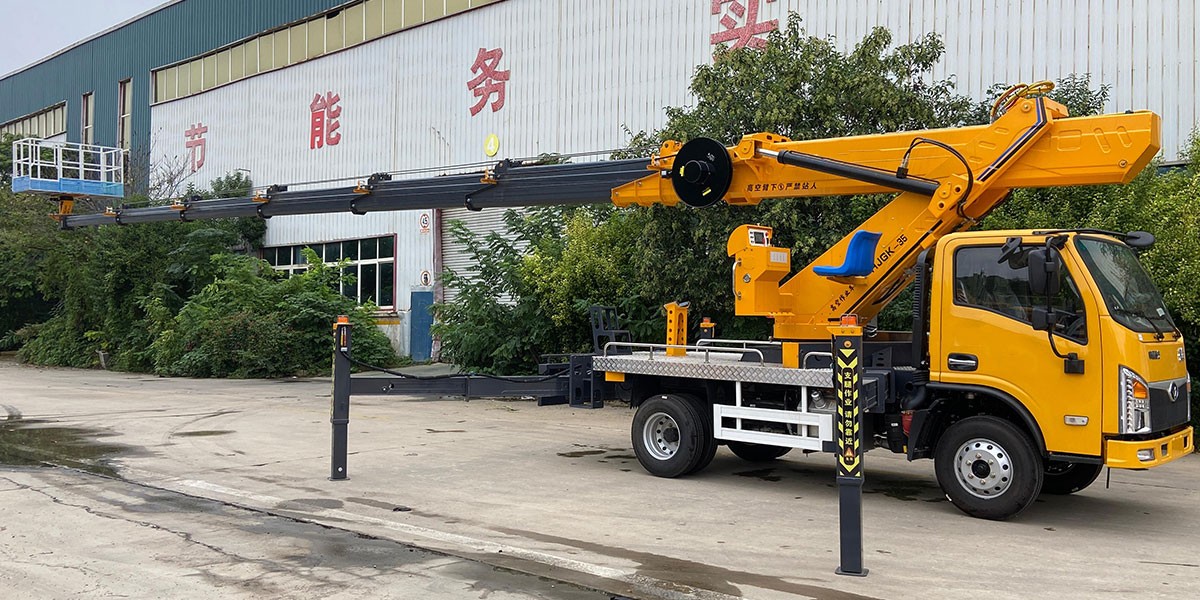

Detailed Photos
