The Dongfeng Dolica GK38 aerial work platform truck's advantages lie in its combination of Dongfeng's robust and reliable chassis and Yuchai's powerful engine, equipped with a seven-section boom with an ultra-high working range of 38 meters, and achieving class-leading high load-bearing capacity and excellent operational stability through a 400KG heavy-duty platform and wide-span X-shaped outriggers.
Product Description
Shandong Xinyaheng International Trade Co., Ltd. extends its sincere greetings!
We specialize in the production and customization of high-quality 3-25 ton cranes.
Our mission is to provide customers with cost-effective solutions to maximize their profitability. We are committed to building long-term partnerships and offering highly competitive pricing policies to our long-term partners. We look forward to discussing how to support your business growth.
Product Advantage
It adopts a Yuchai 165 horsepower engine and a Dongfeng Dolica D7 special chassis, with a total mass of 12 tons and 16PR high load-bearing tires, providing strong load-bearing capacity and reliable driving performance. In terms of the superstructure, the maximum working height of 38 meters and the maximum working radius of 24 meters have reached the industry-leading level. Combined with a 400KG heavy load platform, a 33-inch dual reducer slewing mechanism and a 7-meter long-span X-type outriggers, it ensures extremely safe, stable and efficient high-altitude operation capabilities.
Product Parameters
| Vehicle Series | Dongfeng Dolica D7 Aerial Work Platform Chassis |
| Cabin | Power steering, air conditioning, central locking, power windows |
| Engine | YCY30165-60 Yuchai 165hp |
| Battery | Two 24V batteries |
| Wheelbase | 3800mm |
| Leaf Spring Count | 8/10+7 |
| Tire Specifications | 245/70R19.5 16PR |
| Brakes | Air brakes |
| Overall Dimensions | 7930mm*2385mm*3350mm |
| Gross Vehicle Weight | 11995KG |
| Upper Structure | GK38 type |
| Maximum Working Height | 38M |
| Maximum Working Radius | Safety limit 22M/Maximum radius 24M |
| Platform Rated Load | 400KG |
| Boom Slewing Angle | 360 degrees |
| Working Boom | Baosteel 960, multi-faceted seven-section boom, six-section synchronous telescopic boom, double wire rope |
| Luffing Cylinder | Thickened type Dual Luffing Cylinders |
| Slewing Support | 33-inch dual reducer slewing bearing |
| Operating System | Cyber electronic control system, equipped with wireless remote control, intelligent electronic control system |
| Hydraulic Outriggers | X-shaped outriggers, four double-section hydraulic outriggers, individually adjustable |
| Outrigger Span | Lateral span 6400mm, longitudinal span 7000mm |
| Work Basket | Aviation aluminum |
| Platform Dimensions | 2000/2800mm*700mm*1150mm |
| Platform Rotation Range | 360-degree unlimited rotation |
| Hydraulic System | Electro-hydraulic proportional valve, stepless speed adjustment, equipped with emergency power source |
| Walkway | Thickened anti-slip walkway made of aviation aluminum |
| Safety Devices | Interlock for getting on and off the vehicle, emergency pump, two-way hydraulic balance valve, explosion-proof valve |

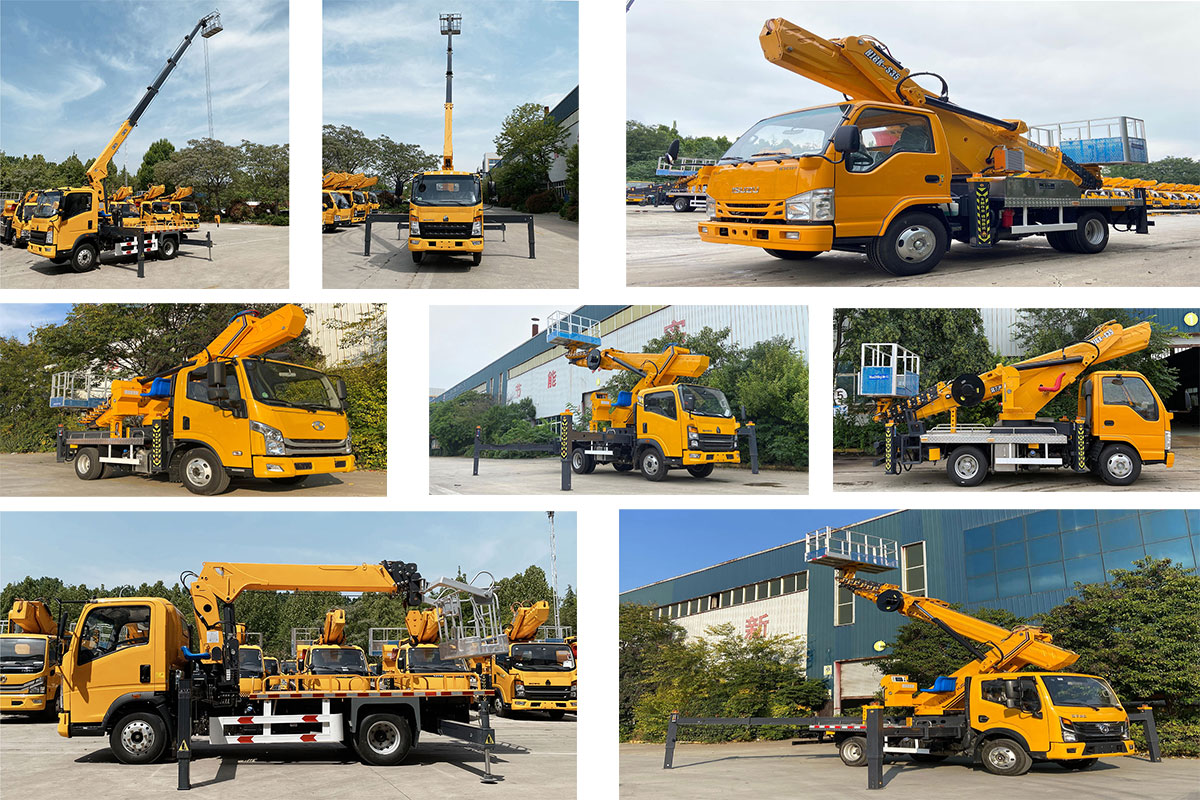

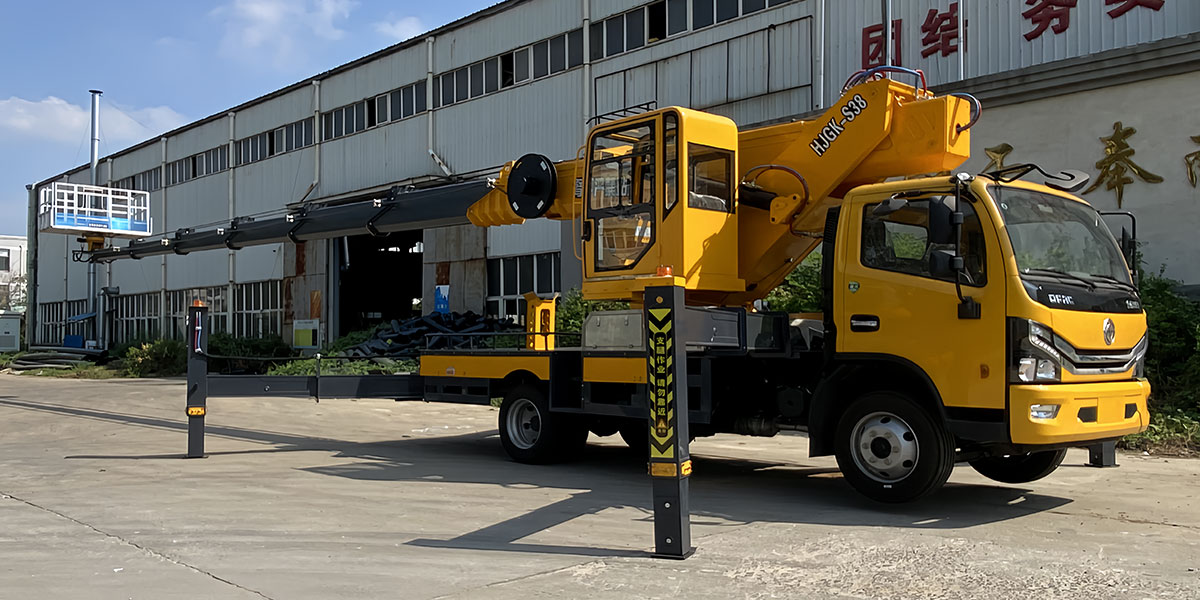

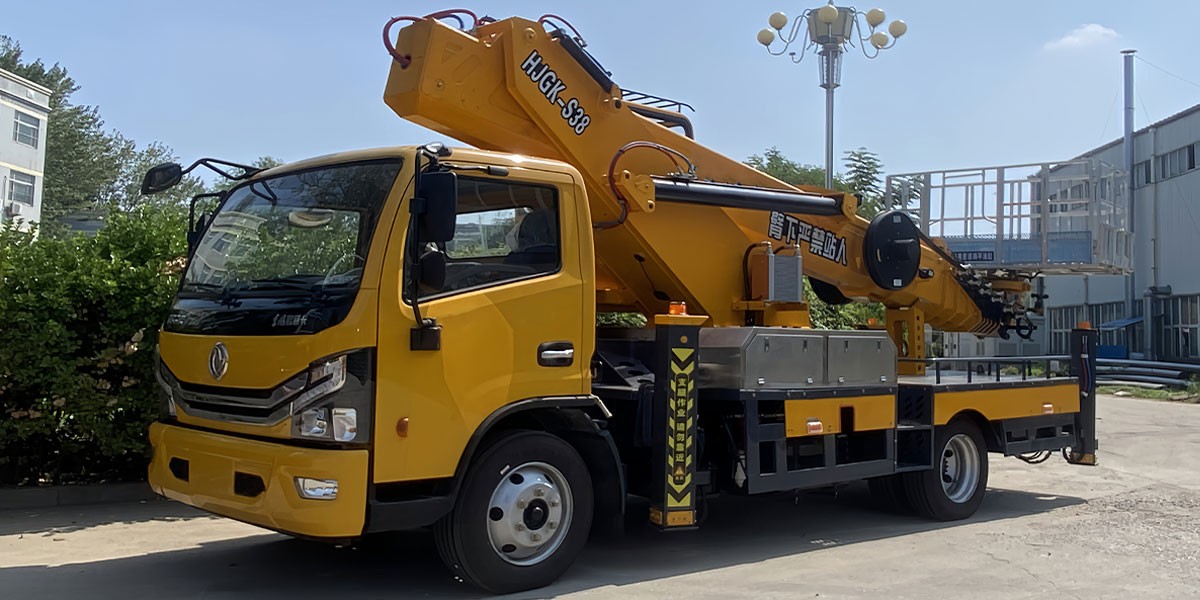

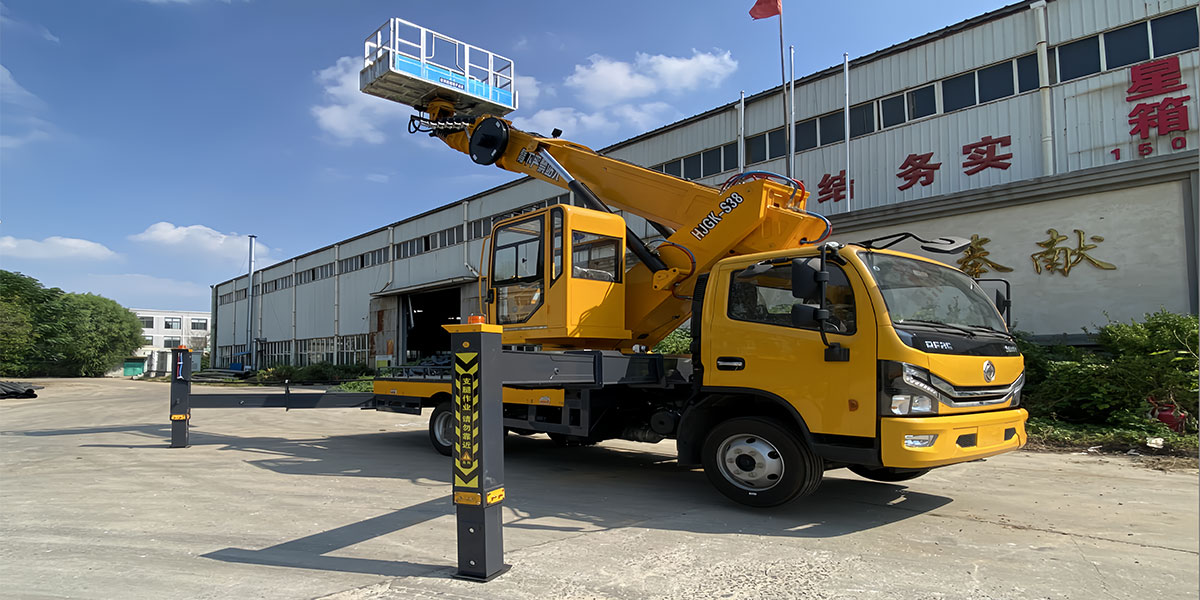

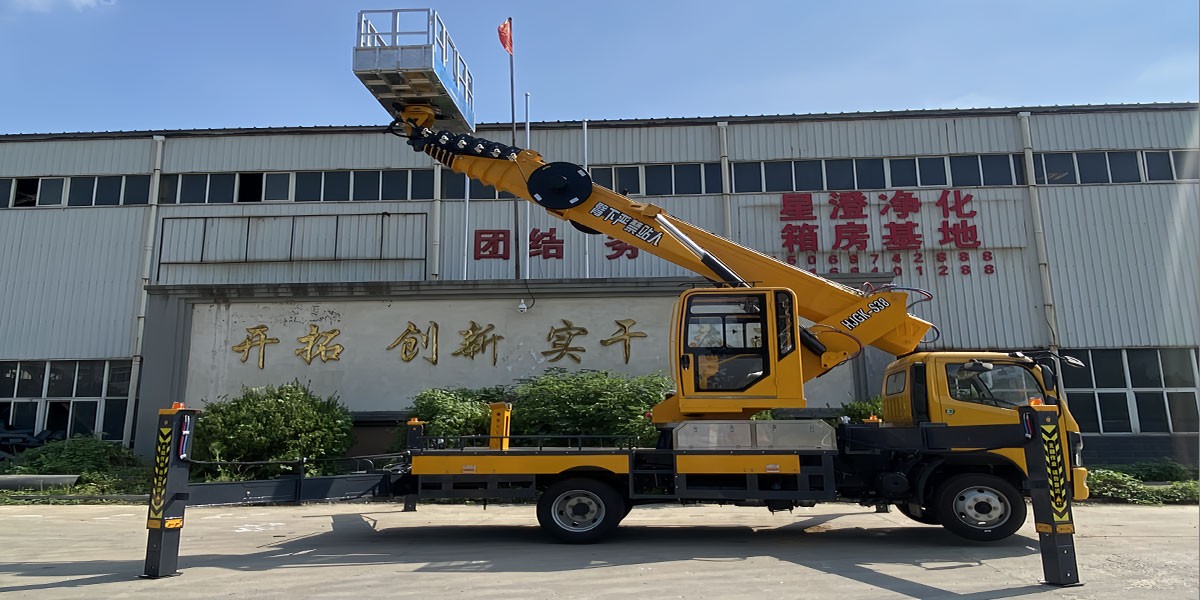

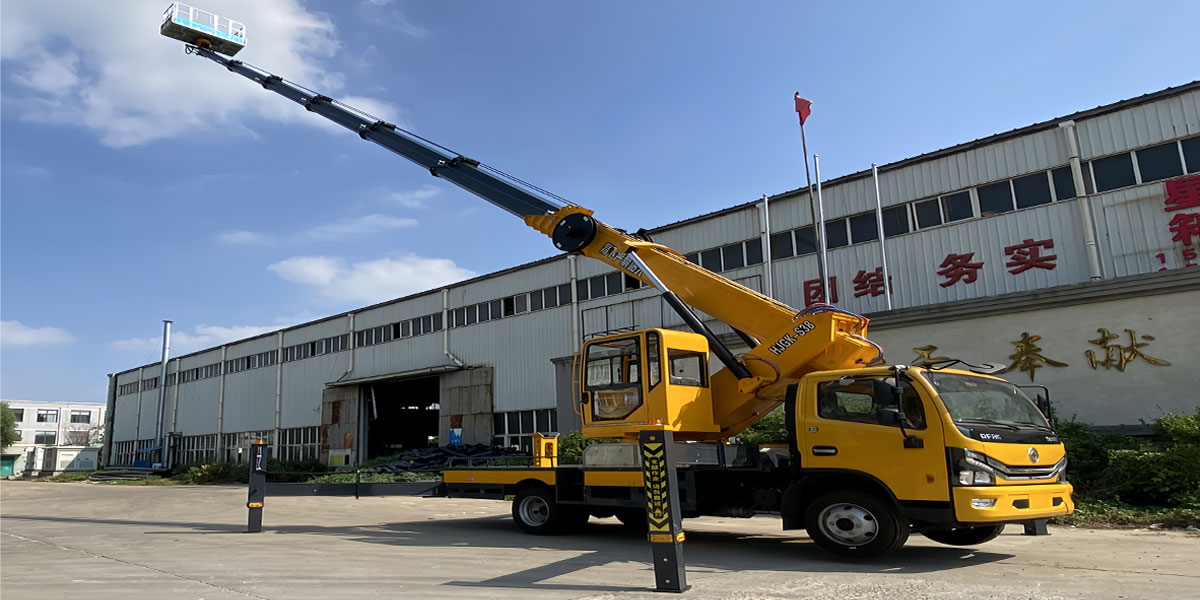

Detailed Photos
