With its industry-leading 33-meter maximum height, lightweight aviation aluminum basket with 360-degree infinite rotation, and a complete set of intelligent safety systems, the Dongfeng Dolica 33.3-meter aerial work platform is the most competitive all-around work platform for high-value municipal and power maintenance projects overseas.
Product Description
Shandong Xinyaheng International Trade Co., Ltd. extends its sincere greetings!
We specialize in the production and customization of high-quality 3-25 ton cranes.
Our mission is to provide customers with cost-effective solutions to maximize their profitability. We are committed to building long-term partnerships and offering highly competitive pricing policies to our long-term partners. We look forward to discussing how to support your business growth.
Product Advantage
Ultra-high operating height: A rare 33.3-meter extreme operating height for blue-plate vehicles, covering the vast majority of high-altitude needs.
Lightweight and high-strength: Utilizes Baosteel 960 high-strength steel boom and aviation-grade aluminum work basket, ensuring durability and corrosion resistance.
Intelligent operation: Equipped with wireless remote control, intelligent electronic control, and electro-hydraulic proportional valves, ensuring precise and stable operation.
Safe and reliable: X-type large-span outriggers, emergency power source, multiple safety valves, and high safety certification standards.
Mature chassis: Dongfeng chassis + Quanchai 150hp engine, globally easy to maintain.
Product Parameters
| Vehicle Series | Dongfeng Dolica Aerial Work Platform Chassis |
| Cabin | Electric windows and doors, air conditioning, central locking, multi-function steering wheel |
| Engine | Q25A-150E60 [Quanchai 150hp] |
| Transmission | Wanliyang 5-speed |
| Battery | 24V dual batteries |
| Wheelbase | 2950mm |
| Displacement | 2496ml |
| Power | 110kw |
| Fuel Tank | 70 liters |
| Tire Specification | 6.50R16 |
| Brakes | Air brake |
| Gross Weight | 4495KG |
| Upper Structure | GK35 type |
| Maximum Working Height | 33.3M |
| Maximum Working Radius | Safety limit 18M/Maximum radius 22M |
| Platform Rated Load | 200KG |
| Boom Slewing Angle | 360 degrees |
| Working Boom | Baosteel 960, 14-section seven-section boom, six-section synchronous telescopic boom, double wire rope |
| Luffing Cylinder | [Domestic leading brand] Thickened type Dual Luffing Cylinders |
| Slewing Support | 21-inch horizontal slewing cylinder (domestic leading brand) |
| Hydraulic Drum | Composite hydraulic drum (domestic leading brand), integrated oil pipe and cable conduit |
| Operating System | Optional Cyber or Jinglian electronic control system, wireless remote control, intelligent electronic control for upper structure |
| Hydraulic Outriggers | X-shaped outriggers, four double-section hydraulic outriggers, individually adjustable |
| Outrigger Span | 6100mm lateral span, 5500mm longitudinal span |
| Work Basket | Aviation aluminum |
| Platform Dimensions | 1600mm*700mm*1150mm (customizable) |
| Platform Slewing Range | 360-degree infinite rotation |
| Hydraulic System | Electro-hydraulic proportional valve, stepless speed adjustment, equipped with emergency power source |
| Hydraulic Valves | (same as a certain project) multi-way valve for lowering, telescopic/luffing balance valve, center slewing valve |
| Walkway | Thickened anti-slip walkway made of aviation aluminum |
| Safety Devices | Interlock for upper and lowering, emergency pump, two-way hydraulic balance valve, explosion-proof valve |

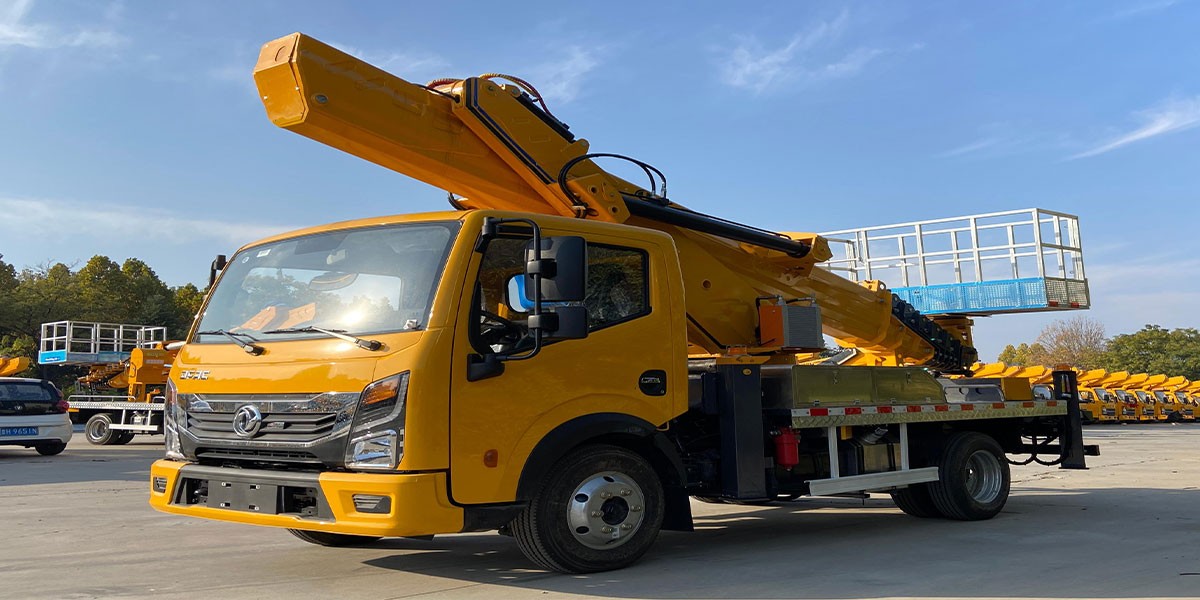

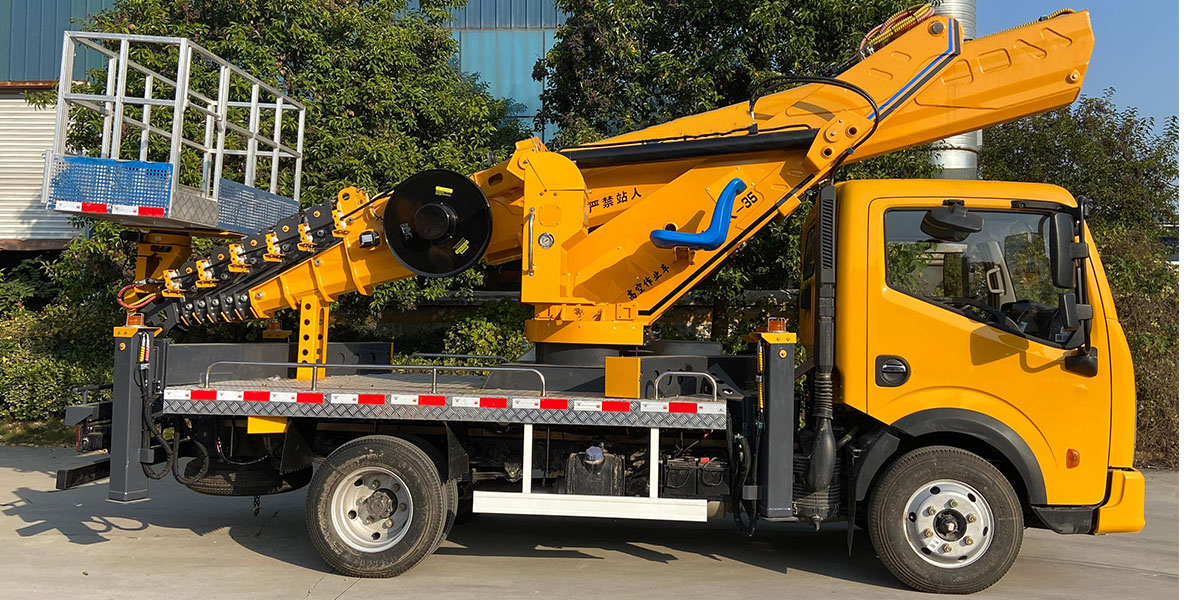

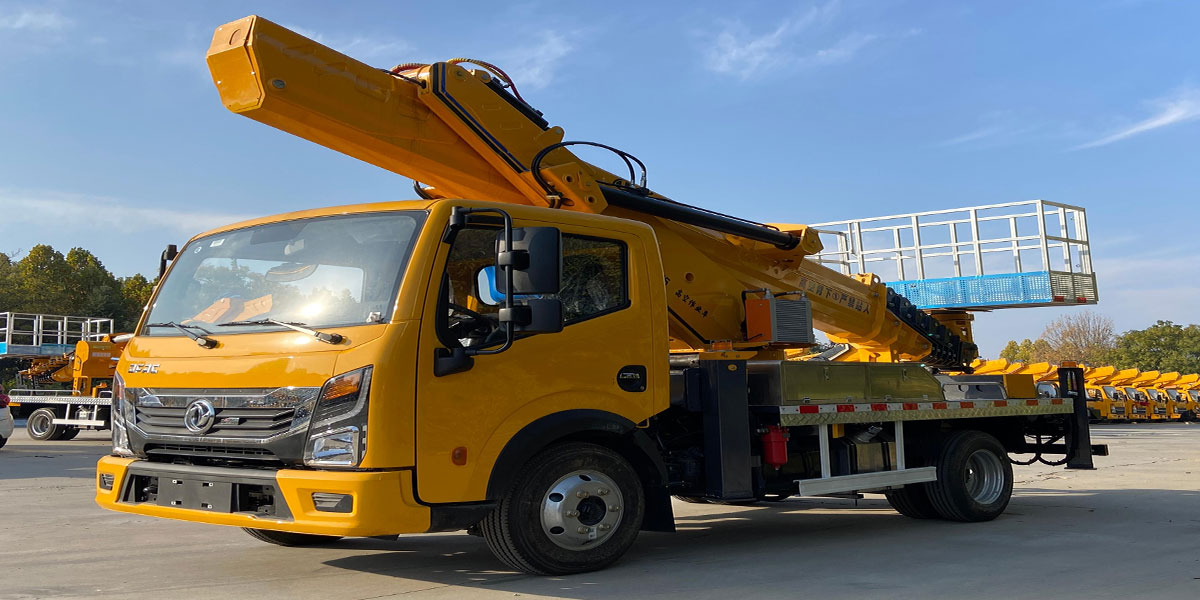

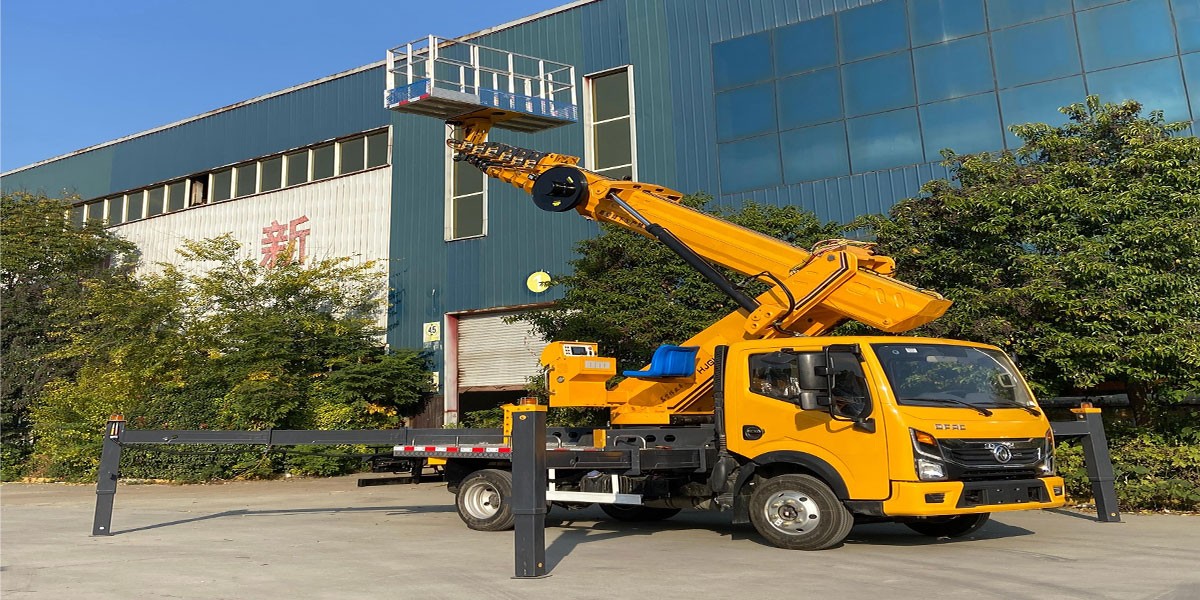

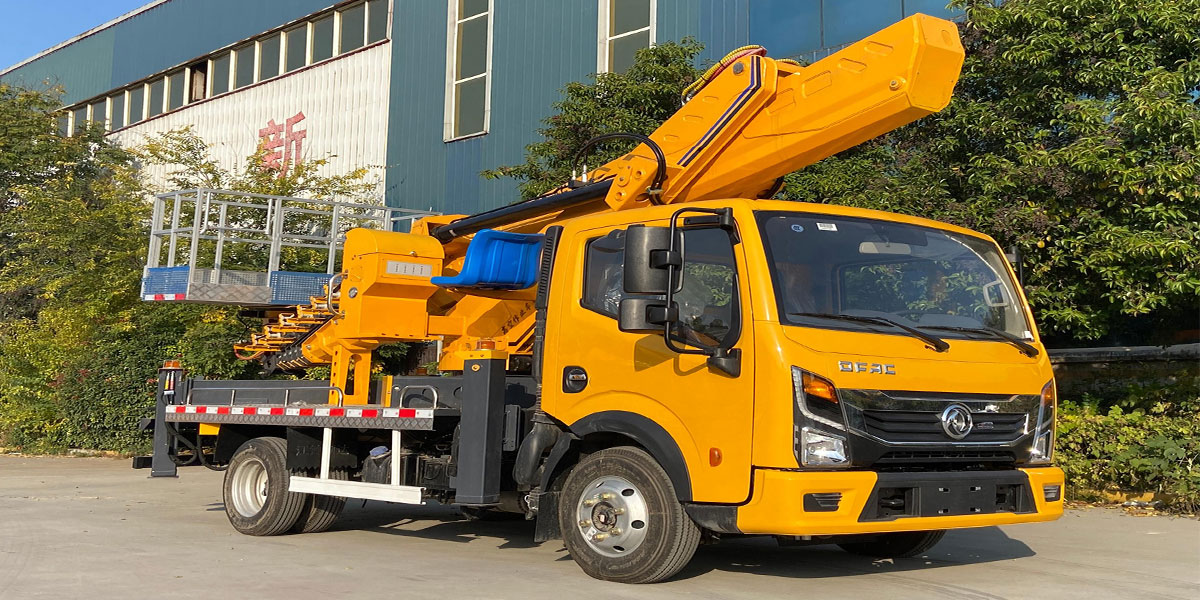

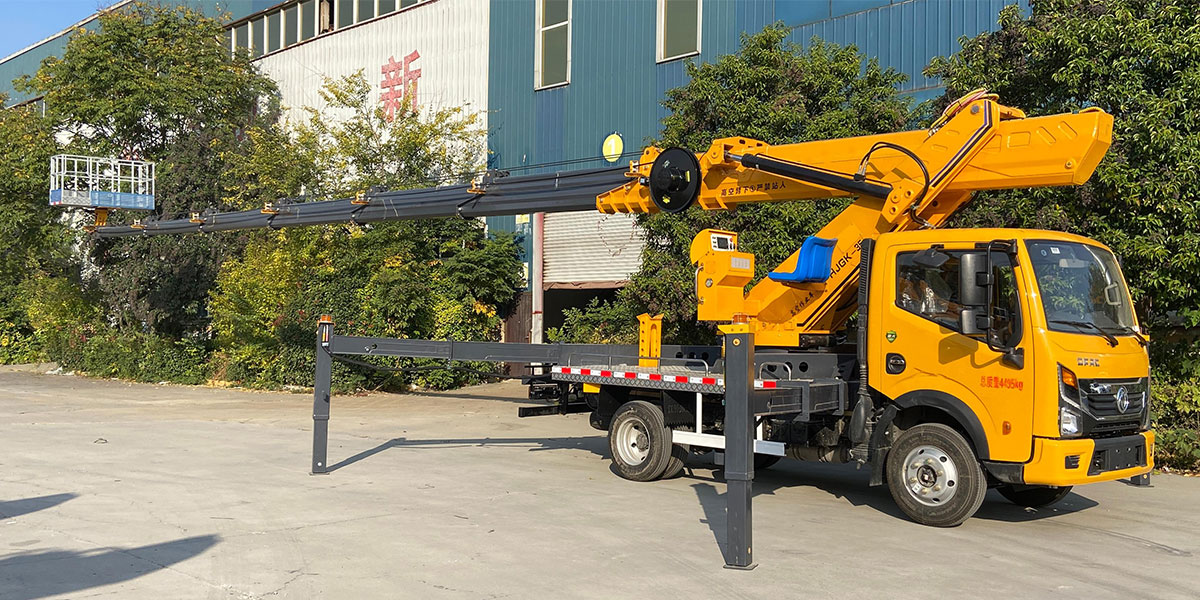

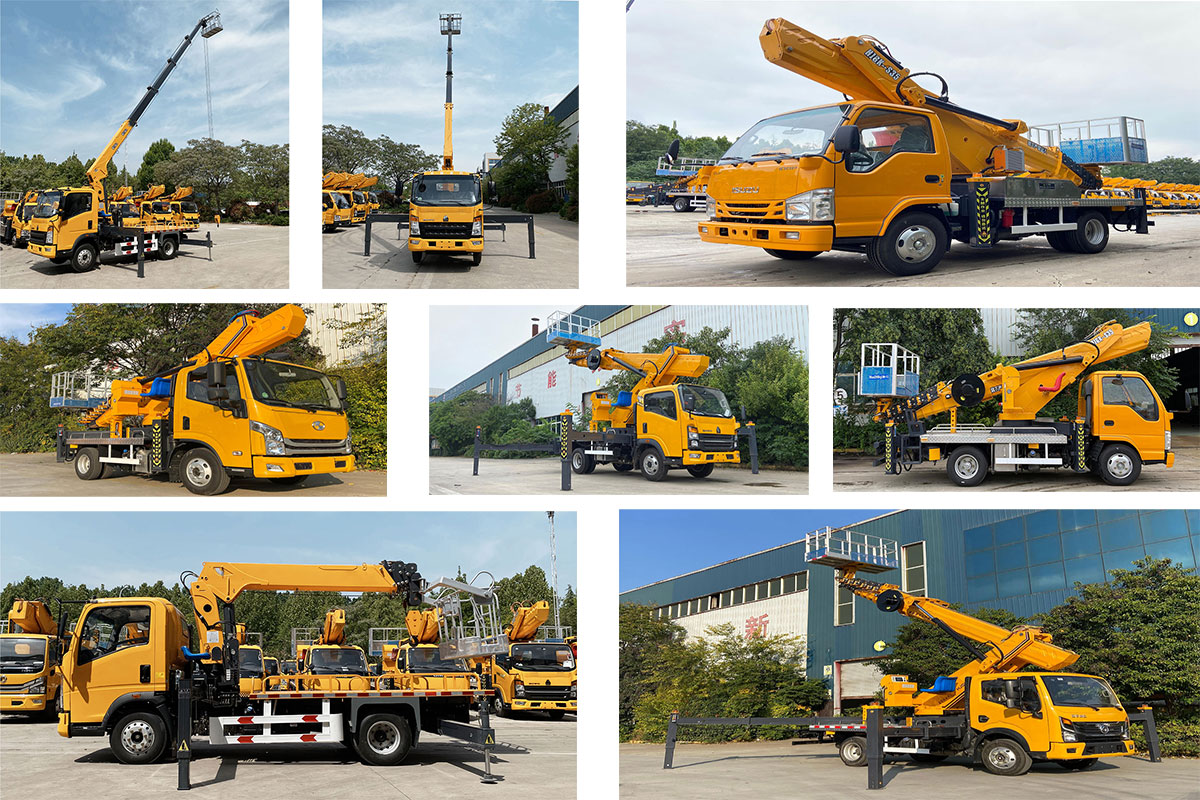

Detailed Photos
