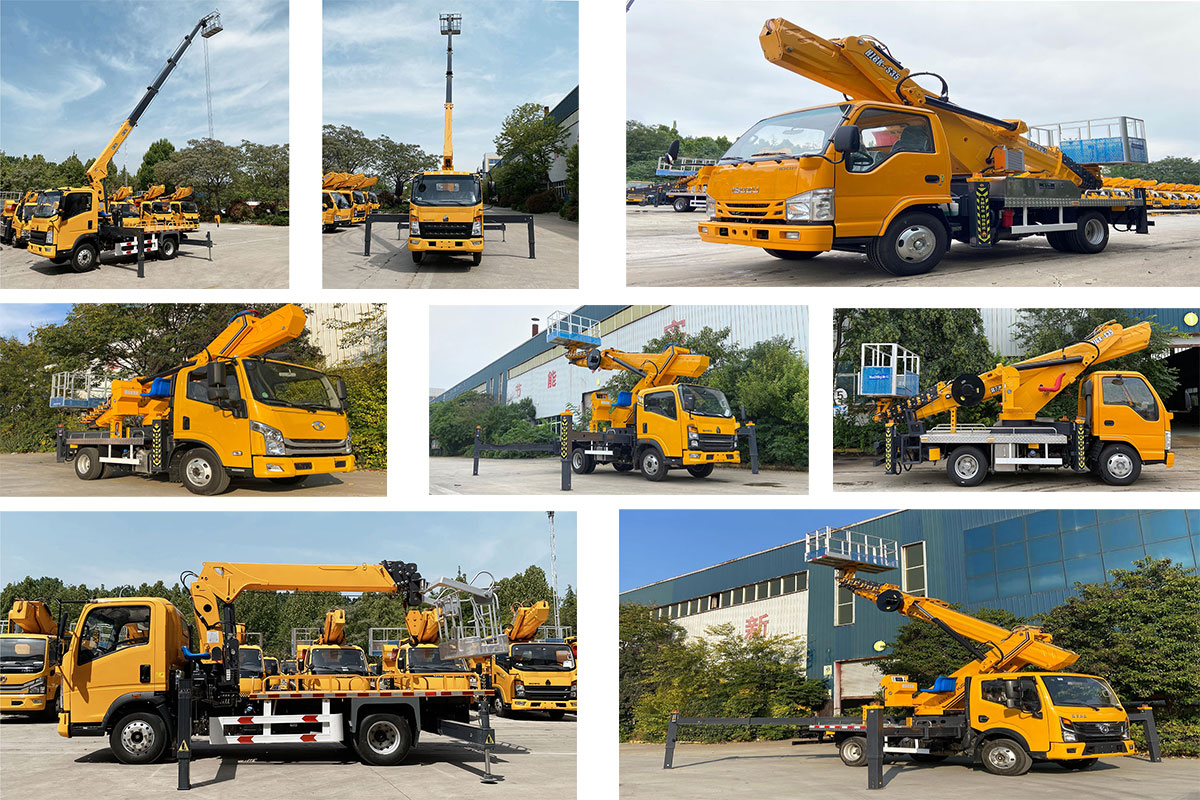

With the golden combination of SINOTRUK's global service support and Weichai Power, this Sinotruk Howo GK35 aerial work platform truck achieves an ultra-high working performance of 33.3 meters in a compact body of less than 6 meters. Combined with an intelligent electro-hydraulic proportional control system, it is an ideal choice for overseas customers who seek high stability and high mobility.
Product Description
Shandong Xinyaheng International Trade Co., Ltd. extends its sincere greetings!
We specialize in the production and customization of high-quality 3-25 ton cranes.
Our mission is to provide customers with cost-effective solutions to maximize their profitability. We are committed to building long-term partnerships and offering highly competitive pricing policies to our long-term partners. We look forward to discussing how to support your business growth.
Product Advantage
The SINOTRUK chassis, powered by Weichai Power, boasts extremely high parts commonality globally. With its 33.3-meter seven-section boom crafted from Baosteel's 960 high-strength steel, it achieves the strongest operating range and stability in its class within a compact body of less than 6 meters, making it an all-around efficient tool for narrow working conditions in overseas cities.
Product Parameters
| Vehicle Series | Sinotruk Howo Aerial Work Platform Chassis |
| Cabin | Power steering, air conditioning, central locking, power windows |
| Engine | Weichai WP2.3Q140E62 |
| Transmission | [Optional] Wanliyang 5-speed/8-speed |
| Battery | 24V |
| Wheelbase | 2800mm |
| Leaf Spring Count | 3/5+3 |
| Tire Specifications | 6.50R16LT 12PR |
| Brakes | Air brake |
| Overall Dimensions | 5995mm*2000mm*3100mm |
| Gross Vehicle Weight | 4495KG |
| Upper Structure | GK35 type |
| Maximum Working Height | 33.3M |
| Maximum Working Radius | Safety limit 18M/Maximum Radius 22M |
| Platform Rated Load | 200KG |
| Boom Slewing Angle | 360 degrees |
| Working Boom | Baosteel 960, 14-section 7-section boom, 6-section synchronous telescopic, double wire rope |
| Luffing Cylinder | Thickened type Dual Luffing Cylinders |
| Slewing Support | 21-inch horizontal slewing bearing |
| Hydraulic Drum | Composite hydraulic drum, integrated oil pipe and cable conduit |
| Operating System | Optional [Cyber, Jinglian] electronic control system, wireless remote control, intelligent electronic control for upper structure |
| Hydraulic Outriggers | X-shaped outriggers, four double-section hydraulic outriggers, individually adjustable |
| Outrigger Span | Lateral span 6100mm, longitudinal span 5500mm |
| Work Basket | Aviation aluminum |
| Platform Dimensions | 1600mm*700mm*1150mm [Customizable] |
| Platform Rotation Range | 360-degree unlimited rotation |
| Hydraulic System | Electro-hydraulic proportional valve, stepless speed adjustment, equipped with emergency power source |
| Hydraulic Valves | Undercarriage multi-way valve, telescopic/luffing balance valve, center slewing valve |
| Walkway | Thickened anti-slip walkway made of aviation aluminum |
| Safety Devices | Undercarriage interlock, emergency pump, two-way hydraulic balance valve, explosion-proof valve |

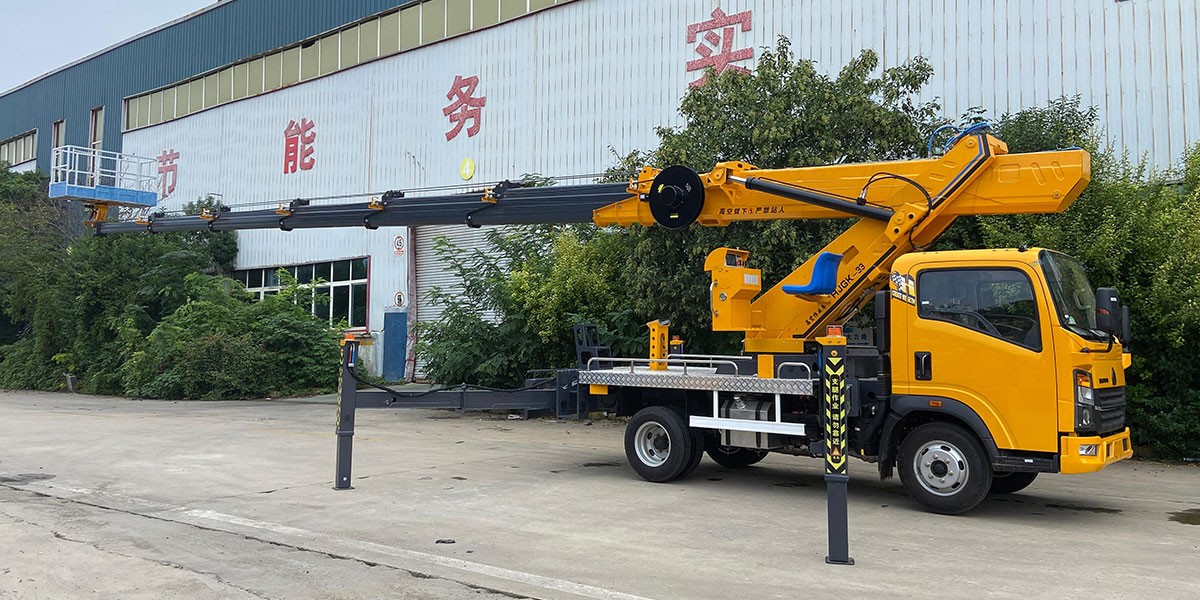

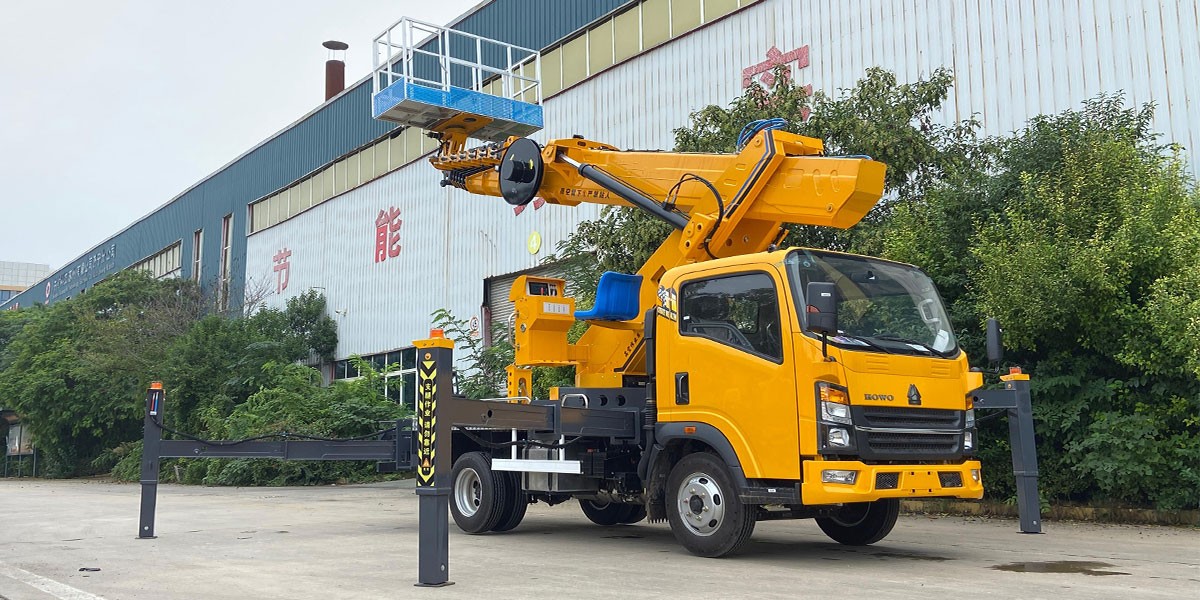

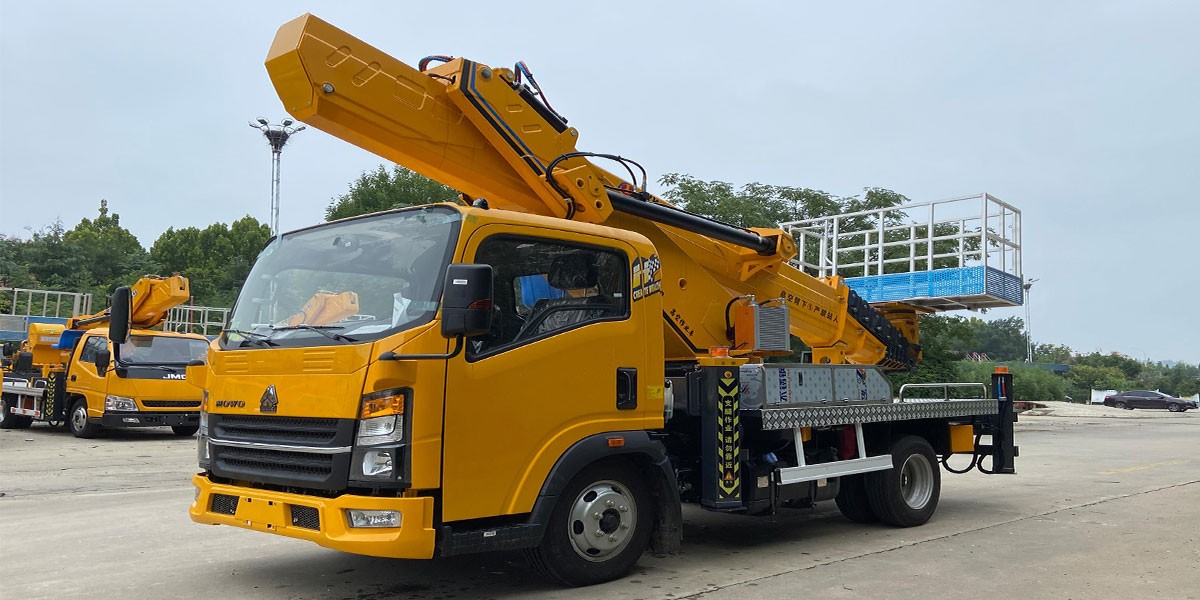

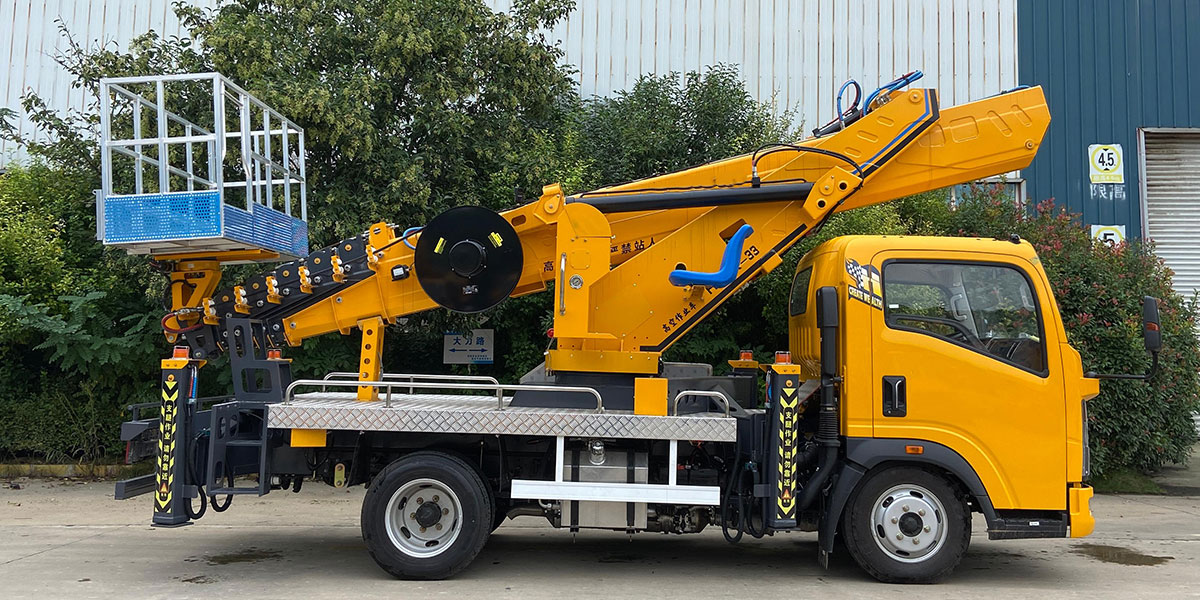

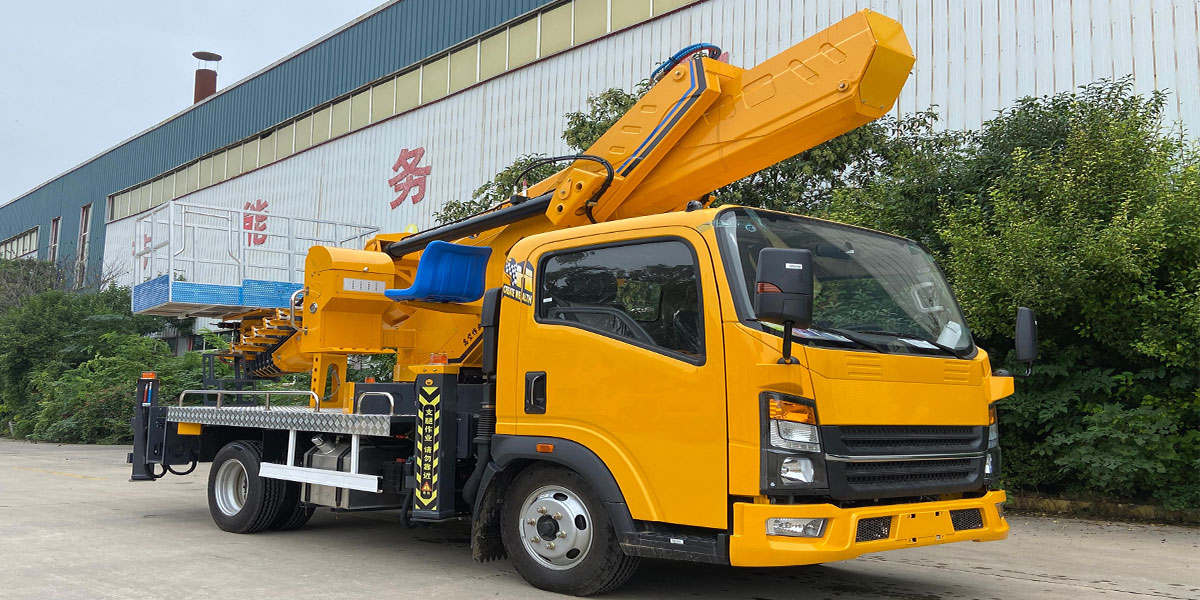

Detailed Photos
