Relying on FOTON's globally leading supply system and equipped with a powerful 150-horsepower engine, it achieves an ultra-high operating performance of 33.3 meters within a compact body size of less than 6 meters; with Baosteel 960 high-strength steel boom and a fully electronic intelligent control system, it achieves ultimate stability, precise handling and excellent fuel economy.
Product Description
Shandong Xinyaheng International Trade Co., Ltd. extends its sincere greetings!
We specialize in the production and customization of high-quality 3-25 ton cranes.
Our mission is to provide customers with cost-effective solutions to maximize their profitability. We are committed to building long-term partnerships and offering highly competitive pricing policies to our long-term partners. We look forward to discussing how to support your business growth.
Product Advantage
Leveraging Foton Motor's global service network and equipped with a 150-horsepower high-power engine, it achieves an ultra-high working height of 33.3 meters within a compact 6-meter body. Combined with Baosteel 960 high-strength steel boom and a fully intelligent electronic control system, it provides overseas customers with extremely high cost performance, excellent handling performance, and comprehensive safety assurance.
Product Parameters
| Vehicle Series | Foton M5 Aerial Work Platform Chassis |
| Cabin | Remote key, power steering, air conditioning, central locking, power windows |
| Engine | Q25A-150E60 [Quanchai 150hp] |
| Transmission | Wanliyang 5-speed |
| Battery | 12V |
| Displacement | 2496ml |
| Power | 110kw |
| Wheelbase | 2800mm |
| Leaf Spring Count | 3/3+3 |
| Tire Specifications | 7.00R16LT 8PR |
| Brakes | Air brakes |
| Overall Dimensions | 5995mm*2050mm*3160mm |
| Gross Vehicle Weight | 4495KG |
| Upper Structure | GK35 type |
| Maximum Working Height | 33.3M |
| Maximum Working Radius | Safety limit 18M/Maximum Radius 22M |
| Platform Rated Load | 200KG |
| Boom Slewing Angle | 360 degrees |
| Working Boom | Baosteel 960 14-section, 7-section boom with 6-section synchronous telescopic extension, double steel wire rope |
| Luffing cylinder | Thickened double luffing cylinder |
| Slewing support | 21-inch horizontal slewing bearing |
| Hydraulic drum | Composite hydraulic drum, oil pipe and cable combined |
| Operating system | Electrical control system, wireless remote control, intelligent electrical control for upper structure |
| Hydraulic outriggers | X-shaped outriggers, four double-section hydraulic outriggers, individually adjustable |
| Outrigger span | Lateral span 6100mm, longitudinal span 5500mm |
| Work basket | Aviation aluminum |
| Platform dimensions | 1600mm*700mm*1150mm [Customizable] |
| Platform rotation range | 360-degree unlimited rotation |
| Hydraulic system | Electro-hydraulic proportional valve, stepless speed adjustment, equipped with emergency power source |
| Hydraulic valves | Undercarriage multi-way valve, telescopic/luffing balance valve, center slewing valve |
| Walkway | Thickened anti-slip walkway made of aviation aluminum. |
| Safety devices | Interlock for getting on and off the vehicle, emergency pump, two-way hydraulic balance valve, explosion-proof valve |

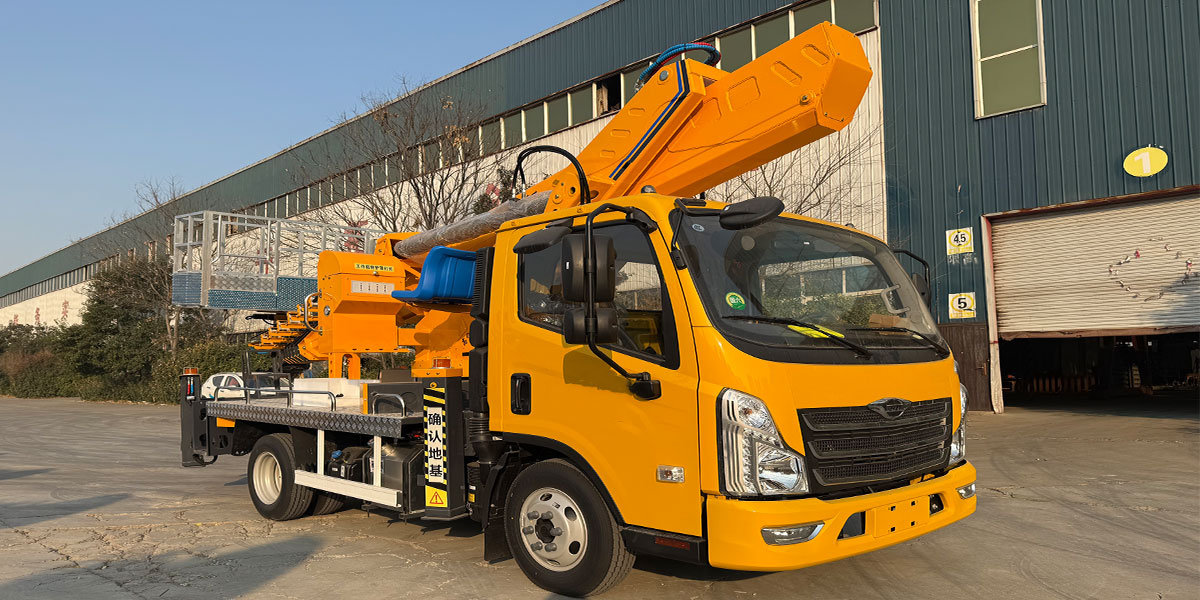

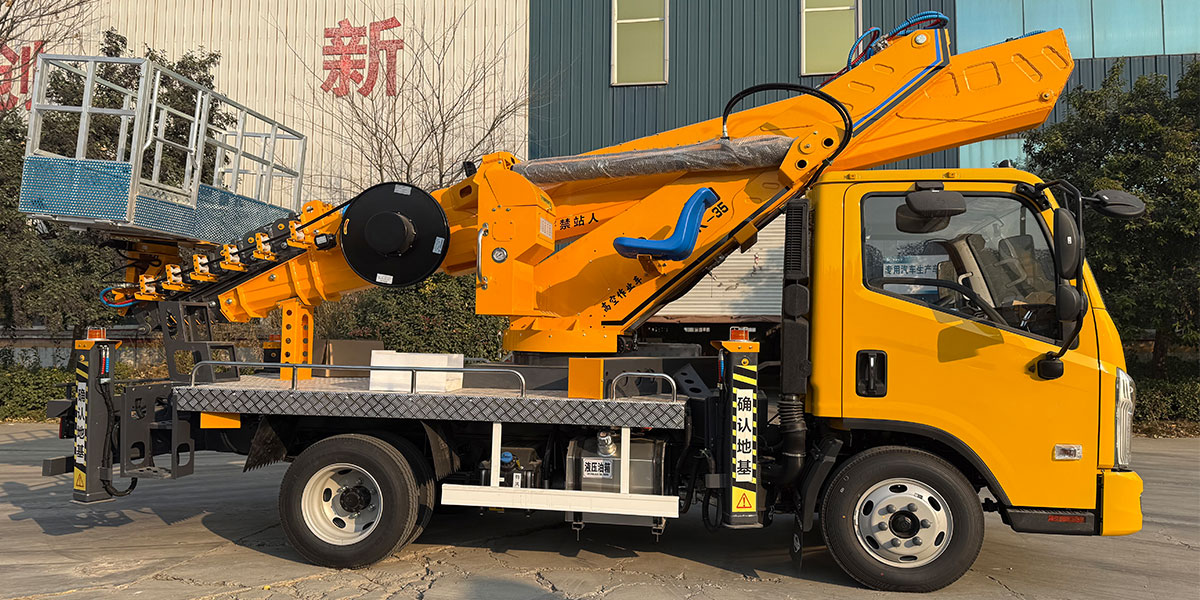

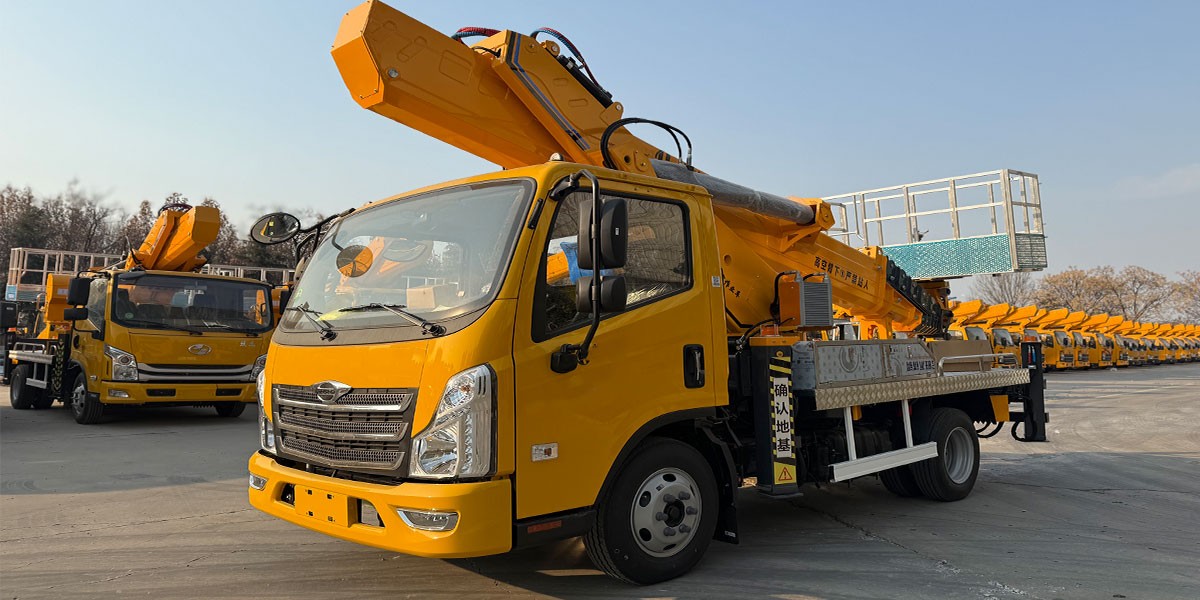

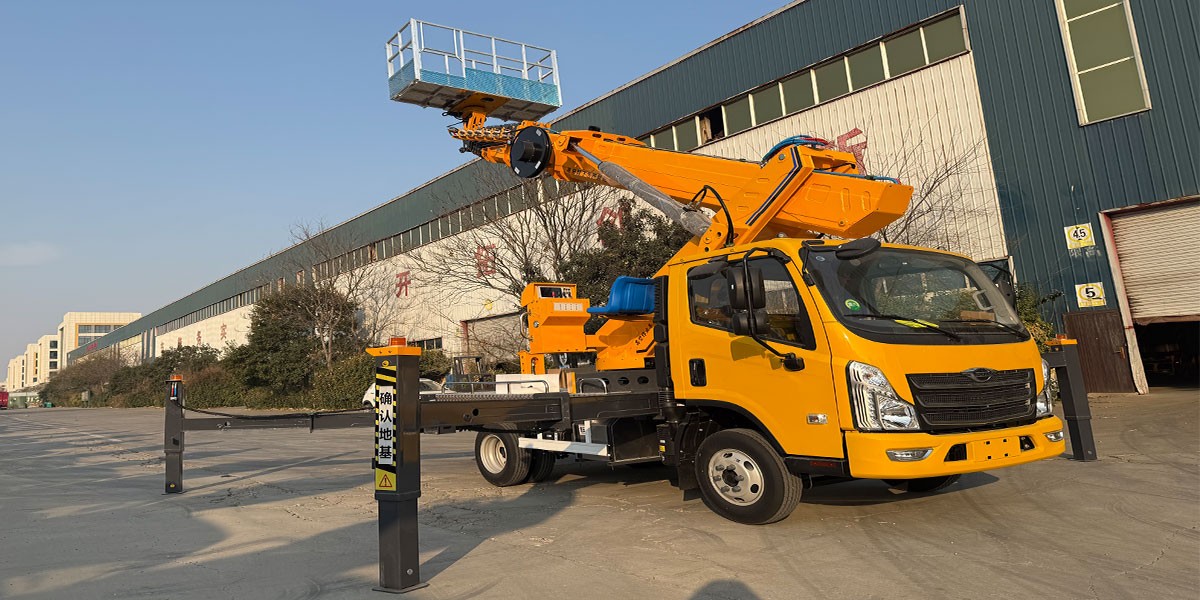

Detailed Photos
