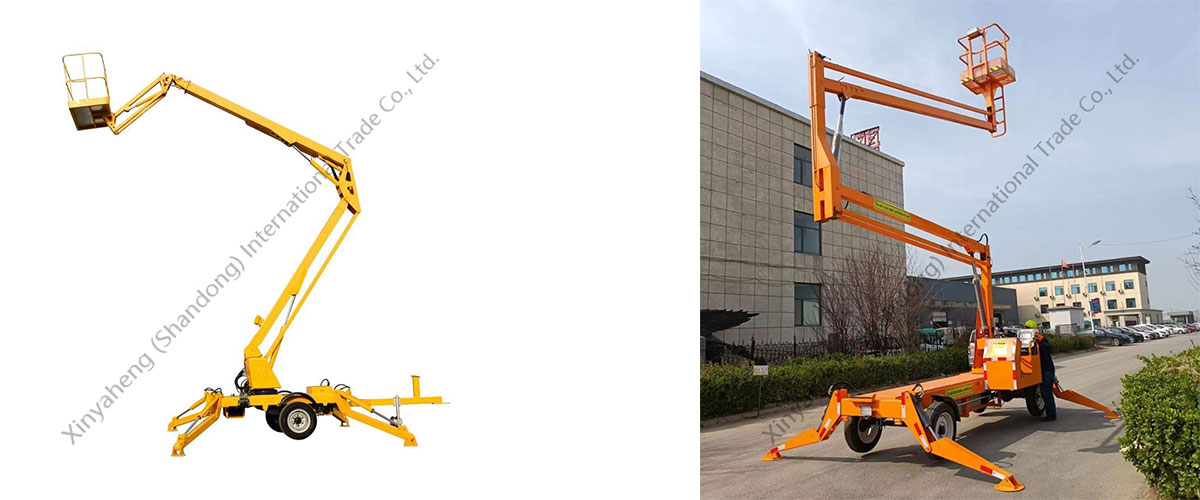

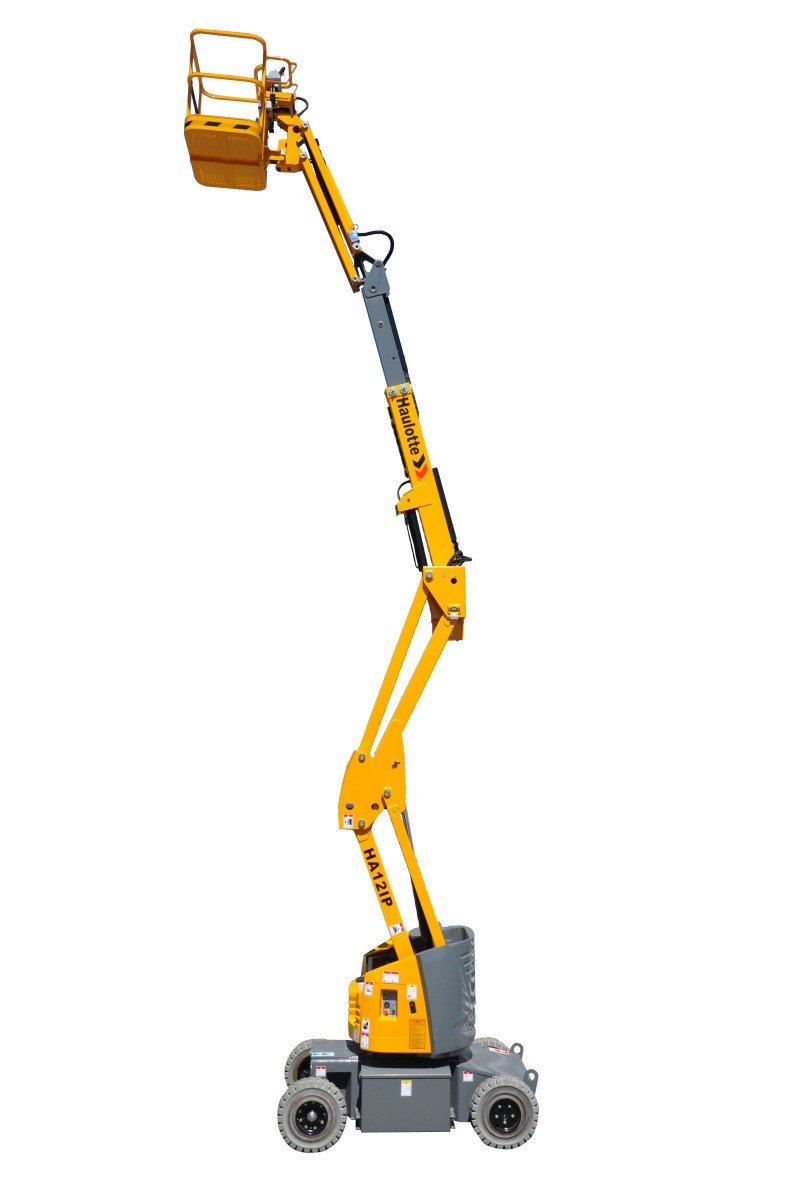

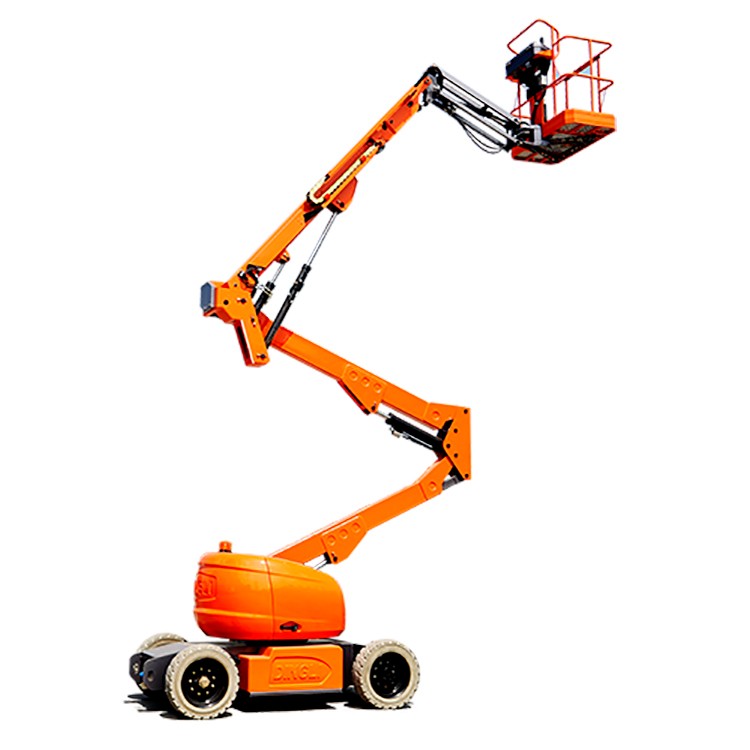

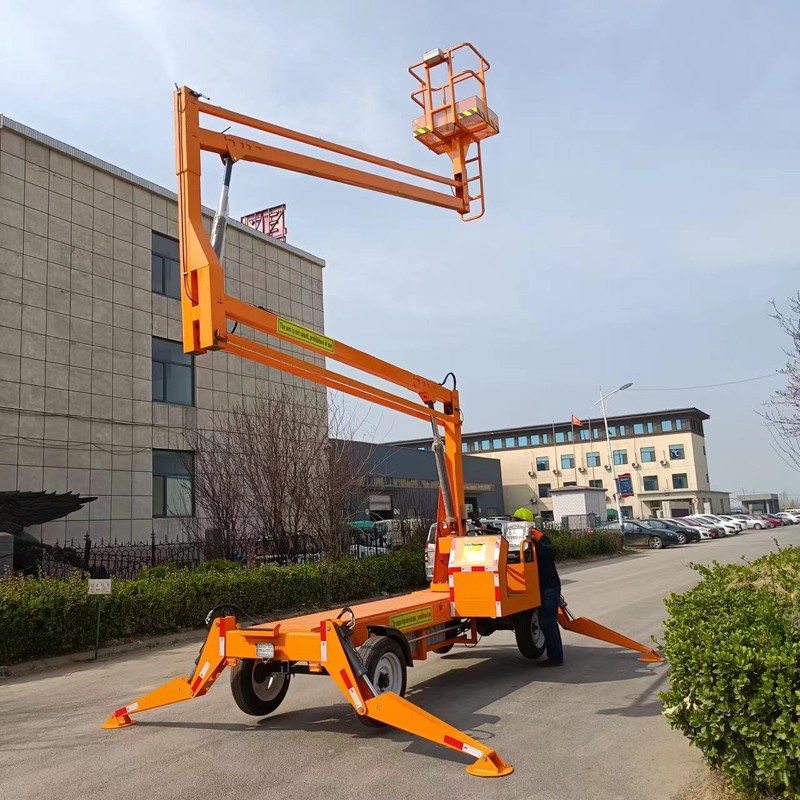

Self propelled articulating boom lift are Articulating boom lift feature an outstanding aerial working operation , making it ideal for aerial work. With easy-to-tow mobility and simple pictograph controls. The boom lift can overhang operation ,can overcome some obstacles or in a point lifting for more point work .this kind of lift can rotate 360 degrees ,large load capacity, mobile flexible ,transfer work place convenient ,appearance beautiful.
PRODUCT DESCRIPTION
High-Performance Self-Propelled Articulating Boom Lifts
Our articulating boom lifts are engineered for superior aerial versatility, making them the perfect solution for accessing difficult high and low work zones.
Up-and-Over Capability: Designed for up-and-over clearance, the boom can navigate obstacles or perform multi-point tasks from a single positioning.
Precision Control: Equipped with intuitive pictograph-based controls for simple and safe operation.
360° Maneuverability: Features 360-degree continuous rotation, high load capacity, and exceptional mobility for seamless site transfers.
Design: Combines a sleek, aesthetic appearance with rugged, flexible performance.
PRODUCT CUSTOMIZATION
We offer comprehensive tailor-made solutions to ensure our equipment aligns perfectly with your specific operational requirements. Our customization services cover aesthetic branding, including personalized colors, brand identities, logos, and nameplates, allowing the final product to reflect your unique professional standards.
PRODUCT DETAILS
Smooth Operation: User-friendly controls providing high stability with impact-free movement.
Superior Agility: The flexible boom design is optimized for navigating complex and confined workspaces.
Precision Leveling: Equipped with an automatic hydraulic leveling system for a rock-solid and reliable platform experience.
Eco-Friendly Drive: Full electric drive system ensures low noise and zero emissions, fully compliant with international environmental standards.
PARAMETERS
| Model | Platform Size（m） | Overall dimensions(mm) | Max. Platform Height(m) | Max. Working Height(m) | Power(V/Ah) | Load capacity(kg) | Max. Working Distance(m) | Weight(kg) |
| GTZZ-10EJ(Electric) | 1.52*0.77 | 6.33*1.66*2.03 | 10 | 12 | 48/390 | 230 | 5.25 | 6000 |
| GTZZ-12EJ(Electric) | 1.52*0.77 | 6.53*1.76*2.03 | 12 | 14 | 48/390 | 230 | 6.38 | 6500 |
| GTZZ-14EJ(Electric) | 1.52*0.77 | 6.73*1.76*2.13 | 14 | 16 | 48/390 | 230 | 7.49 | 7000 |
| GTZZ-15J (Diesel) | 1.52*0.77 | 7.7*2.28*2.18 | 15 | 17 | 36.4Kw/48.8HP | 230 | 8.52 | 7800 |
| GTZZ-18J (Diesel) | 1.83 * 0.76 | 9.14*2.49*2.68 | 18 | 20 | 36.4Kw/48.8HP | 230 | 11.85 | 10500 |
