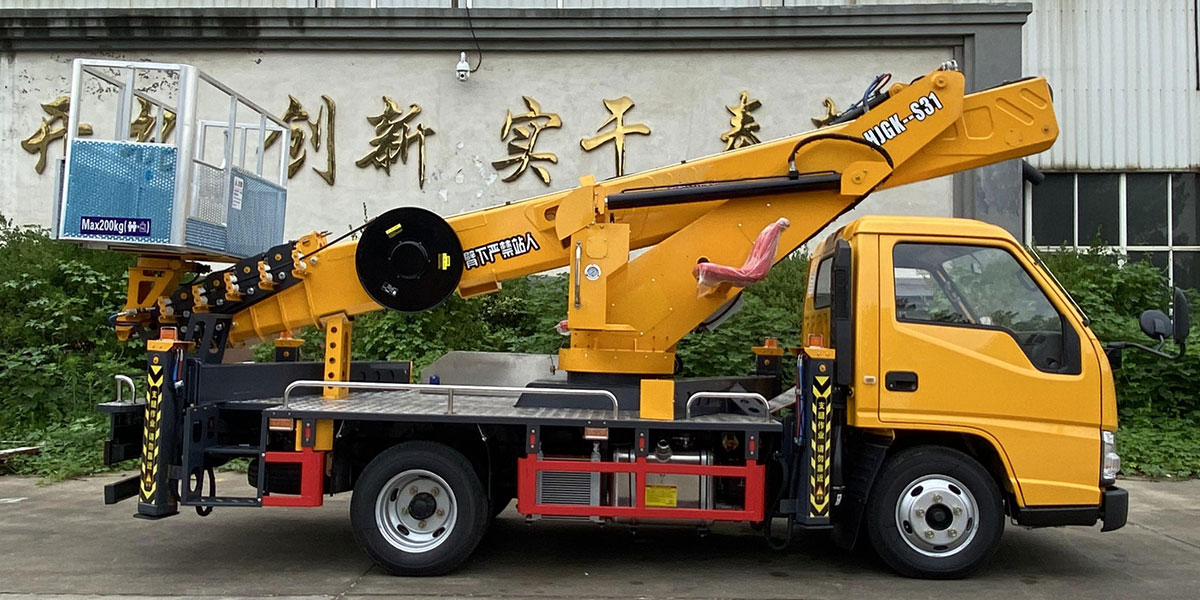

The Jiangling Shunda GK31 aerial work platform truck is a "high-performance, cost-effective choice" in overseas markets: Relying on the JMC (Jiangling Motors) globally warranty chassis and the classic 493 engine, it offers an ultra-high working performance of 31 meters in a compact body of less than 6 meters. Combined with precise electro-hydraulic proportional control and X-type stabilizing outriggers, it sells well all over the world with extremely low maintenance costs and excellent urban mobility.
Product Description
Shandong Xinyaheng International Trade Co., Ltd. extends its sincere greetings!
We specialize in the production and customization of high-quality 3-25 ton cranes.
Our mission is to provide customers with cost-effective solutions to maximize their profitability. We are committed to building long-term partnerships and offering highly competitive pricing policies to our long-term partners. We look forward to discussing how to support your business growth.
Product Advantage
Internationalized chassis, worry-free maintenance: Relying on Jiangling Motors' (JMC) mature 493 technology and global service network, spare parts are readily available, maintenance costs are low, and it is widely recognized in the international market.
Compact design with blue license plates: The overall length is controlled within 6 meters, and the total weight is 4495KG, complying with international light truck regulations. It has strong mobility and is suitable for operation in narrow urban areas.
High-efficiency operation performance: Equipped with a 31-meter multi-faceted boom (Baosteel 960 high-strength steel), it has a wide operating range and high efficiency, making it a leading model in its class.
Intelligent safety configuration: Adopting the [Cyber/Jinglian/Sboli] intelligent electronic control system and X-type large-span outriggers, it offers precise operation and high safety, meeting the stringent standards of overseas users.
Product Parameters
| Vehicle Series | Jiangling Shunda Aerial Work Platform Chassis |
| Cabin | Power Steering, Air Conditioning, Central Locking, Power Windows |
| Engine | Jiangling 493 122hp |
| Transmission | Gratco 5-speed |
| Battery | 12V |
| Wheelbase | 2800mm |
| Leaf Spring Count | 7/6+5 |
| Tire Specifications | 6.50R16LT 10PR |
| Brakes | Hydraulic Brakes |
| Overall Dimensions | 5995mm*2050mm*3040mm |
| Gross Vehicle Weight | 4495KG |
| Upper Structure | GK31 type |
| Maximum Working Height | 31M |
| Maximum Working Radius | 16M |
| Platform Rated Load | 200KG |
| Boom Slewing Angle | 360 degrees |
| Working Boom | Baosteel 960 Multi-faceted six-section boom, five-section synchronous telescopic boom, double steel wire rope. |
| Luffing cylinder | Thickened double luffing cylinder. |
| Slewing bearing | 19-inch horizontal slewing bearing. |
| Operating system | Electrical control system, wireless remote control, intelligent electrical control for the upper structure. |
| Hydraulic outriggers | X-shaped outriggers, four double-section hydraulic outriggers, individually adjustable. |
| Outrigger span | Lateral span 5800mm, longitudinal span 5600mm. |
| Work basket | Aviation aluminum. |
| Platform dimensions | 1600mm*700mm*1150mm (with small loading platform). |
| Platform rotation range | 360-degree unlimited rotation. |
| Hydraulic system | Electro-hydraulic proportional valve, stepless speed adjustment, equipped with an emergency power source. |
| Walkway | Thickened anti-slip walkway made of aviation aluminum. |
| Safety devices | Interlock for getting on and off the vehicle, emergency pump, two-way hydraulic balance valve, explosion-proof valve. |

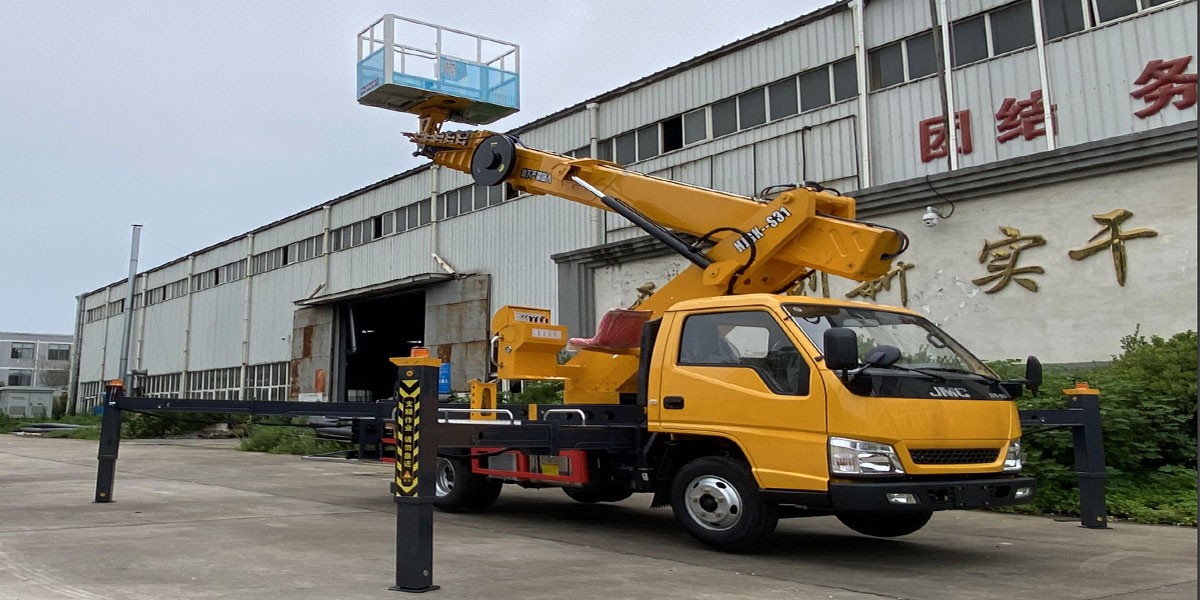

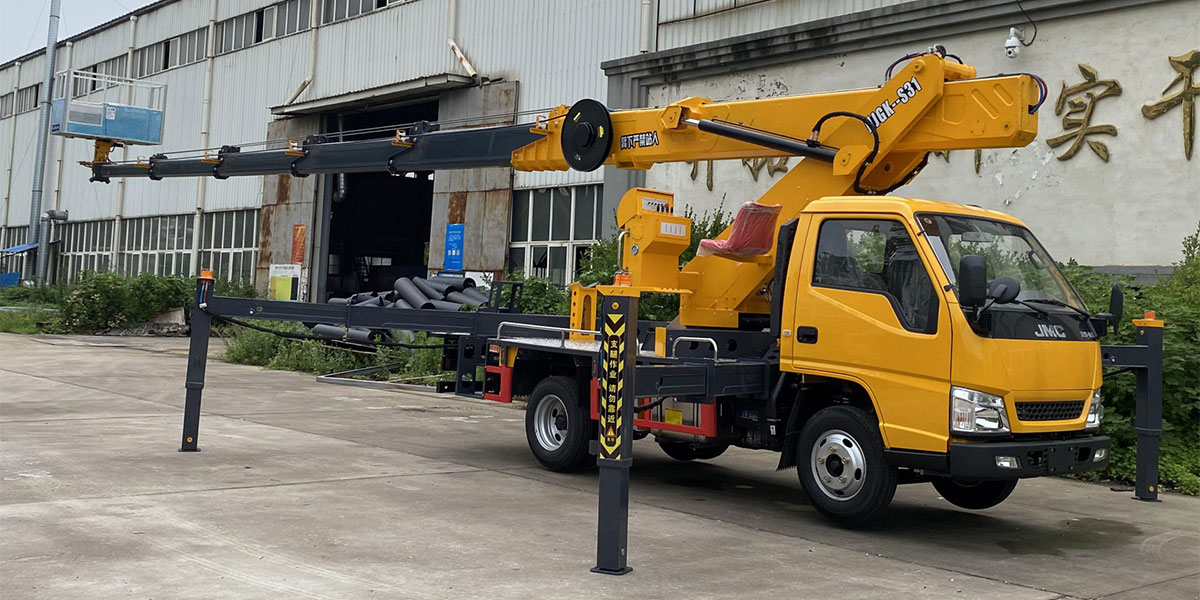

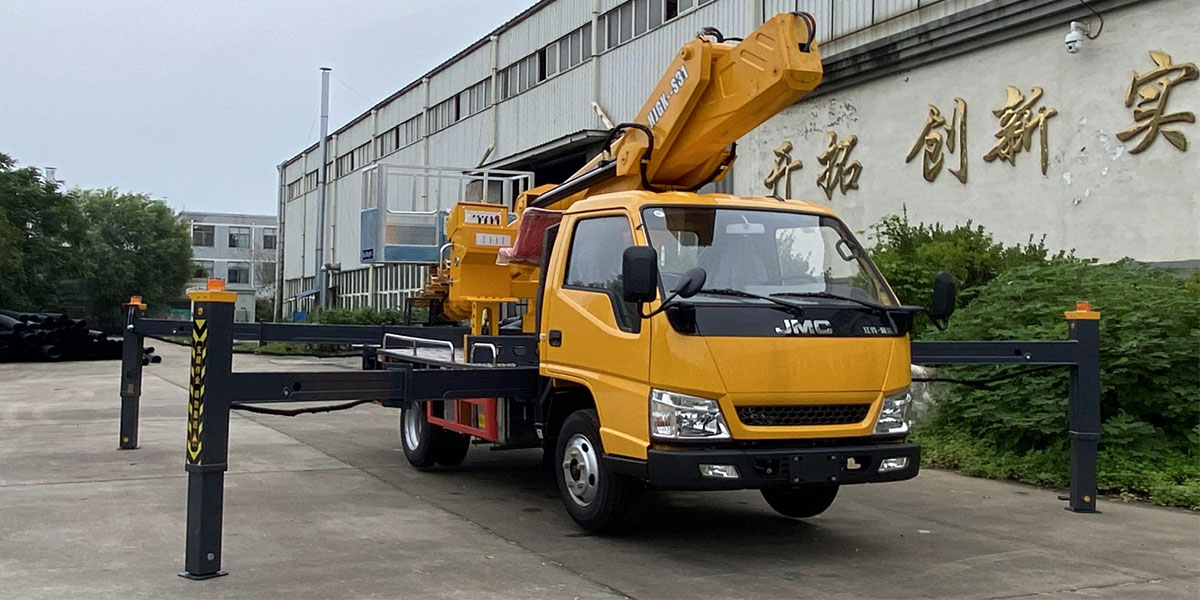

Detailed Photos
