Plataforma de trabajo aéreo totalmente autopropulsada

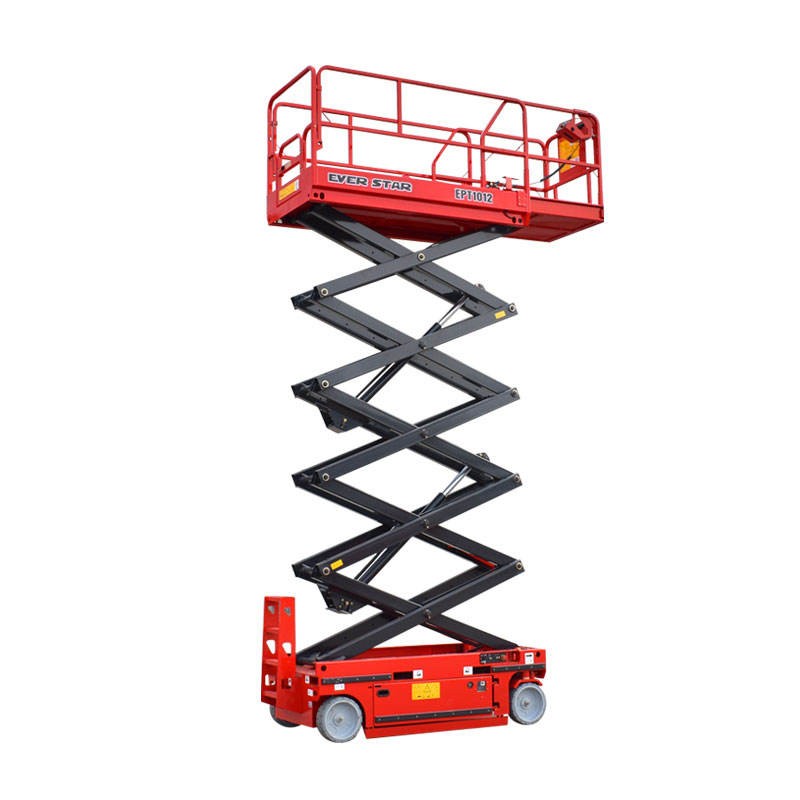

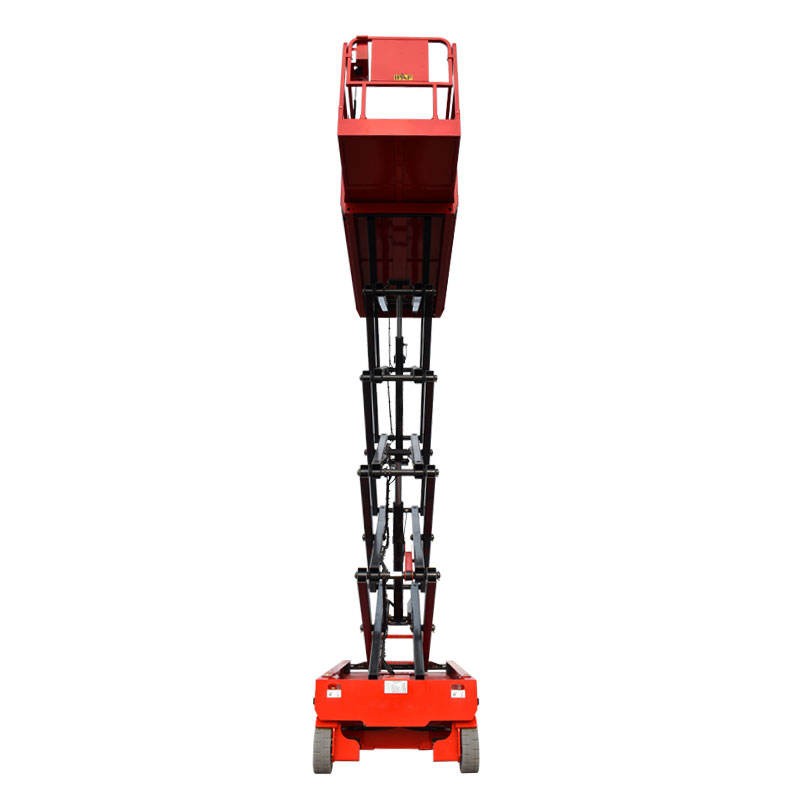

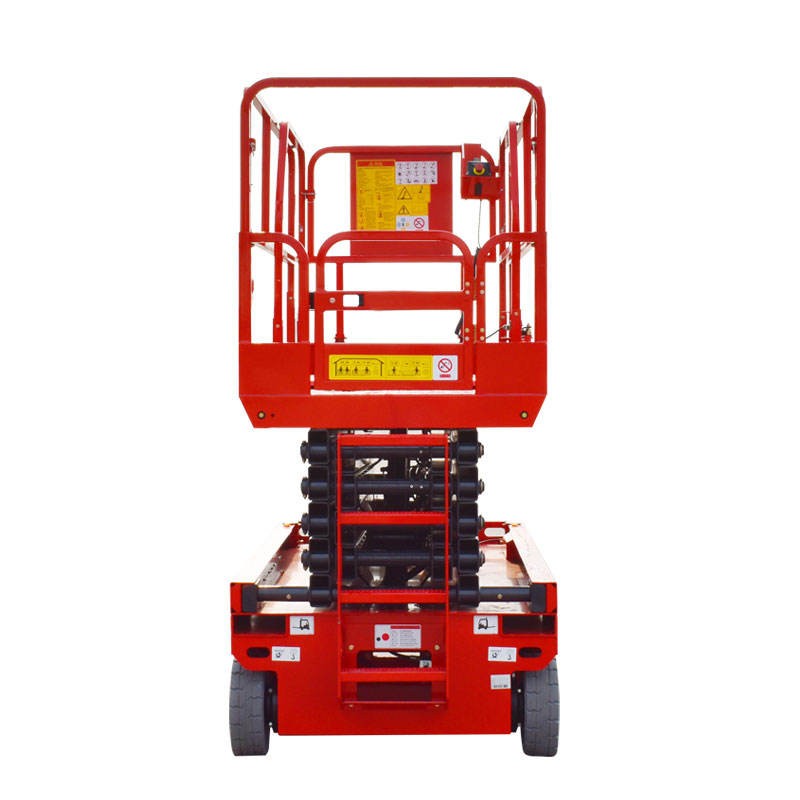

Self-propelled Scissor lift 4m

Rated capacity：230-450kg

Lifting height：3-14m

Power: battery
Autonomous mobility without the need for external power sources or manual assistance
Operator can control speed, direction, and elevation effortlessly
Guardrails, safety harness attachment points and emergency stop buttons for safety

PRODUCT DESCRIPTION

High-Efficiency Self-Propelled Scissor Lifts

Our self-propelled scissor lifts offer complete autonomy, eliminating the need for external power or manual towing. Designed for single-operator use, this equipment maximizes job site efficiency and convenience. It is the premier choice for high-altitude tasks, including facility maintenance, industrial cleaning, and structural repairs.

Premium Build & Advanced Safety Systems
Superior Durability: The structure features full-body electrophoresis coating for elite corrosion resistance, paired with salt-bath nitrided, maintenance-free shaft pins.
Comprehensive Safety Suite: Fully equipped with overload, pit, and incline protection, plus a redundant emergency system (emergency stop, emergency descent, and secondary descent).
Operational Efficiency: Features a pedal-extended platform for quick access to work points and foldable guardrails for compact storage/transport.
High Performance: Boasts a 25% gradeability for smooth slope navigation.

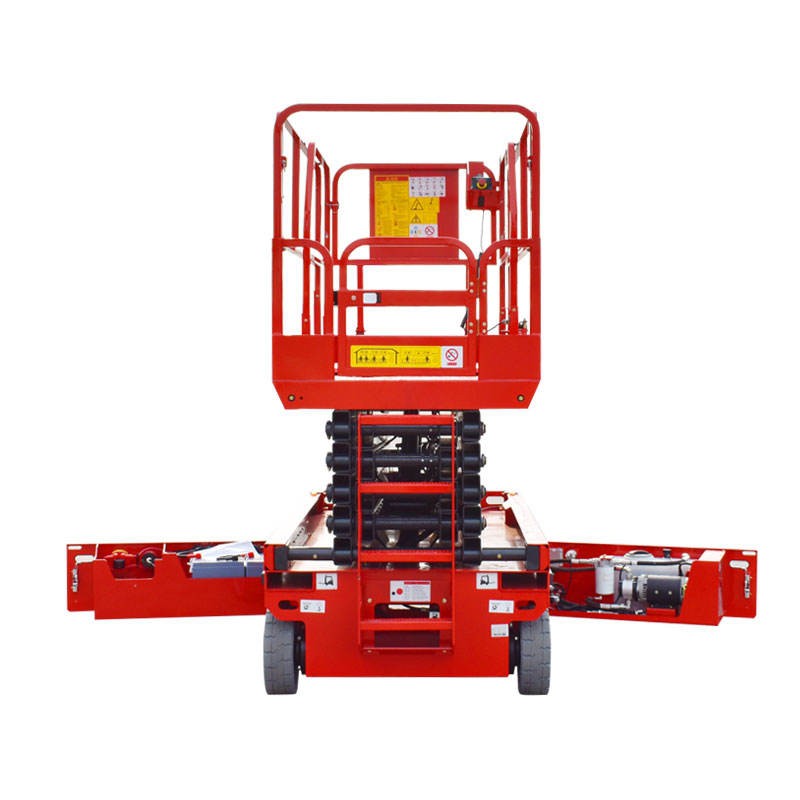

Smart Maintenance: A swivel-out chassis and automatic fault code display ensure effortless servicing and troubleshooting.

PARAMETERS

Parameters	GTJZD03	GTJZD04	GTJZD06	GTJZD06A	GTJZD08	GTJZD08A	GTJZD10	GTJZD12	GTJZD14
Max. lifting height	3m	4m	6m	6m	8m	8m	10m	11.8m	13.8m
Max. working height	5m	6m	8m	8m	10m	10m	12m	13.8m	15.8m
Max. loading capacity	230kg	230kg	550kg	380kg	450kg	230kg	320kg	320kg	227kg
Loading capacity of extension platform	113kg	113kg	113kg	113kg	113kg	113kg	113kg	113kg	113kg
Platform size	1.29X0.7m	1.29X0.7m	2.29X1.13X1.1m	2.29X0.81X1.1m	2.29X1.13X1.1m	2.29X0.81X1.1m	2.29x1.13x1.1m	2.29x1.13x1.1m	2.67x1.13x1.1m
Platform extension size	0.6m	0.6m	0.9m	0.9m	0.9m	0.9m	0.9m	0.9m	0.9m
Min. ground clearance(Close/Open)	0.06/0.015m	0.06/0.015m	0.1/0.02m	0.1/0.02m	0.1/0.02m	0.1/0.02m	0.1/0.02m	0.1/0.02m	0.1/0.02m
Wheelbase	1.05m	1.05m	1.89m	1.89m	1.89m	1.89m	1.89m	1.89m	2.26m
Min. turning radius（Outer wheel / Inner wheel）	1.35m/0.3m	1.35m/0.3m	0/2.2m	3.1m/0m	0/2.2m	0/3.1m	2.2/0m	2.2/0m	2.7/0m
Drive motor	2X24V DC/0.4kw	2X24V DC/0.4kw	24V DCX3.3kw	24V/3.3kw	24V/3.3kw	24V/3.3kw	24V/3.3kw	24V/4.5kw	24V/4.5kw
Lifting motor	24V DC/0.8kw	24V DC/0.8kw	24V DCX3.3kw	24V/3.3kw	24V/3.3kw	24V/3.3kw	24V/3.3kw	24V/4.5kw	24V/4.5kw
Ground speed(Close)	4.0km/h	4.0km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h
Ground speed(Open)	0.5km/h	0.5km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Lifting speed	4-6m/min	4-6m/min	3-5m/min	3-5m/min	3-5m/min	3-5m/min	3-5m/min	3-5m/min	3-5m/min
Battery	2X12V/80Ah	2X12V/80Ah	4X12V/200Ah	4X12V/200Ah	4X12V/200Ah	4X12V/200Ah	4X12V/200Ah	4X12V/200Ah	4X12V/200Ah
Max. gradeability	25%	25%	25%	25%	25%	25%	25%	25%	25%
Max. allowable working angle	2°/3°	2°/3°	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°
Tyre	φ230X80mm	φ230X80mm	φ381X127mm	φ381X127mm	φ381X127mm	φ381X127mm	φ381X127mm	φ381X127mm	φ381X127mm
Overall size(Folding guardrail)	1.46X0.76X1.59m	1.46X0.76X1.67m	2.48X1.19X1.68m	2.48X0.81X1.73m	2.48X1.19X1.82m	2.48X0.85X1.85m	2.495X1.19X1.92m	2.495X1.19X2.05m	2.495X1.19X2.06m
Overall size(Unfolded guardrail)	1.46X0.76X2.01m	1.46X0.76X2.03m	2.48X1.19X2.19m	2.48X0.81X2.18m	2.48X1.19X2.32m	2.48X0.85X1.85m	2.495X1.19X1.92m	2.495X1.19X2.05m	2.495X1.19X2.06m
Overall weight	815kg	890kg	2050kg	1880kg	2190kg	2030kg	2500kg	2950kg	3390kg
