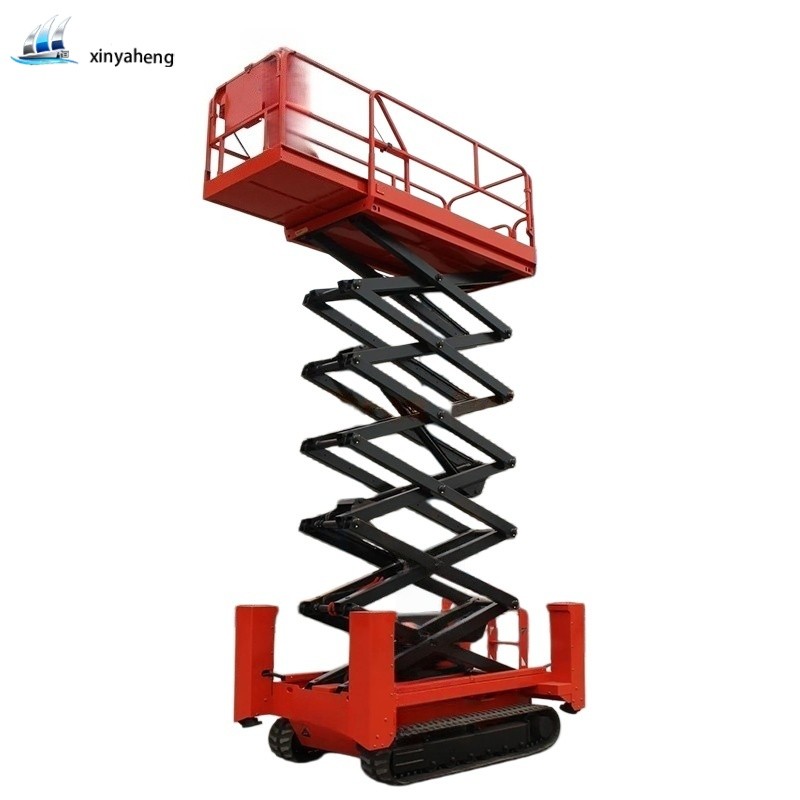

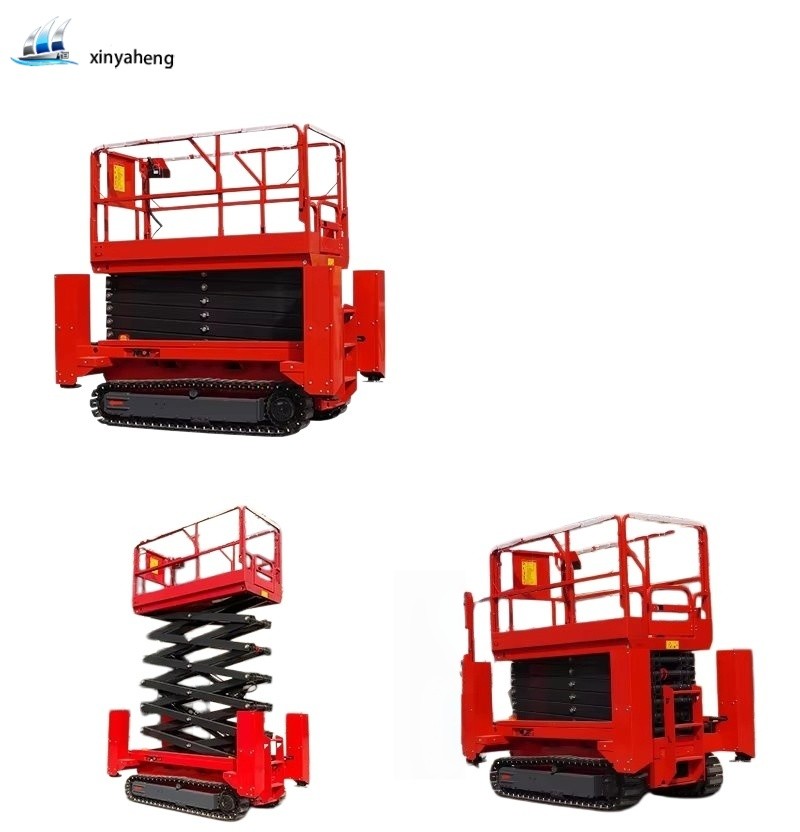

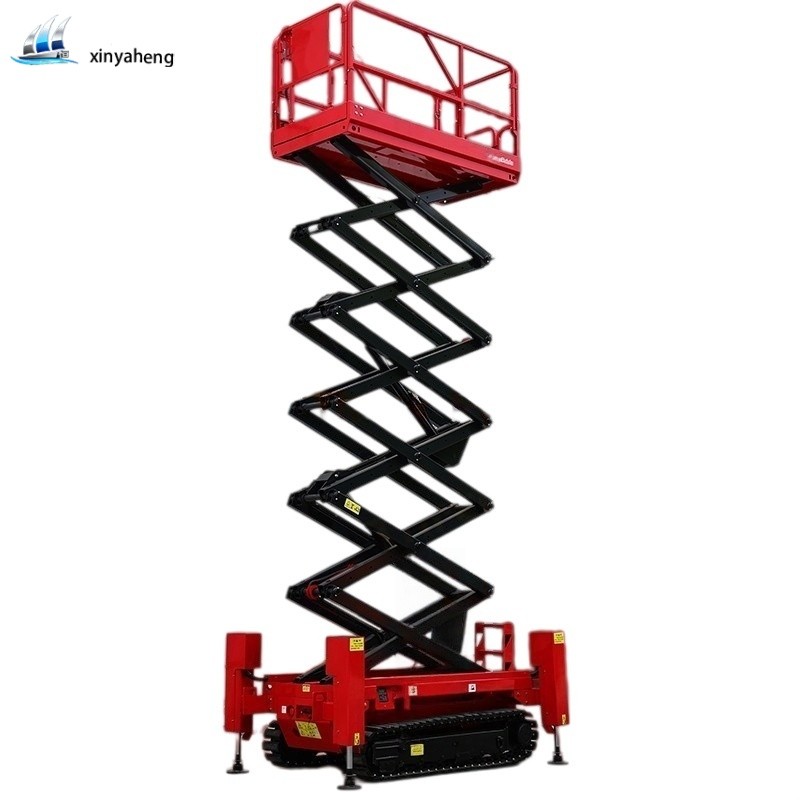

Conventional/pull-out outriggers/hydraulic outriggers
Rise 6 to 12 meters and bear a load of 230 to 320 kilograms. The product features an automatic walking function. When working at heights, only one person is needed to operate the machine to continuously complete lifting and lowering. The product features an attractive appearance, flexible movement, simple operation, large load-bearing capacity, smooth lifting, and high safety and reliability. It can perform actions such as moving forward, backward, and turning
PRODUCT DETAILS
We deliver precision-engineered solutions tailored to your exact specifications. From custom color schemes and corporate branding to specialized logos and nameplates, our comprehensive customization services ensure the final product reflects your brand identity and operational needs.

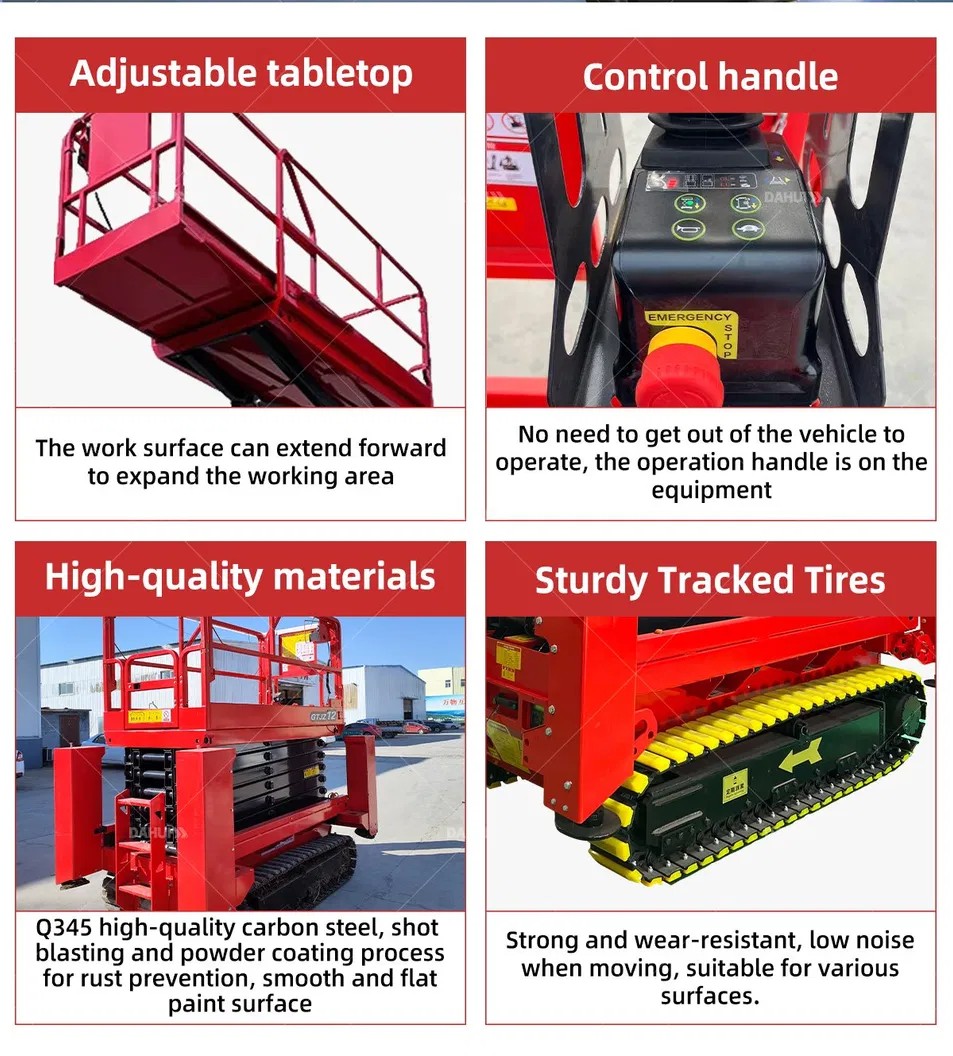

Durability Meets High-Performance Safety
Rugged Construction: Built to last with anti-corrosion electrophoresis treatment and wear-resistant shaft pins.
Total Safety Suite: Equipped with incline, pit, and overload protection, plus triple-redundant emergency descent systems.
All-Terrain Stability: High-quality crawler tracks provide a long service life.
Precision Leveling: Optional one-key auto-leveling ensures safe work on non-level surfaces.
PARAMETERS
| Model | 0406LD | 0608LD |
| Dimensions | ||
| Max Working Height | 6m | 8m |
| Max Platform Height | 4m | 6m |
| Overall Length | 1.522m | 1.947m |
| Overall Width | 1.21m | 1.21m |
| Platform Size | 1.29x0.7m | 1.669x0.745m |
| Platform Extension Size | 0.6m | 0.9m |
| Dverall Height (Guardrail Unfolded) | 2.148m | 2.018m |
| Overall Height (Guardrail Folded) | 1.823m | 1.738m |
| Performance | ||
| Safe Working Load | 230kg | 230kg |
| Extension Platform Safe Working Load | 113kg | 113kg |
| Lifting/Lowering Speed | 84/38sec | 84/38sec |
| Max Gradient Ability | 30% | 30% |
| Max WorkingAngle | 1.5°-3° | 1.5°-3° |
| Weight | ||
| otal Weight | 1200kg | 1620kg |

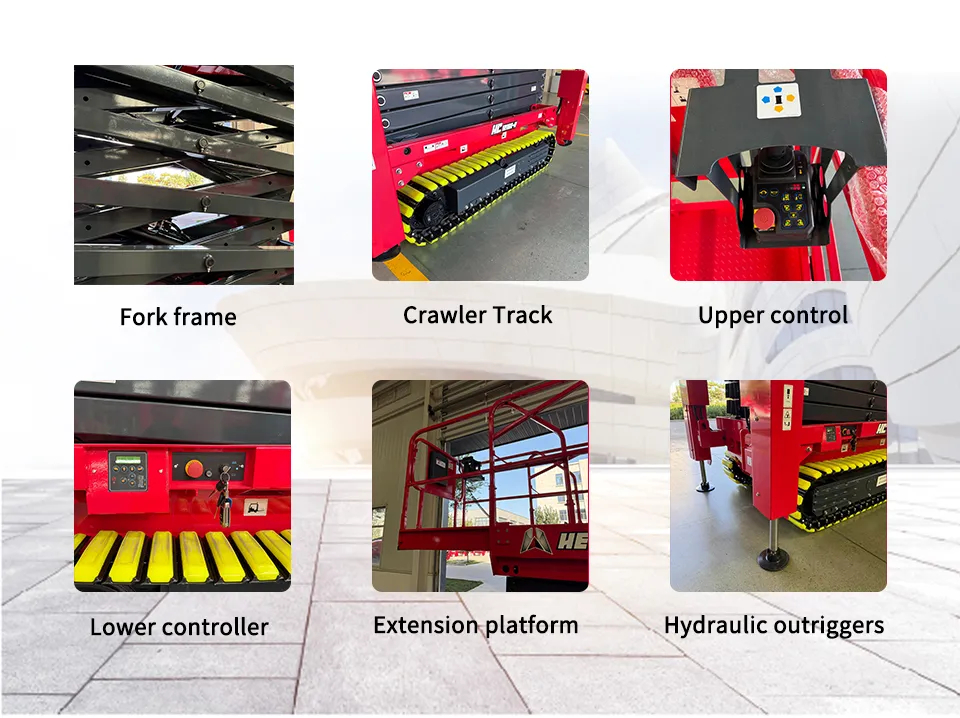

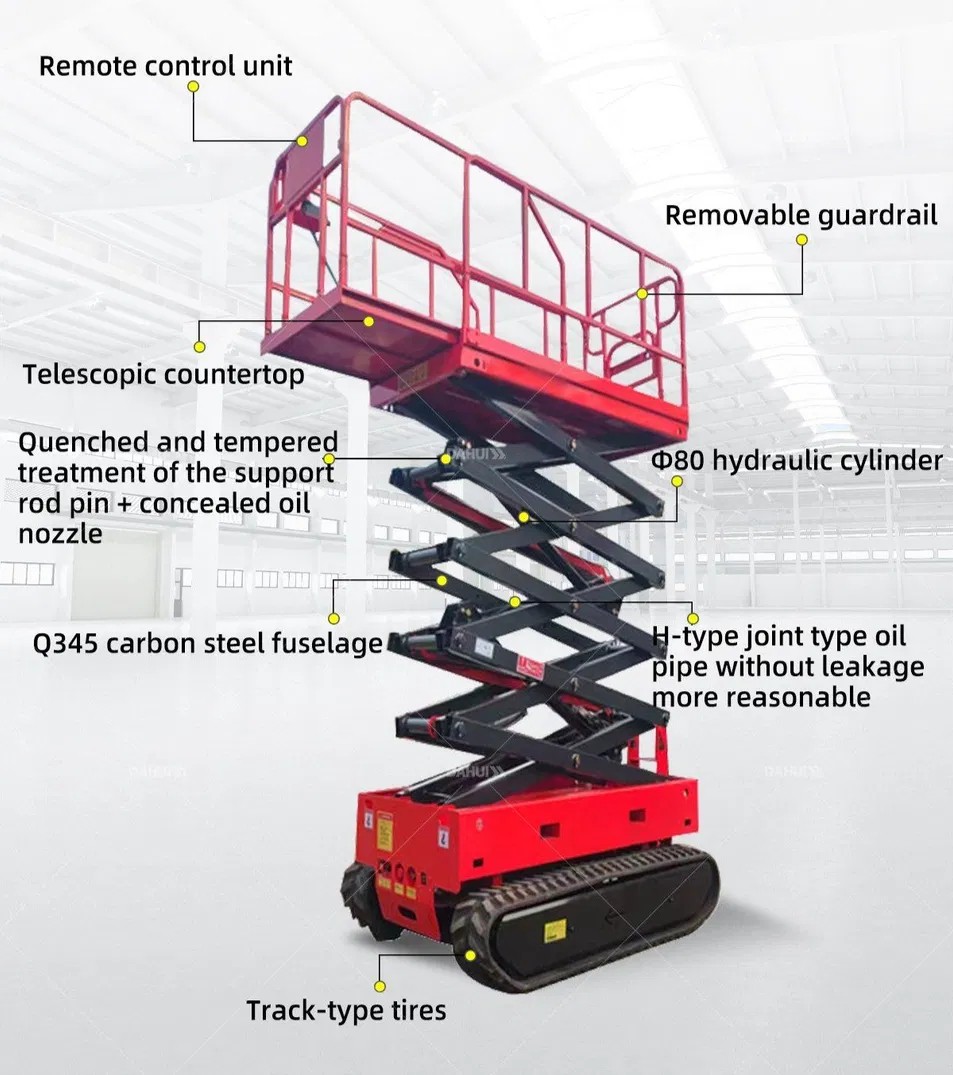

Product Components
