Lifting Height: 4–13m
Platform Capacity : 320kg.
Power Options: AC 220V/380V/DC/Diesel/ Hybrid (Dual Power)
Build Material: High-grade Q235 Carbon Steel.
Maintenance: Shaft pins equipped with grease nipples (butter nozzles) for easy lubrication.
Design Details: Integrated tubing grooves to prevent hydraulic hose entanglement; standard pneumatic tires .
PRODUCT DESCRIPTION

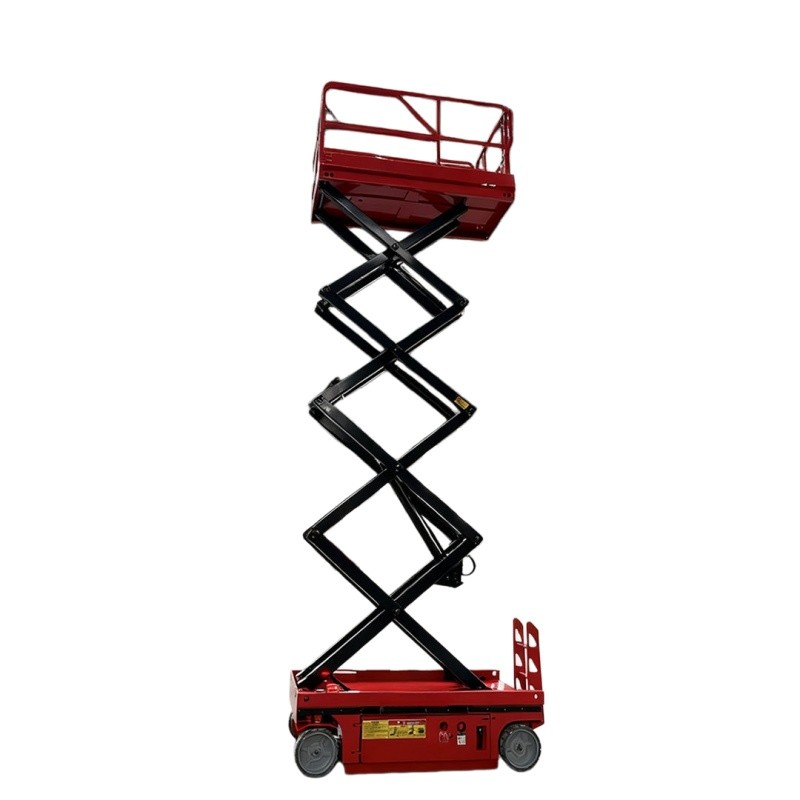

High-Efficiency Self-Propelled Scissor Lifts
Our self-propelled scissor lifts offer complete autonomy, eliminating the need for external power or manual towing. Designed for single-operator use, this equipment maximizes job site efficiency and convenience. It is the premier choice for high-altitude tasks, including facility maintenance, industrial cleaning, and structural repairs.
Premium Build & Advanced Safety Systems
Superior Durability: The structure features full-body electrophoresis coating for elite corrosion resistance, paired with salt-bath nitrided, maintenance-free shaft pins.
Comprehensive Safety Suite: Fully equipped with overload, pit, and incline protection, plus a redundant emergency system (emergency stop, emergency descent, and secondary descent).
Operational Efficiency: Features a pedal-extended platform for quick access to work points and foldable guardrails for compact storage/transport.
High Performance: Boasts a 25% gradeability for smooth slope navigation.
Smart Maintenance: A swivel-out chassis and automatic fault code display ensure effortless servicing and troubleshooting.
PARAMETERS
| Model | GTJZ12 |
| Dimensions | |
| Max Working Height | 13.80m |
| Max Platform Height | 11.80m |
| Working Platform Size (LxWxH) | 2.23X1.13X1.14m |
| Overall Dimension (LxWxH,Guardrail Unfolded) | 2.48X1.19x2.62m |
| Overall Dimension (LxWxH, Guardrail Folded) | 2.48x1.19x2.09m |
| Platform Extension Size | 0.9m |
| Minimum Ground Clearance | 0.1/0.02m |
| Wheelbase | 1.88m |
| Performance | |
| Self Working Load | 320kg |
| Extension Platform Safe Working Load | 113kg |
| Turning Radius (Inner Wheel/Outer Wheel) | 0/2.2m |
| Lifting/Drive Motor | 24V/4.5kw |
| Lifting Speed | 3-5m/min |
| Machine Travel Speed (Retracted State) | 3.5km/h |
| Machine Travel Speed (Lifted State) | 0.8km/h |
| Maximum Climbing Capacity | 25% |
| Maximum Allowable Working Angle | 1.5°/3° |
| Wheels | Ø381x127mm |
Equipment parts

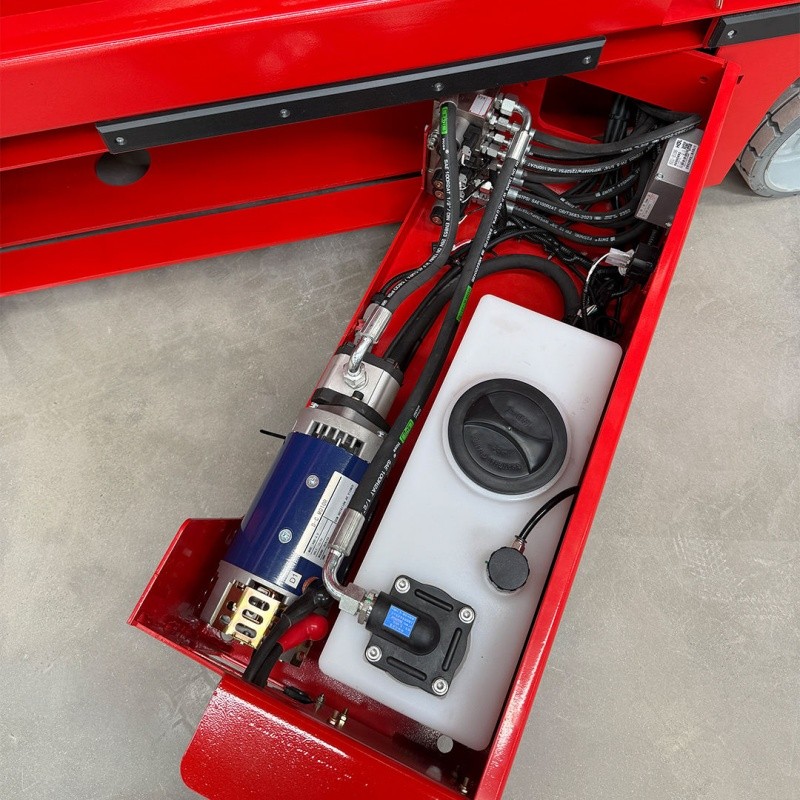

| Hydraulic oil reservoir | Warning lights | power switch |
 |  |  |

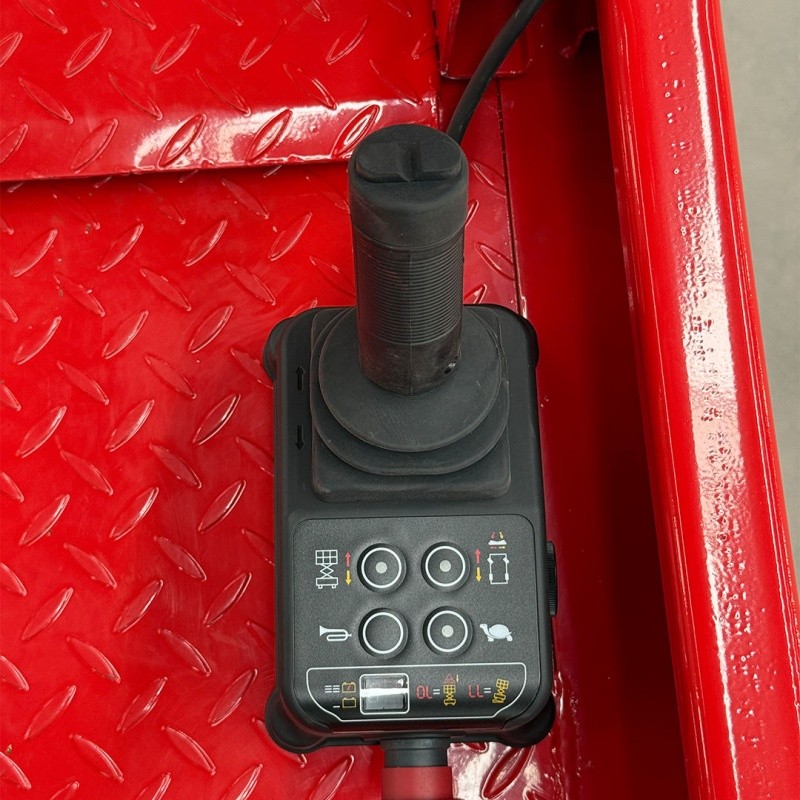

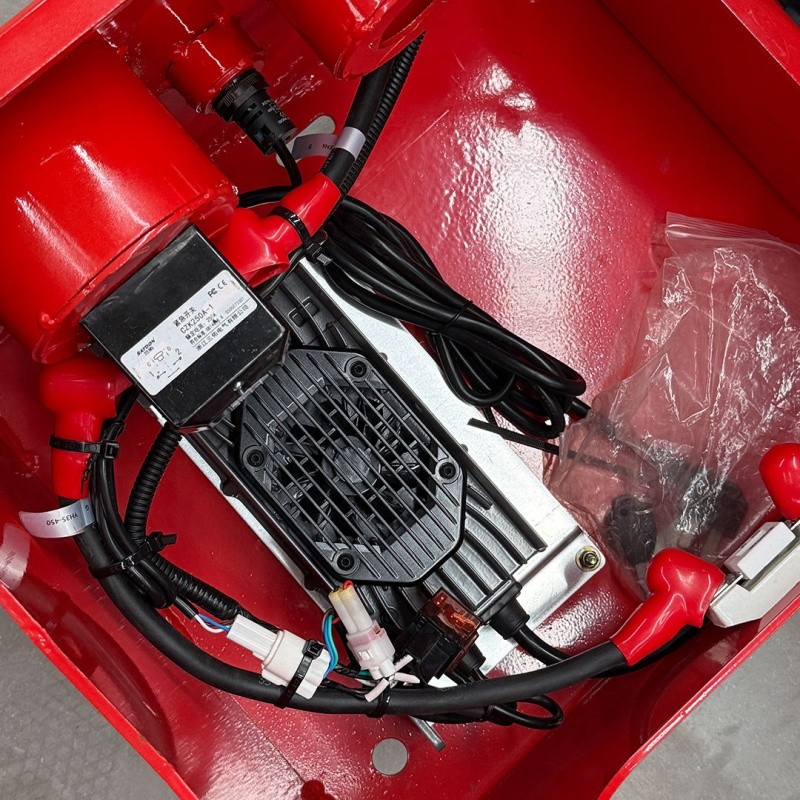

| Battery | handle | Charging port |
 |  |  |
| tire | Emergency switch | Angle sensor |
 |  |  |
