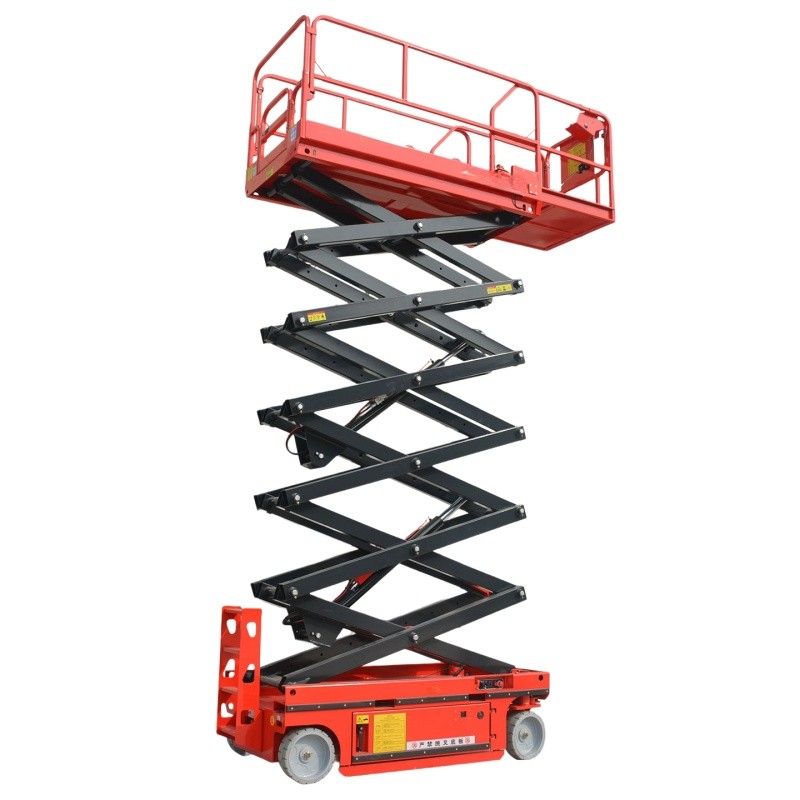

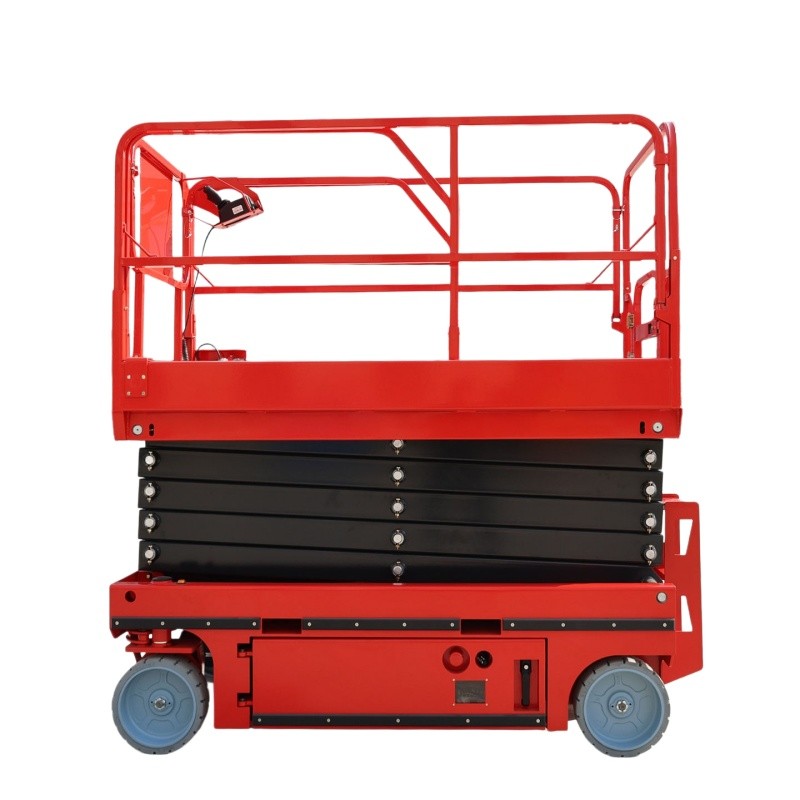

Plataforma de trabajo aéreo totalmente autopropulsada-GTJZD06

Self-propelled Scissor lift 6m

Lifting Height: 4–6m

Platform Capacity : 230–550kg.

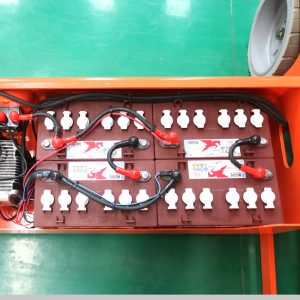

Power Options: AC 220V/380V/DC/Diesel/ Hybrid (Dual Power)

Build Material: High-grade Q235 Carbon Steel.

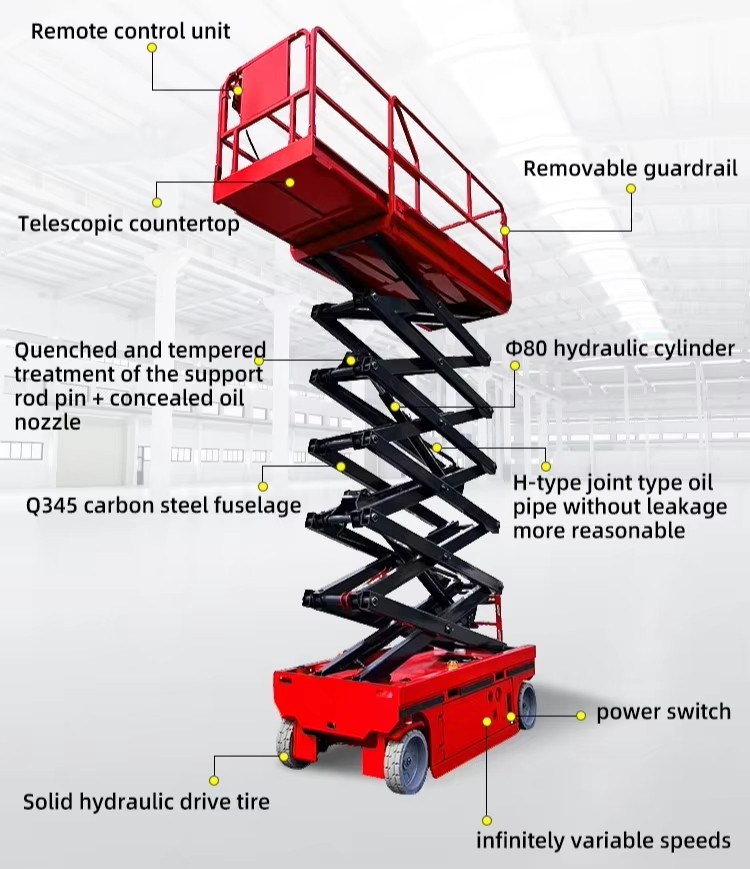

Maintenance: Shaft pins equipped with grease nipples (butter nozzles) for easy lubrication.

Design Details: Integrated tubing grooves to prevent hydraulic hose entanglement; standard pneumatic tires .

PRODUCT DESCRIPTION

High-Efficiency Self-Propelled Scissor Lifts

Our self-propelled scissor lifts offer complete autonomy, eliminating the need for external power or manual towing. Designed for single-operator use, this equipment maximizes job site efficiency and convenience. It is the premier choice for high-altitude tasks, including facility maintenance, industrial cleaning, and structural repairs.

Premium Build & Advanced Safety Systems
Superior Durability: The structure features full-body electrophoresis coating for elite corrosion resistance, paired with salt-bath nitrided, maintenance-free shaft pins.

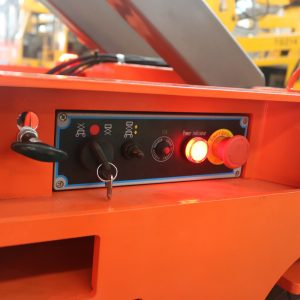

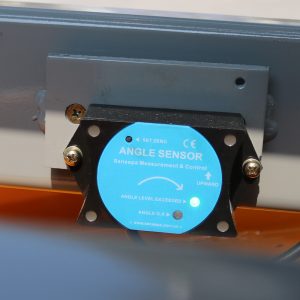

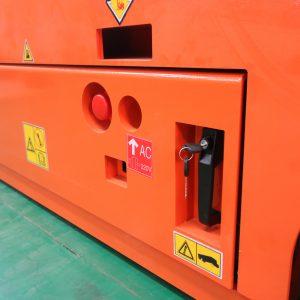

Comprehensive Safety Suite: Fully equipped with overload, pit, and incline protection, plus a redundant emergency system (emergency stop, emergency descent, and secondary descent).

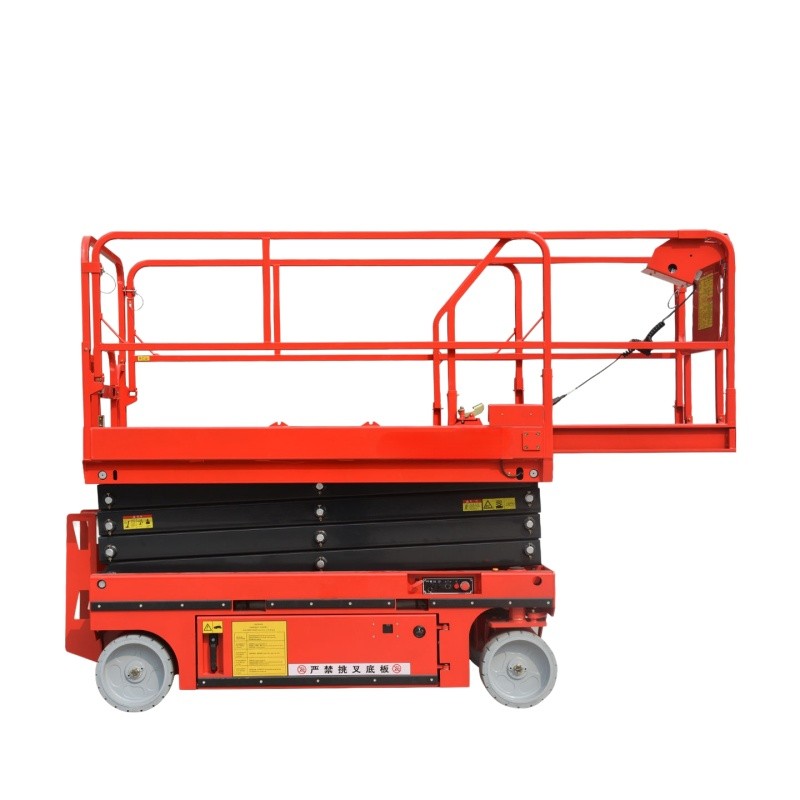

Operational Efficiency: Features a pedal-extended platform for quick access to work points and foldable guardrails for compact storage/transport.
High Performance: Boasts a 25% gradeability for smooth slope navigation.
Smart Maintenance: A swivel-out chassis and automatic fault code display ensure effortless servicing and troubleshooting.

PARAMETERS

Model	GTJZ06	GTJZ06A	GTJZ06
Dimensions
Maximum Working Height	7.8m	7.8m	7.8m
Maximum Platform Height	5.8m	5.8m	5.8m
Working Platform Size (LxWxH)	1.67X0.74X1.1m	2.26x0.81X1.14m	2.29x1.15x1.14m
Overall Dimension (LxWxH,Guardrail Unfolded)	1.83x0.76x2.15m	2.48x0.81x2.24m	2.48x1.19x2.23m
Overall Dimension (LxWxH, Guardrail Folded)	1.83X0.76X1.74m	2.48x0.84X1.77m	2.48X1.19x1.72m
Platfomm Extension Size	0.9m	0.9m	0.9m
Minimum Ground Clearance	0.062/0.029m	0.1/0.02m	0.1/0.02m
Wheelbase	1.36m	1.89m	1.89m
Performance
Safe Working Load	230kg	380kg	550kg
Extended Platform Safe Working Load	113kg	113kg	113kg
Turning Radius (Outer Wheel/lnner Wheel)	0/1.64m	0/2.1m	0/2.2m
Litting/Drive Motor	24V/3.3kw	24V/3.3kw	24V/3.3kw
Lifting Speed	3-5m/min	3-5m/min	3-5m/min
Machine Travel Speed (Retracted State)	3.5km/h	3.5km/h	3.5km/h
Machine Travel Speed (Lifted State)	0.8km/h	0.8km/h	0.8km/h
Maximum Climbing Capacity	25%	25%	25%
Maximum Allowable Working Angle	1.5°/3°	1.5°/3°	1.5%/3°

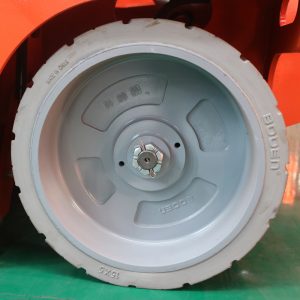

Wheels	Ø305x100mm	Ø381x127mm	Ø381x127mm
