Manual towing/assisted walking/self-propelled/trailer towing/vehicle-mounted
Aluminum alloy work platforms are classified into single-column, double-column and triple-column types. The height increase is available from 4 to 16 meters, and the series of products can carry a load of 130 to 300 kilograms. The equipment is widely used in factories, hotels, restaurants, stations, airports, cinemas, exhibition halls and other places. It can pass through ordinary lobbies and elevators and is extremely convenient to use
PRODUCT DESCRIPTION

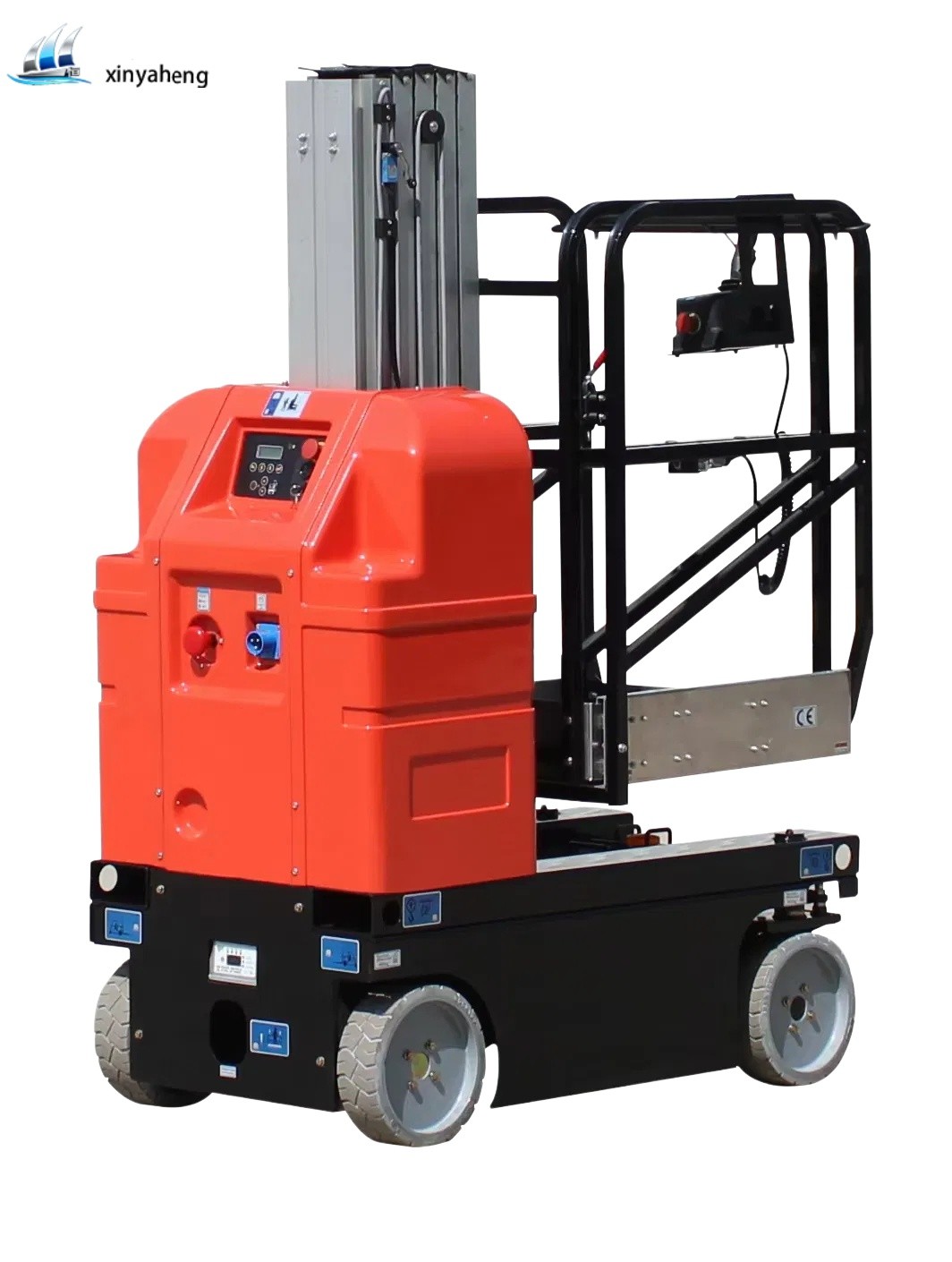

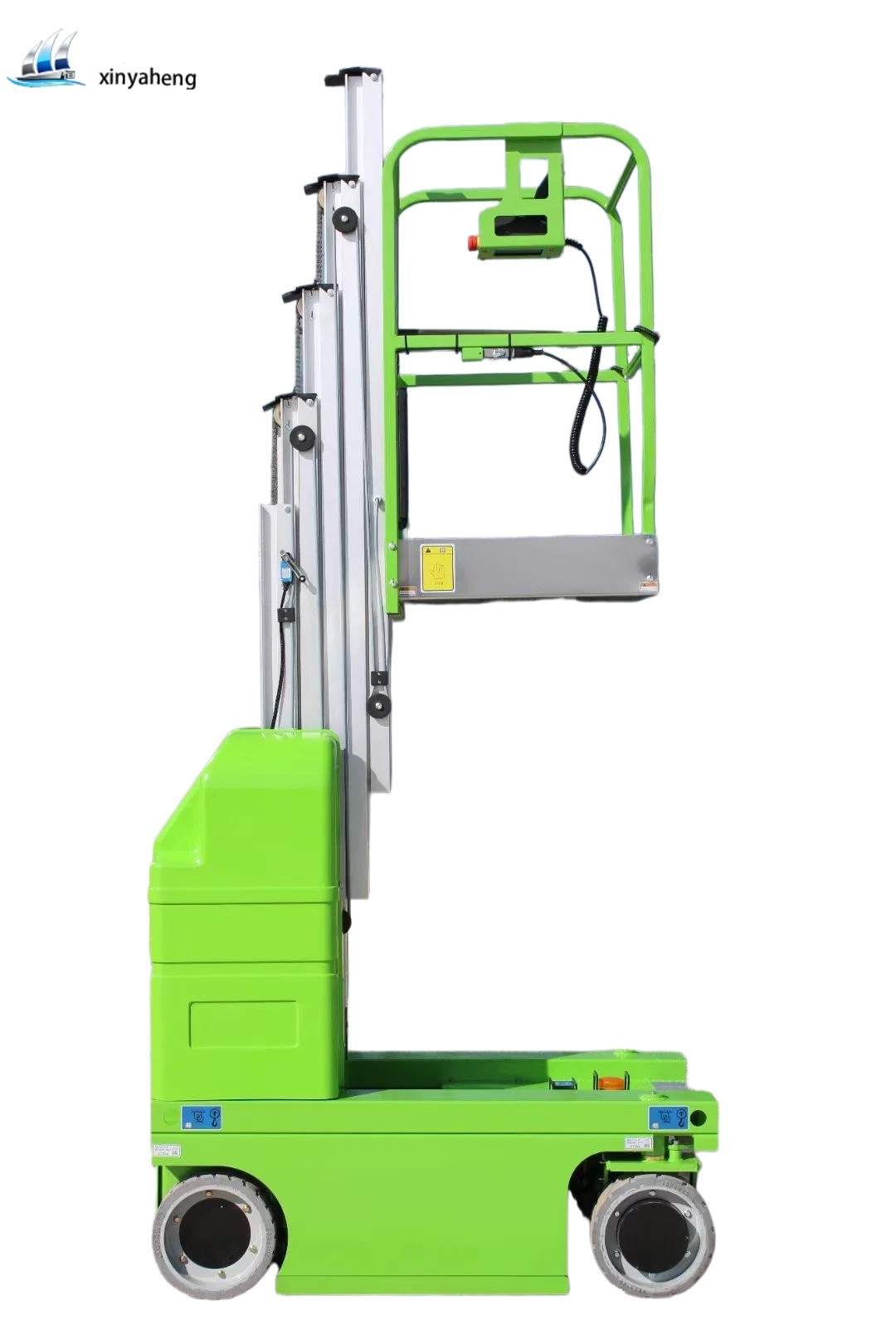

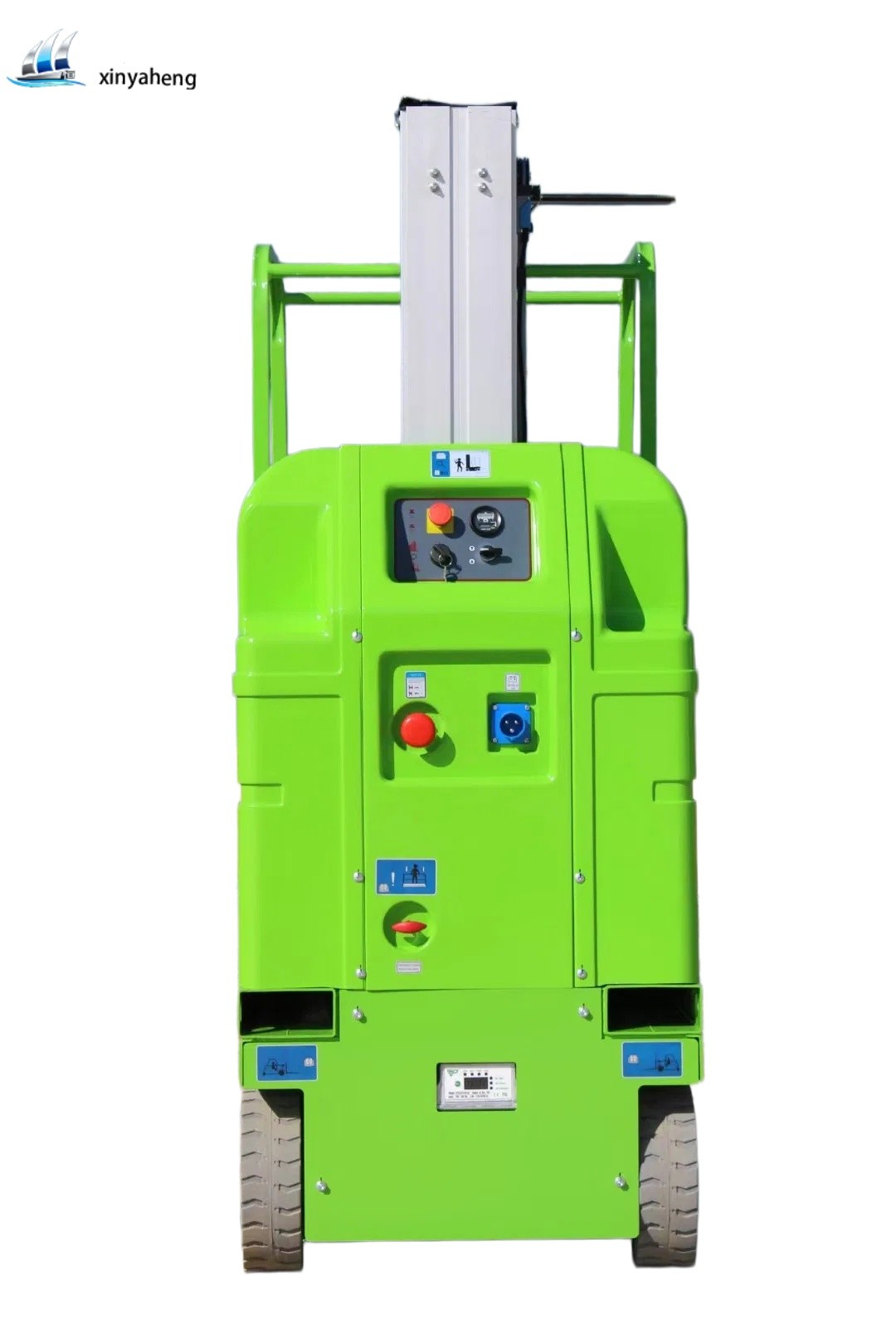

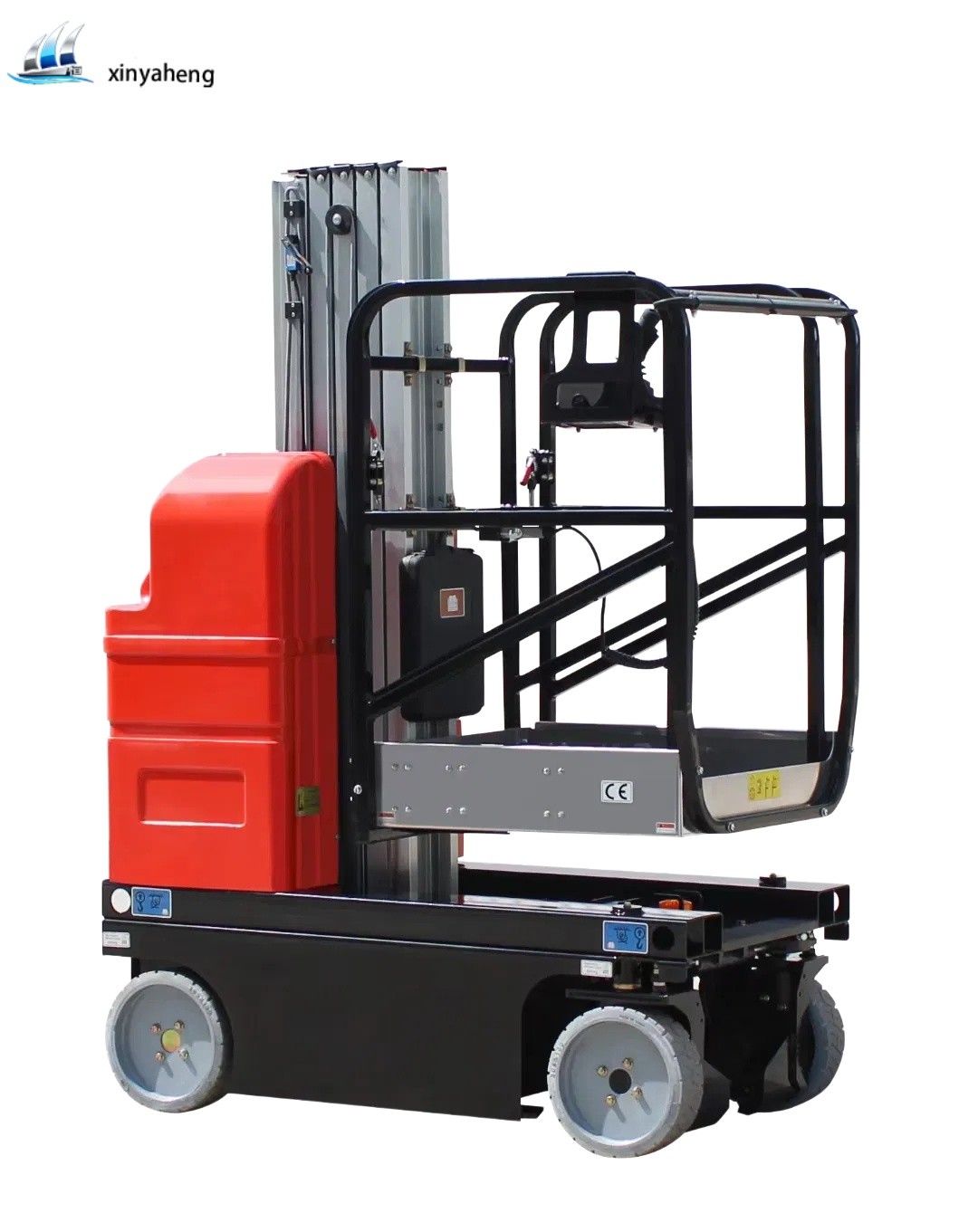

Choose from our versatile range of single, double, triple, and quad-mast lifts. Designed for efficiency, these units feature a lightweight frame that enables easy one-person control and maneuverability. Their minimal footprint translates directly into substantial freight savings and convenient operation in tight spaces.
PRODUCT CUSTOMIZATION We provide tailor-made solutions to ensure our equipment perfectly aligns with your operational requirements. Our extensive customization options include aesthetic branding (colors, logos, and nameplates) as well as technical specifications (power output and voltage configurations) to meet your local standards.
PARAMETERS
| Model(Single Mast Aluminum Alloy) | Height | Rated Load | Platform Size | Power Supply | Total Weight | Overall Dimensions |
| GTWY06-1 | 6m | 150kg | 0.65x0.65m | 24V | 830kg | 1.45x0.768x2.11m |
| GTWY08-1 | 8m | 150kg | 0.65x0.65m | 24V | 880kg | 1.65x0.768x2.11m |
| Model(Double Mast Aluminum Alloy) | Height | Rated Load | Platform Size | Power Supply | Total Weight | Overall Dimensions |
| GTWY04-2 | 4m | 150kg | 0.65x0.9m | 24V | 980kg | 1.336x0.91x1.993m |
| GTWY06-2 | 6m | 150kg | 0.65x0.9m | 24V | 1100kg | 1.336x0.91x1.993m |
| GTWY08-2 | 8m | 150kg | 0.65x0.9m | 24V | 1136kg | 1.336x0.91X1.993m |
| Product Advantages | Made of high-strength, high-quality aluminum alloy material with Q235 steel plate reinforced chassis to prevent collision, compatible with forkliftfor quick transportation, equipped with standard control handle foreasy operation by aerial workers, saving time and improving efficiency | |||||
| Application Areas | Suitable for factories, hotels, restaurants, stations, airports,cinemas, exhibition halls and other places can pass through general hallways andelevators, extremely easy to use; ideal safety companion for equipment maintenance, painting, lamp and electricalreplacement, cleaning andmaintenance. | |||||
PRODUCT DETAILS
Performance: 4–18m Height | 100–200kg Load Capacity.
Material: High-strength, premium-grade aluminum alloy.
Portability: Compact design for doorway/elevator access; one-person maneuverability.
Drive & Tires: Low-noise polyurethane wheels; safe for all indoor flooring.
Control: Dual-control system (Platform + Remote Control).
Safety: Equipped with protective wire ropes and emergency safety devices.
