Hydraulic/rear axle/mini
This series of products can lift 3 to 14 meters and carry a load of 230 to 550 kilograms. It has the function of automatic walking and can move fast or slow in different working conditions. Only one person can operate the machine to continuously complete actions such as raising, moving forward, moving backward and turning when working at heights. It is suitable for large-scale continuous high-altitude operations in airport terminals, stations, docks, shopping malls, etc
PRODUCT DESCRIPTION

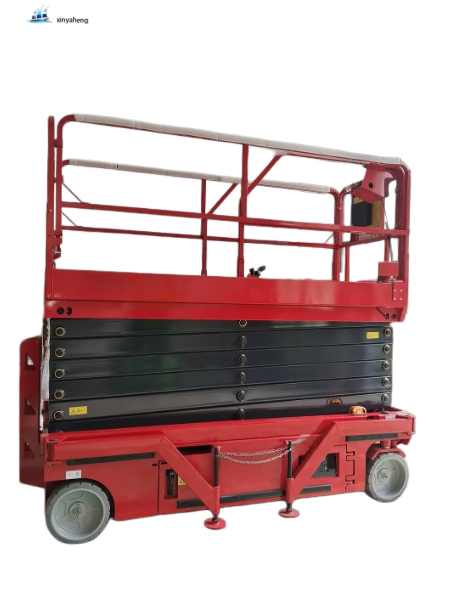

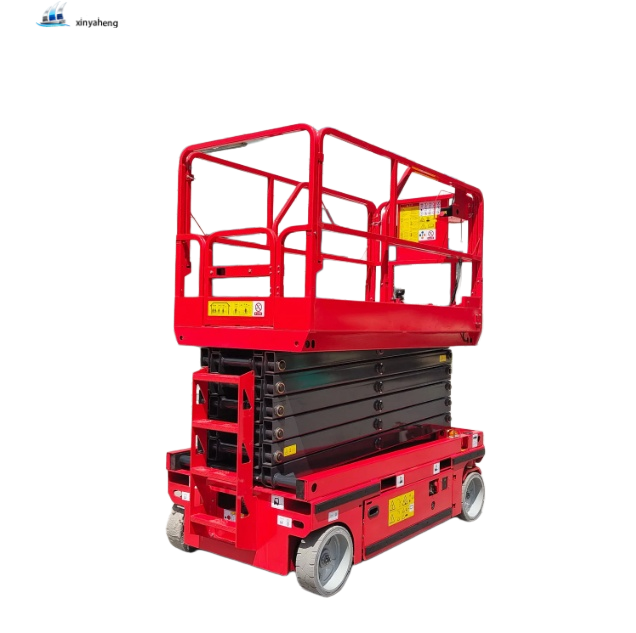

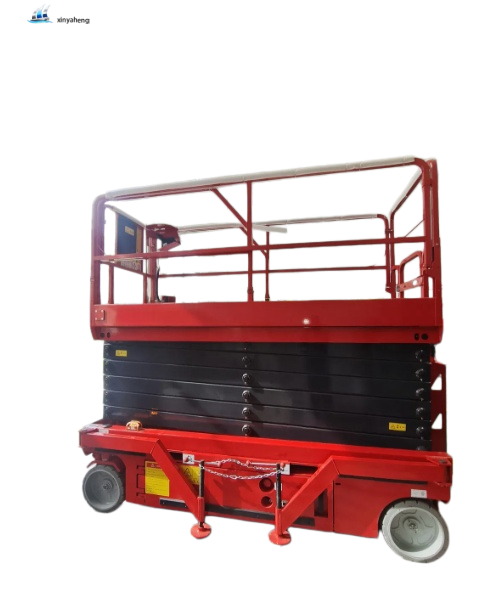

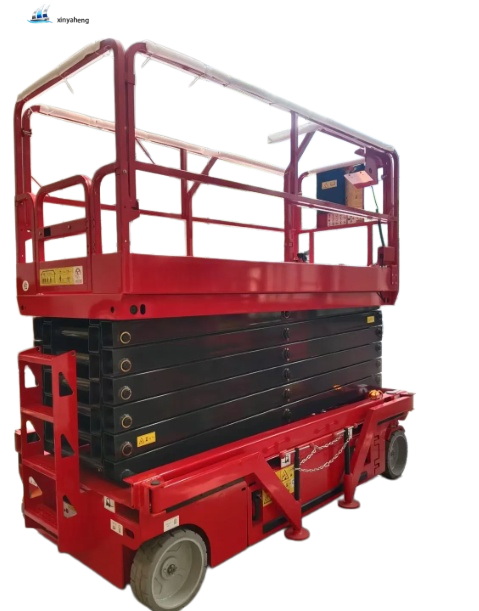

High-Efficiency Self-Propelled Scissor Lifts
Our self-propelled scissor lifts offer complete autonomy, eliminating the need for external power or manual towing. Designed for single-operator use, this equipment maximizes job site efficiency and convenience. It is the premier choice for high-altitude tasks, including facility maintenance, industrial cleaning, and structural repairs.
Platform Heights: 3m to 14m
Load Capacity: 230kg to 550kg
PARAMETERS
| Model | GTJZ06 | GTJZ06A | GTJZ06 |
| Dimensions | |||
| Maximum Working Height | 7.8m | 7.8m | 7.8m |
| Maximum Platform Height | 5.8m | 5.8m | 5.8m |
| Working Platform Size (LxWxH) | 1.67X0.74X1.1m | 2.26x0.81X1.14m | 2.29x1.15x1.14m |
| Overall Dimension (LxWxH,Guardrail Unfolded) | 1.83x0.76x2.15m | 2.48x0.81x2.24m | 2.48x1.19x2.23m |
| Overall Dimension (LxWxH, Guardrail Folded) | 1.83X0.76X1.74m | 2.48x0.84X1.77m | 2.48X1.19x1.72m |
| Platfomm Extension Size | 0.9m | 0.9m | 0.9m |
| Minimum Ground Clearance | 0.062/0.029m | 0.1/0.02m | 0.1/0.02m |
| Wheelbase | 1.36m | 1.89m | 1.89m |
| Performance | |||
| Safe Working Load | 230kg | 380kg | 550kg |
| Extended Platform Safe Working Load | 113kg | 113kg | 113kg |
| Turning Radius (Outer Wheel/lnner Wheel) | 0/1.64m | 0/2.1m | 0/2.2m |
| Litting/Drive Motor | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw |
| Lifting Speed | 3-5m/min | 3-5m/min | 3-5m/min |
| Machine Travel Speed (Retracted State) | 3.5km/h | 3.5km/h | 3.5km/h |
| Machine Travel Speed (Lifted State) | 0.8km/h | 0.8km/h | 0.8km/h |
| Maximum Climbing Capacity | 25% | 25% | 25% |
| Maximum Allowable Working Angle | 1.5°/3° | 1.5°/3° | 1.5%/3° |
| Wheels | Ø305x100mm | Ø381x127mm | Ø381x127mm |
PRODUCT CUSTOMIZATION
We offer tailor-made solutions to ensure our equipment perfectly aligns with your specific operational requirements. Our extensive customization options include personalized color schemes, branding, logos, and nameplates, allowing the final product to reflect your professional identity.
PRODUCT DETAILS
Premium Build & Advanced Safety Systems
Superior Durability: The structure features full-body electrophoresis coating for elite corrosion resistance, paired with salt-bath nitrided, maintenance-free shaft pins.
Comprehensive Safety Suite: Fully equipped with overload, pit, and incline protection, plus a redundant emergency system (emergency stop, emergency descent, and secondary descent).
Operational Efficiency: Features a pedal-extended platform for quick access to work points and foldable guardrails for compact storage/transport.
High Performance: Boasts a 25% gradeability for smooth slope navigation.
Smart Maintenance: A swivel-out chassis and automatic fault code display ensure effortless servicing and troubleshooting.
