Hydraulic/rear axle/mini

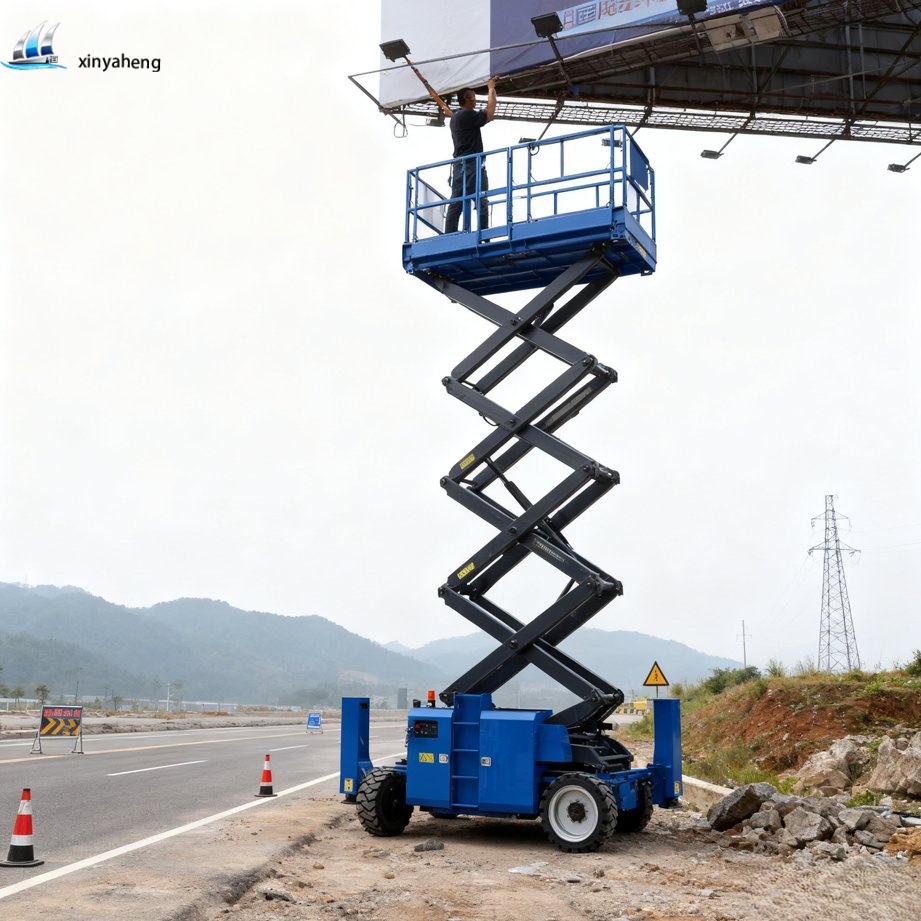

This series of products can lift 3 to 14 meters and carry a load of 230 to 550 kilograms. It has the function of automatic walking and can move fast or slow in different working conditions. Only one person can operate the machine to continuously complete actions such as raising, moving forward, moving backward and turning when working at heights. It is suitable for large-scale continuous high-altitude operations in airport terminals, stations, docks, shopping malls, etc
PRODUCT DESCRIPTION

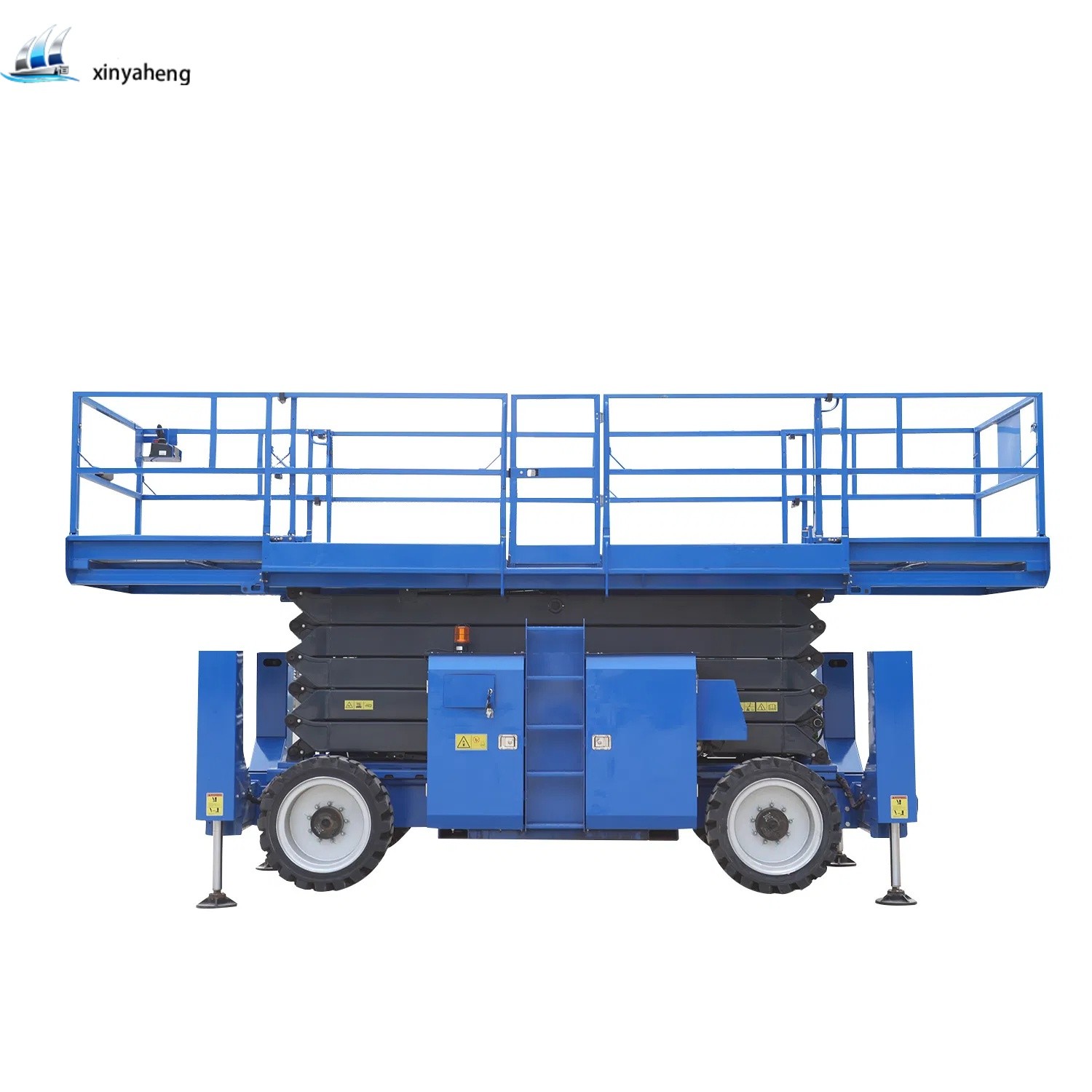

High-Efficiency Self-Propelled Scissor Lifts
Our self-propelled scissor lifts offer complete autonomy, eliminating the need for external power or manual towing. Designed for single-operator use, this equipment maximizes job site efficiency and convenience. It is the premier choice for high-altitude tasks, including facility maintenance, industrial cleaning, and structural repairs.
Platform Heights: 3m to 14m
Load Capacity: 230kg to 550kg
PARAMETERS
| MODEL | PT1618C |
| Max Working Height | 17.8m |
| Max Platform Height | 15.8m |
| Standard Load | 680KG |
| Max Working Persons on Platform | 4人 |
| Length (Retracted) | 4.88m |
| Width (Retracted) | 2.29m |
| Stowed Height (Guardrail Unfolded) | 3.19m |
| Stowed Height (Guardrail Folded) | 2.63m |
| Platform Size (LWH) | 4.24*1.83m*1.1m |
| Platform | 1.3m |
| Wheelbase | 2.84m |
| nner Turning Radius | 2.4m |
| Outer Turning Radius | 5.5m |
| Travel Speed (Retracted) | 6.1km/h |
| Travel Speed (Lifted) | 0.5km/h |
| Gradeability (Retracted) | 45% |
| Tires | 33*12-20 |
| Hydraulic Oil Tank | 110L |
| Diesel Fuel Tank | 150L |
| Ground Clearance | 0.2m |
| Power Source (Battery) | YangMAR/weichai |
| Max Working Allowable Inclination (Lateral, Longitudinal) | 2°/3° |
| TotalWeight | ≤8800kg |
| Device Configuration | Product Features |
| Proportionalcontrol | Foot pedal extension platform can be deployed bidirectionally to the work point. |
| Buzzer | |
| Strobe light | Foldable guardrail reduces the overall size of the machine. |
| Dual-direction extension platform | |
| Foldableguardrail | Full solid tires with strong grip performance. |
| Horn | |
| Stepless speed change | |
| Platform self-locking door | 200mm ground clearance with excellent passability. |
| One-click quickleveling | |
| Hourmeter | 45% climbing ability, can smoothly climb slopes. |
| Automatic brakingsystem | |
| Fault diagnosis system | Fault codes are automatically displayed for easy troubleshooting. |
| Emergency descent system | |
| Charging protection system | Suitable for uneven and special ground surfaces. |
| Emergency stop button | |
| Tilt protection system | |
| Oil pipe explosion-proof system | |
| Audible alarm system | |

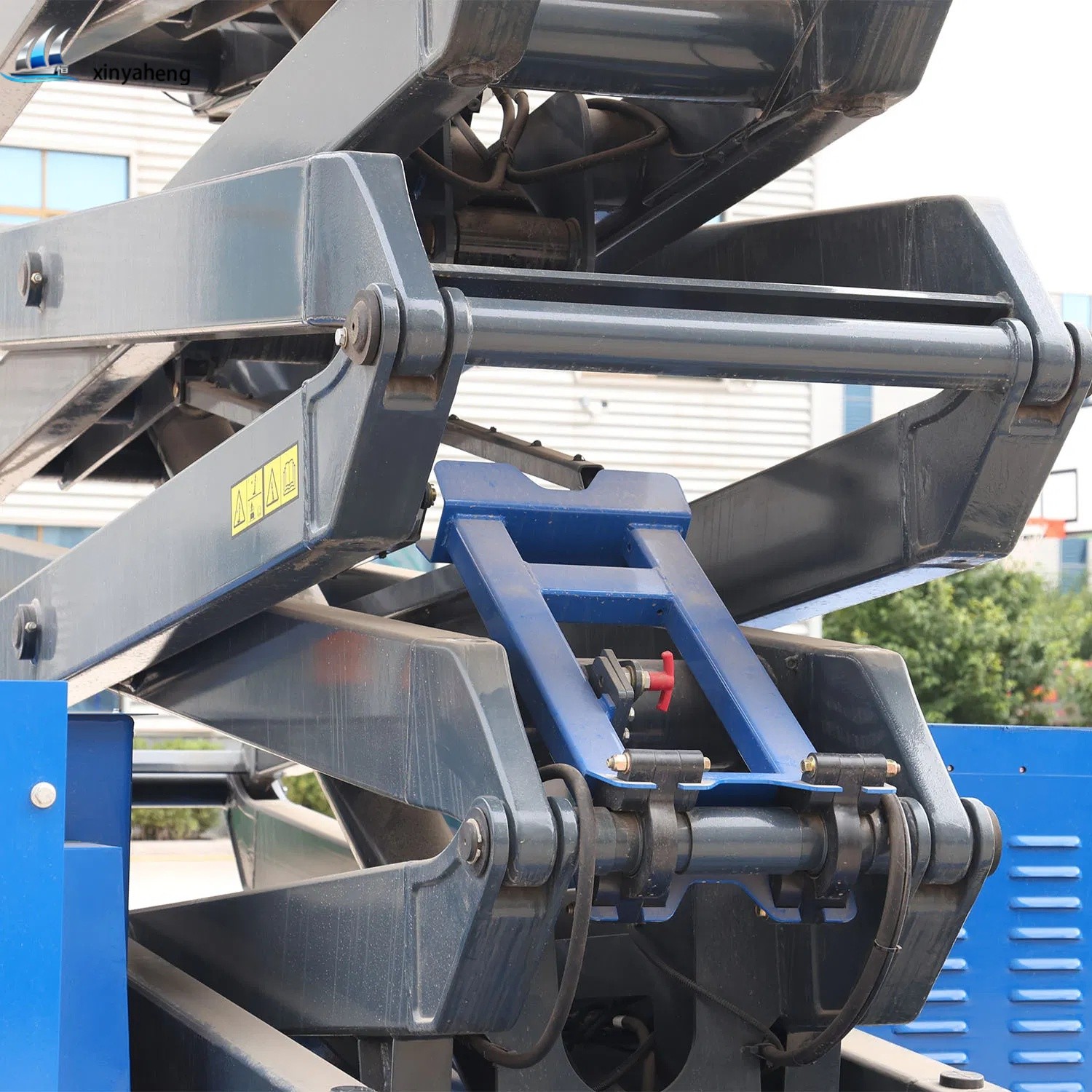

| Safety maintenance support rod | |

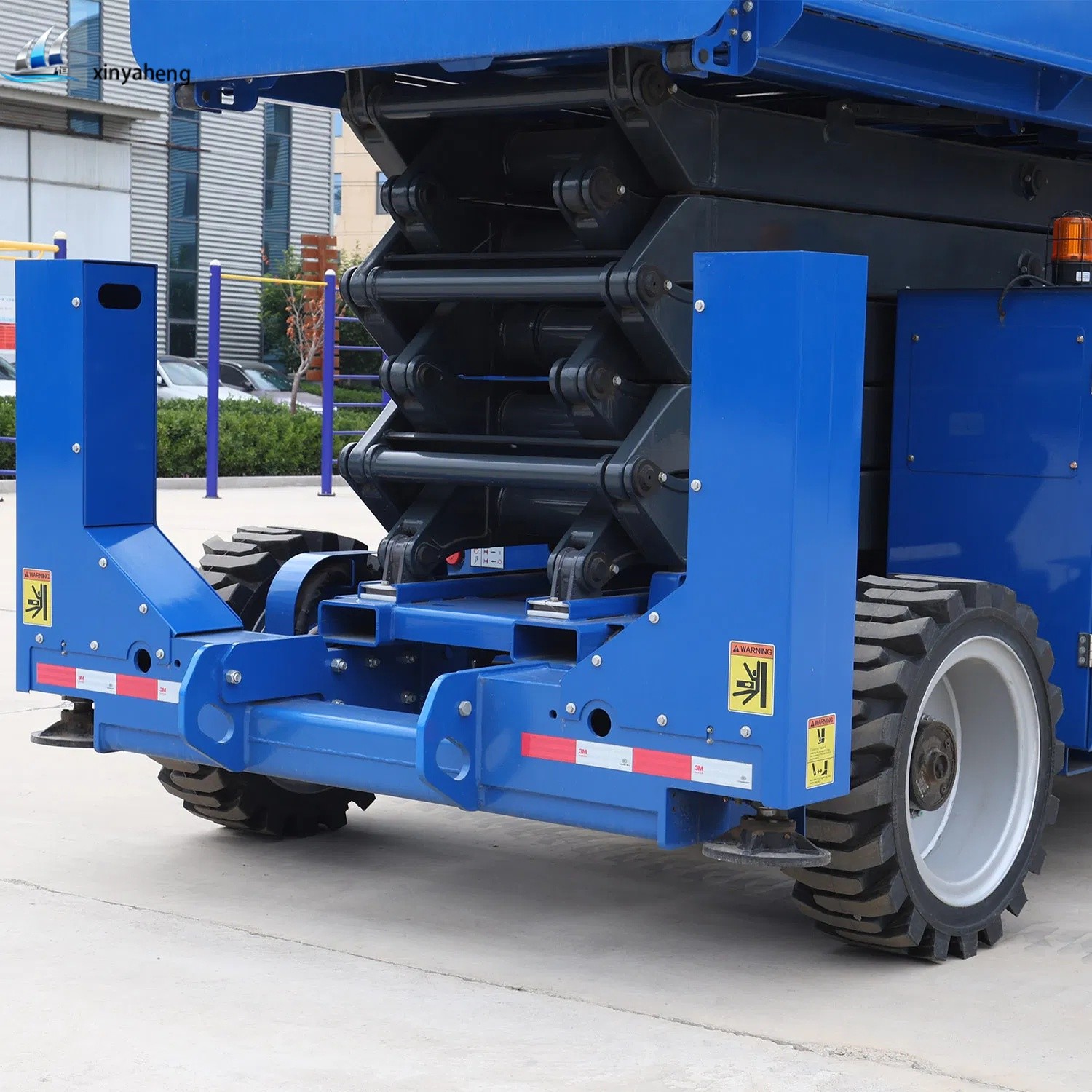

| Forklift pockets |
PRODUCT CUSTOMIZATION
We offer tailor-made solutions to ensure our equipment perfectly aligns with your specific operational requirements. Our extensive customization options include personalized color schemes, branding, logos, and nameplates, allowing the final product to reflect your professional identity.
PRODUCT DETAILS
Premium Build & Advanced Safety Systems
Superior Durability: The structure features full-body electrophoresis coating for elite corrosion resistance, paired with salt-bath nitrided, maintenance-free shaft pins.
Comprehensive Safety Suite: Fully equipped with overload, pit, and incline protection, plus a redundant emergency system (emergency stop, emergency descent, and secondary descent).

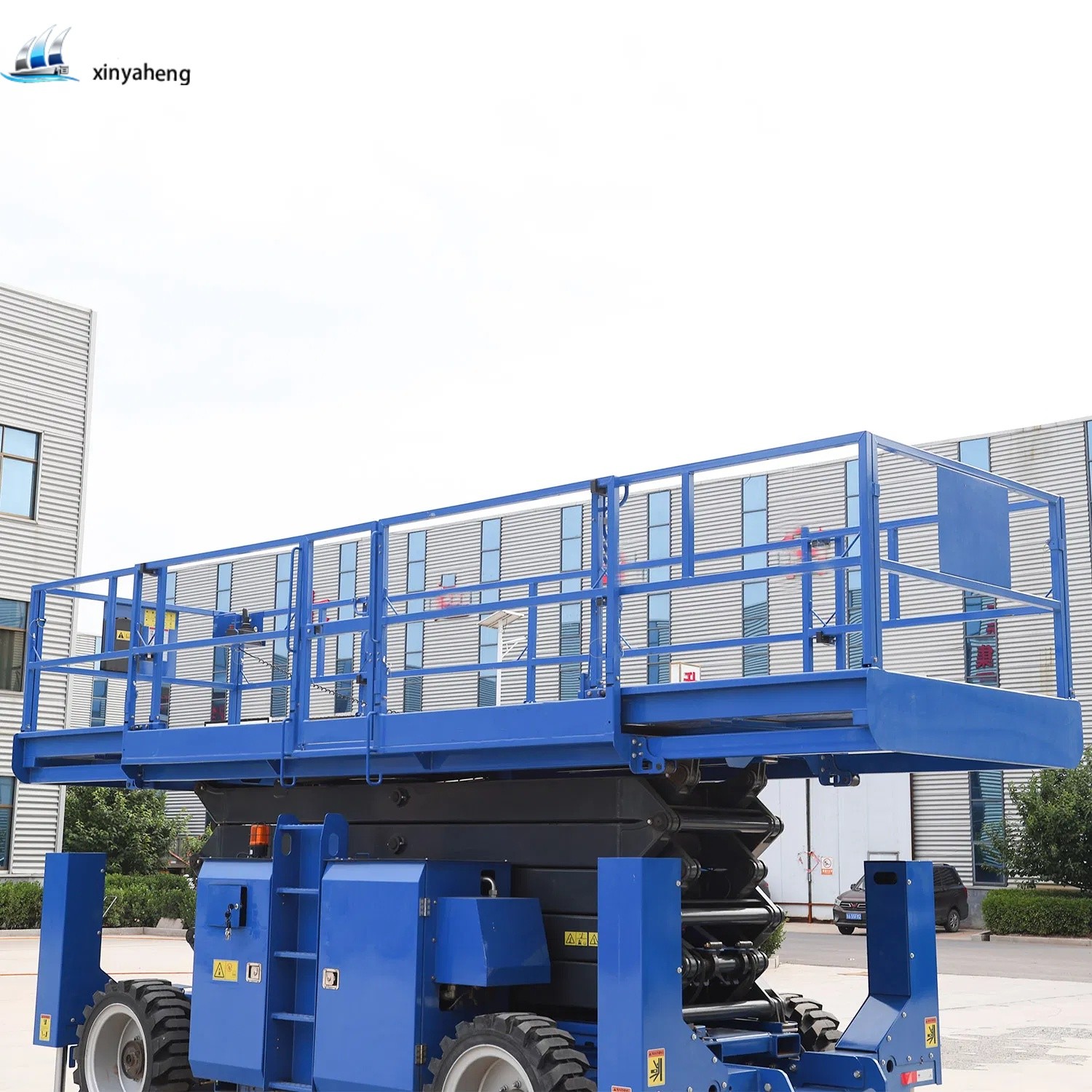

Operational Efficiency: Features a pedal-extended platform for quick access to work points and foldable guardrails for compact storage/transport.
High Performance: Boasts a 25% gradeability for smooth slope navigation.
Smart Maintenance: A swivel-out chassis and automatic fault code display ensure effortless servicing and troubleshooting.
