Plataforma de trabajo aéreo totalmente autopropulsada-DZ

Self-propelled Scissor lift-DZ

Lifting Height: 4–8m

Platform Capacity : 300–550kg.

Power Options: AC 220V/380V/DC/Diesel/ Hybrid (Dual Power)

Build Material: High-grade Q235 Carbon Steel.

Maintenance: Shaft pins equipped with grease nipples (butter nozzles) for easy lubrication.

Design Details: Integrated tubing grooves to prevent hydraulic hose entanglement; standard pneumatic tires .

PRODUCT DESCRIPTION

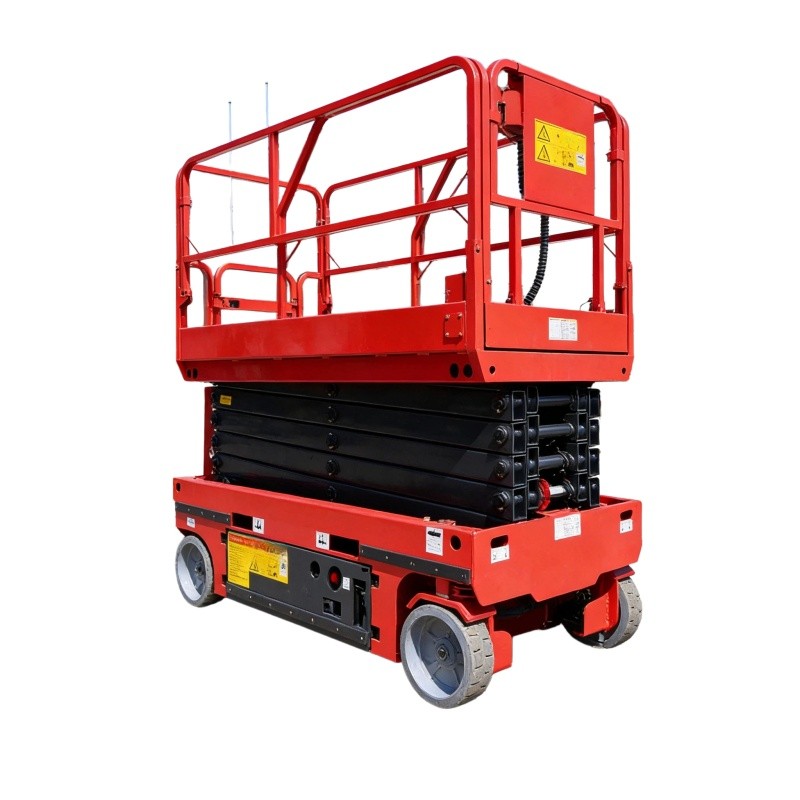

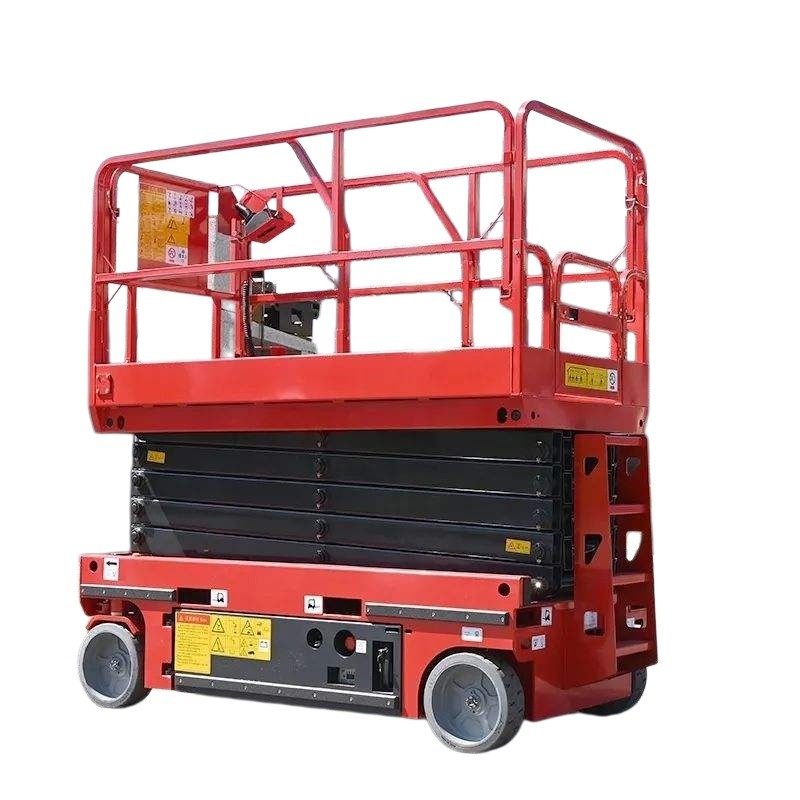

High-Efficiency Self-Propelled Scissor Lifts

Our self-propelled scissor lifts offer complete autonomy, eliminating the need for external power or manual towing. Designed for single-operator use, this equipment maximizes job site efficiency and convenience. It is the premier choice for high-altitude tasks, including facility maintenance, industrial cleaning, and structural repairs.

Premium Build & Advanced Safety Systems
Superior Durability: The structure features full-body electrophoresis coating for elite corrosion resistance, paired with salt-bath nitrided, maintenance-free shaft pins.
Comprehensive Safety Suite: Fully equipped with overload, pit, and incline protection, plus a redundant emergency system (emergency stop, emergency descent, and secondary descent).
Operational Efficiency: Features a pedal-extended platform for quick access to work points and foldable guardrails for compact storage/transport.
High Performance: Boasts a 25% gradeability for smooth slope navigation.
Smart Maintenance: A swivel-out chassis and automatic fault code display ensure effortless servicing and troubleshooting.

PARAMETERS

Model	DZ04T	DZ06T
Dimensions
Max Working Height	5.8m	7.8m
Max Platform Height	3.8m	5.8m
Working Platform Size (LxWxH)	2.29x1.13x1.1m	2.29x1.13x1.1m
Overall Dimension (LxWxH,Guardrail Unfolded)	2.48X1.19x2.19m	2.48X1.19x2.19m
Overall Dimension (LxWxH, Guardrail Folded)	2.48X1.19x1.68m	2.48X1.19x1.68m
Platform Extension Size	2.8m	2.8m
Minimum Ground Clearance	0.1/0.02m	0.1/0.02m
Wheelbase	1.89m	1.89m
Performance
Self Working Load	550kg	450kg
Extension Platform Safe Working Load	150kg	120kg
Turning Radius (Inner Wheel/Outer Wheel)	0/2.2m	0/2.2m
Lifting/Drive Motor	24V/3.3kw	24V/3.3kw
Lifting Speed	3-5m/min	3-5m/min
Machine Travel Speed (Retracted State)	3.5km/h	3.5km/h
Machine Travel Speed (Lifted State)	0.8km/h	0.8km/h
Maximum Climbing Capacity	25%	25%
Maximum Allowable Working Angle	1.5°/3°	1.5°/3°
Wheels	Ø381x127mm	Ø381x127mm
Power
Battery	4X6V/200ah	4x6V/200ah
Lithium Battery (Optional)	24V/230ah	24V/230ah
charger	24V/30A	24V/30A
Weight
Overall Weight	2150kg	2260kg
