Load Capaity：200kg
Working Height：12m or Customized
Rotation Range：360/359
Platform Size：700/900/1100mm
Certification：GS, CE, RoHS, ISO 9001
PRODUCT DESCRIPTION

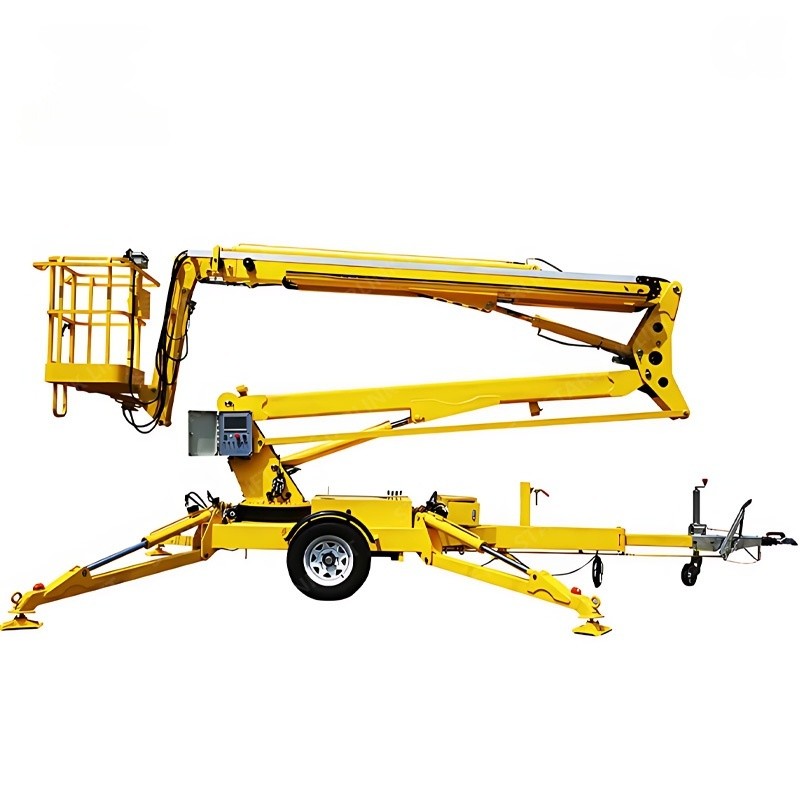

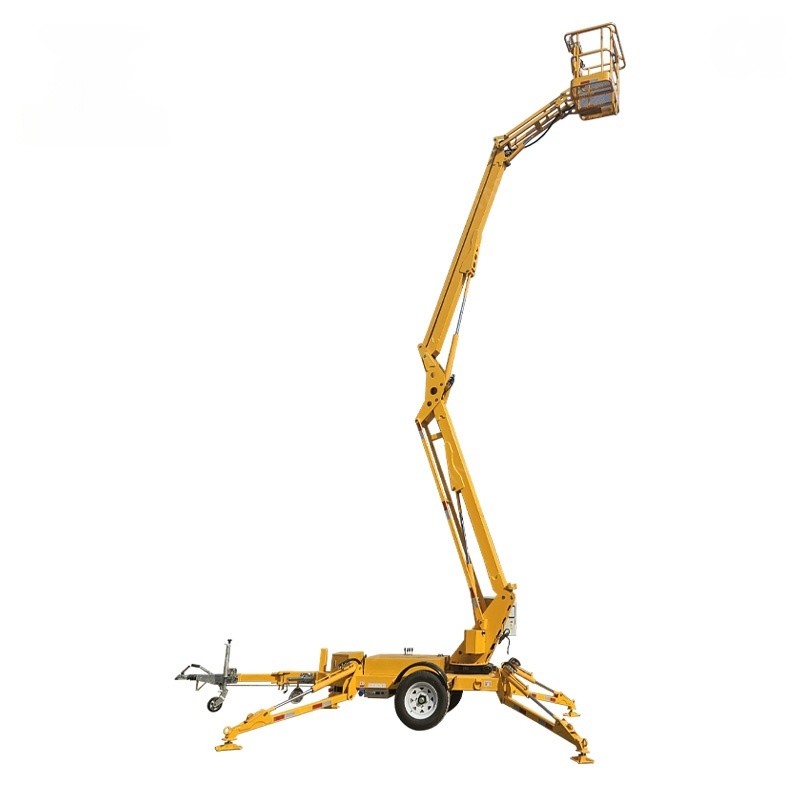

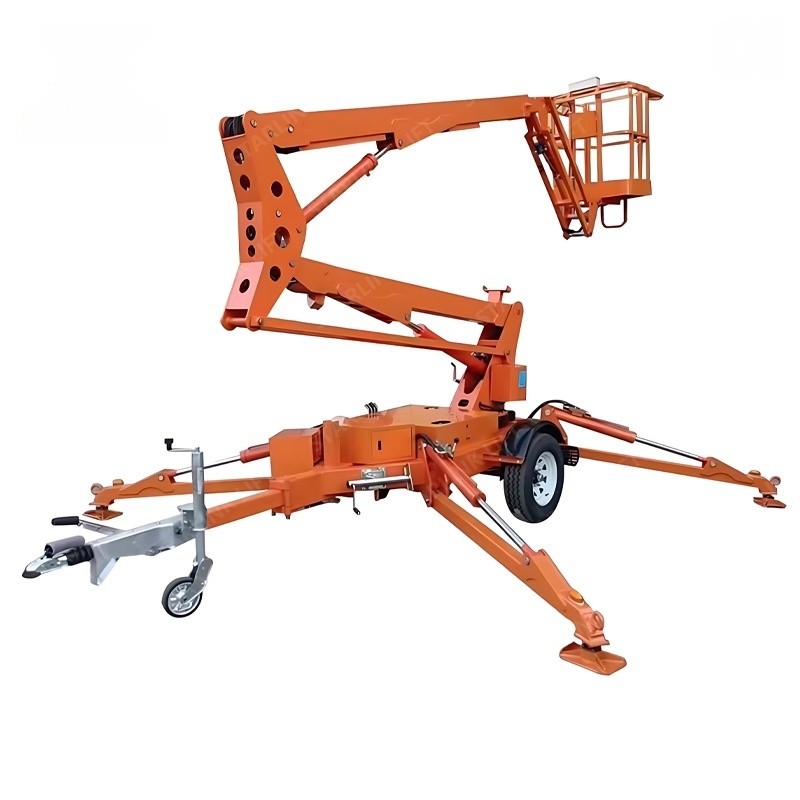

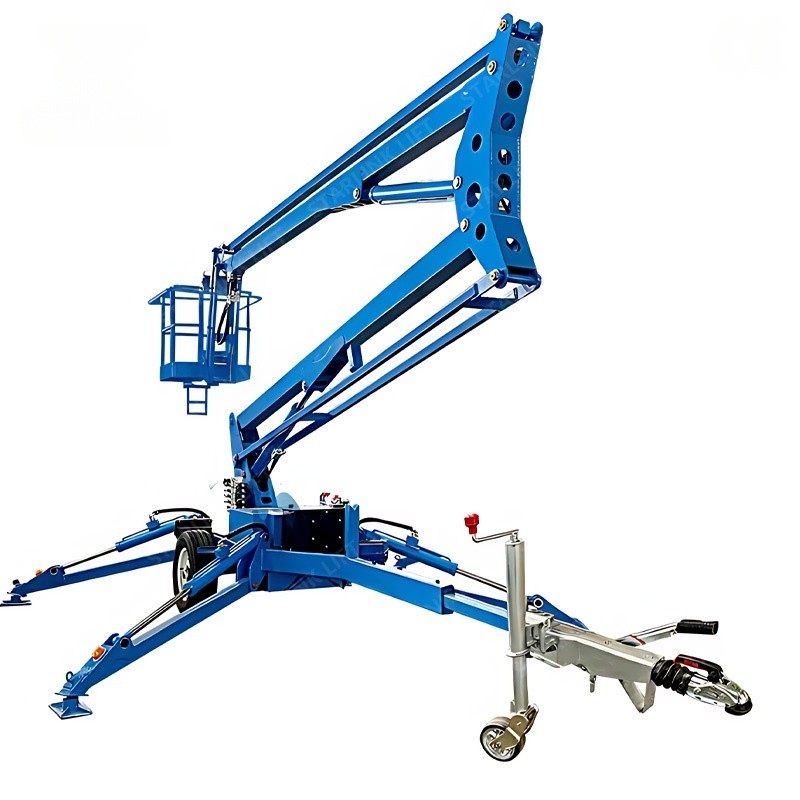

Trailer-Mounted Boom Lift: High-Performance Aerial Solution
Our trailer-mounted boom lifts offer platform heights ranging from 8m to 20m with a 200kg load capacity.
Structure & Material: Engineered with a new generation of high-grade, high-strength steel, the boom balances a lightweight design with maximum structural integrity.
Power Versatility: Available in AC, DC, Diesel, or Hybrid (Dual Power) configurations. The system supports direct AC startup for immediate operation.
Operational Range: Features a 360-degree continuous rotation and an extensive working radius, allowing for superior accessibility in complex environments.

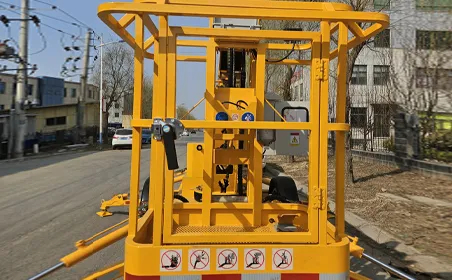

Dimensions: A spacious 1.2*0.8m platform with 1.1m safety guardrails ensures a secure workspace.
PRODUCT DETAILS
Advanced Performance & Mobility
Terrain Adaptability: Engineered to overcome obstacles with rapid deployment and automatic hydraulic outriggers.
Precision Leveling: Each support leg is independently adjustable to ensure a perfectly level platform on uneven terrain.
Efficient Reach: Enables multi-point operations from a single position, eliminating the need for frequent repositioning.
Seamless Transport: The trailer-mounted design allows for easy, high-speed towing and immediate site access.
Versatile Applications: Ideal for municipal work, power utilities, street lighting, advertising, and docks, even in rugged outdoor environments.
| Model | TGZ08 | TGZ10 | TGZ12 | TGZ14 | TGZ16 | TGZ18 | TGZ20 |
| Max. Working Height | 10m | 12m | 14m | 16m | 18m | 20m | 22m |
| Max. Platform Height | 8m | 10m | 12m | 14m | 16m | 18m | 20m |
| Max. Loading Capacity | 200Kg | 200Kg | 200Kg | 200Kg | 200Kg | 200Kg | 200Kg |

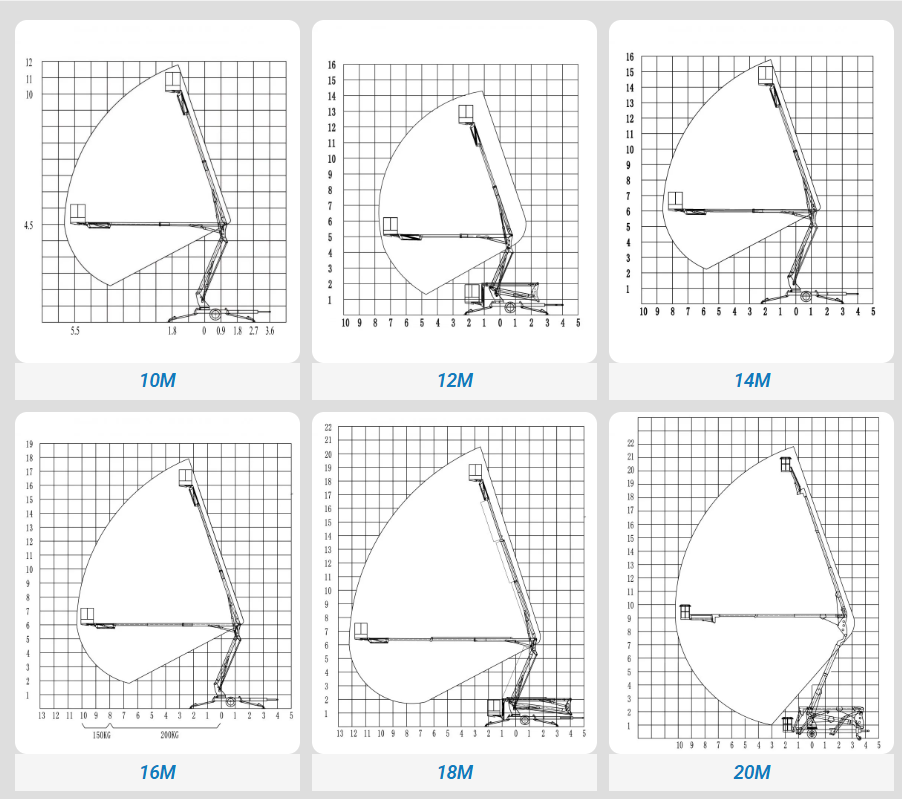

| Max. Working Distance | 4.5m | 5.7m | 6.4m | 8.5m | 9.5m | 10.9m | 12.5m |
| Platform Size(L*W*H) | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m |
| Transportation Size(L*W*H) | 5.2X1.585X1.9m | 5.4X1.665X1.9m | 6.4X1.665X1.9m | 6.0X1.73X2.1m | 7.0X2.73X2.2m | 7.1X1.85X2.26m | 7.7X1.85X2.26m |
| Outrigger span (Vertical*Horizontal) | 3.4X3.2m | 3.7X3.45m | 3.7X3.45m | 3.97X4.18m | 4.2X4.3m | 4.94X4.76m | 5.14X4.76m |
| Turntable Rotation Angle | 360 Degree | 360 Degree | 360 Degree | 360 Degree | 360 Degree | 360 Degree | 360 Degree |
| Platform Rotation Angle | 160 Degree | 160Degree | 160Degree | 160Degree | 160Degree | 160Degree | 160Degree |
| Tyre | 185/75R14C | 185/75R14C | 185/75R14C | 215/75R16C | 215/75R16C | 215/75R16C | 215/75R16C |
| Control | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Weight | 1538Kg | 1600Kg | 1800Kg | 2350Kg | 2900Kg | 4300Kg | 4450Kg |
| Diesel Powered | 10HP | 10HP | 10HP | 12HP | 12HP | 15HP | 15HP |
| DC pumping station | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) |
| Battery | 4X6V 180Ah(Optional Configuration) | 4X6V 180Ah(Optional Configuration) | 4X6V 180Ah(Optional Configuration) | 4X6V 180Ah(Optional Configuration) | 4X6V 180Ah(Optional Configuration) | 4X6V 210Ah(Optional Configuration) | 4X6V 210Ah(Optional Configuration) |
| AC | 380V/1.5KW or 220V/2.2KW | 380V/1.5KW or 220V/2.2KW | 380V/1.5KW or 220V/2.2KW | 380V/1.5KW or 220V/2.2KW | 380V/1.5KW or 220V/2.2KW | 380V/2.2KW or 220V/2.2KW | 380V/2.2KW or 220V/2.2KW |
Product Components

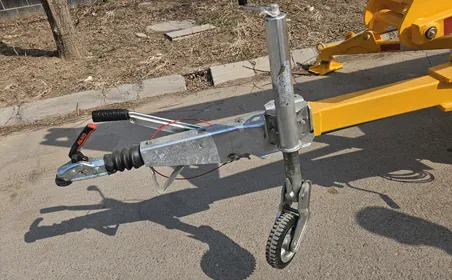

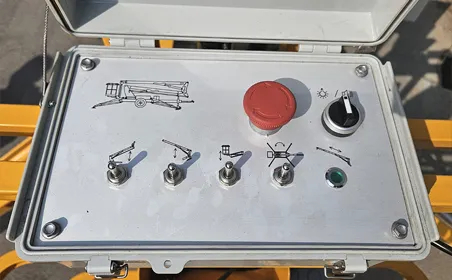

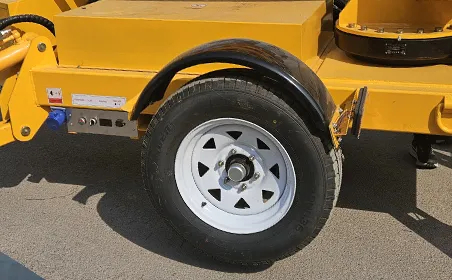

| Manual Console | Traction Hook | Tires |
 |  |  |

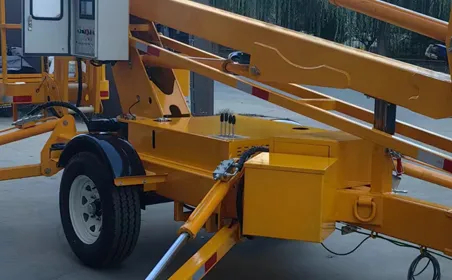

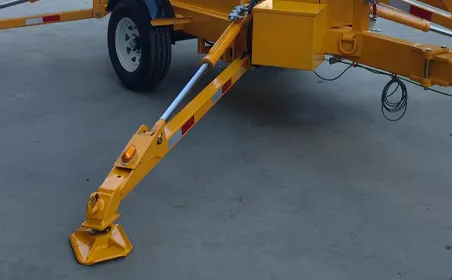

| Outrigger | Special Chassis | Operating Device |
 |  |  |
