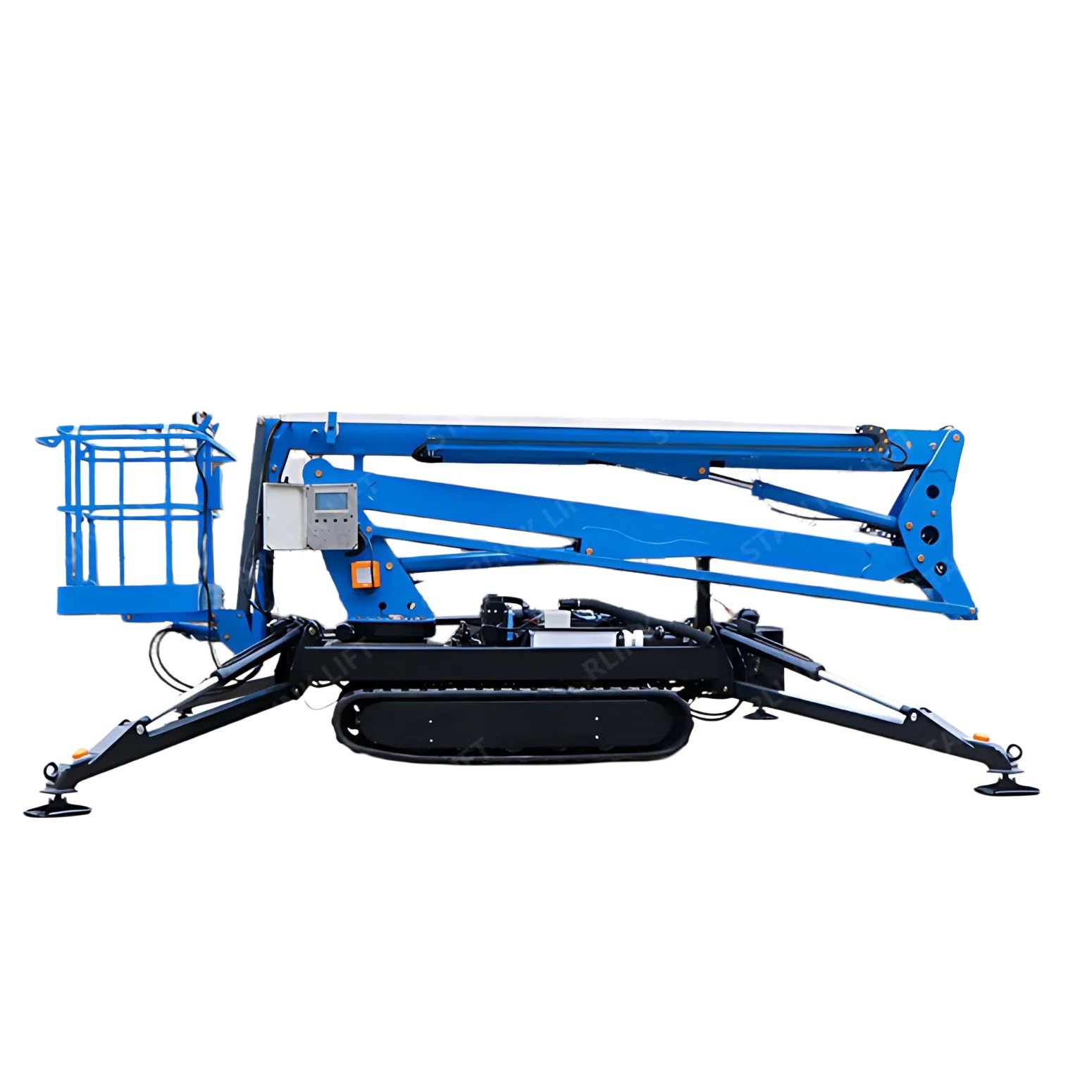

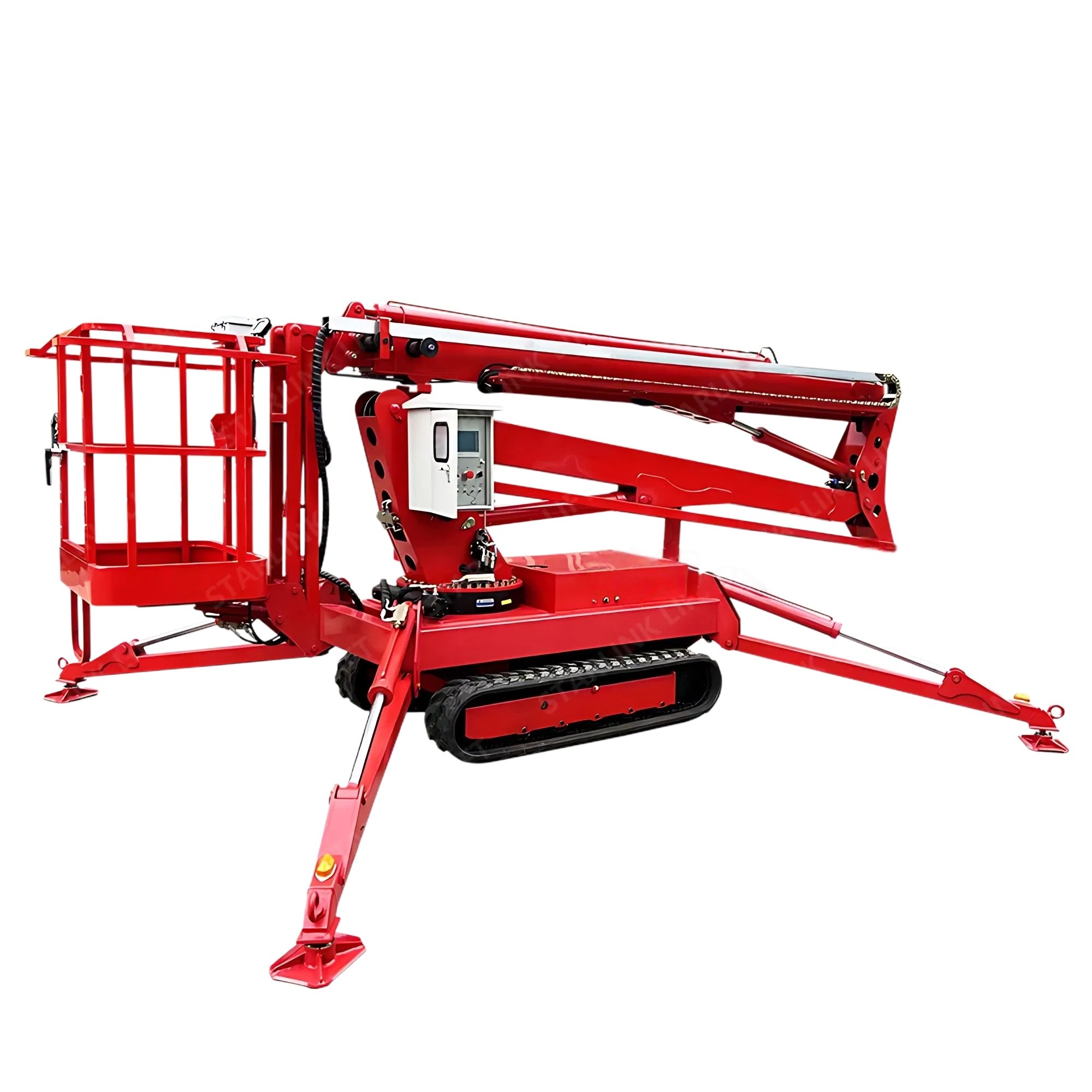

Crawler Spider Boom Lift

PRODUCT DESCRIPTION

Trailer-Mounted Boom Lift: High-Performance Aerial Solution

• Our trailer-mounted boom lifts offer platform heights ranging from 8m to 20m with a 200kg load capacity.

• Structure & Material: Engineered with a new generation of high-grade, high-strength steel, the boom balances a lightweight design with maximum structural integrity.

• Power Versatility: Available in AC, DC, Diesel, or Hybrid (Dual Power) configurations. The system supports direct AC startup for immediate operation.

• Operational Range: Features a 360-degree continuous rotation and an extensive working radius, allowing for superior accessibility in complex environments.

• Dimensions: A spacious 1.2*0.8m platform with 1.1m safety guardrails ensures a secure workspace.




  PRODUCT DETAILS

  Model	GTZZ14	GTZZ16
  Dimensions
  Max Working Height	16m	18m
  Max Platform Height	14m	16m
  Max Working Reach	8.5m	9.5m
  Platform Size(LxWxH)	1.2x0.8x1.108m	1.2x0.8x1.108m
  Transport Length (LxWxH)	6.06X1.935x2.277m	7.0x1.73x2.2m
  Outrigger Span (LxT)	3.892x4.198m	3.892x4.198m
  Performance
  Max Load Capacity	200kg	200kg
  Turret Rotation Angle (Continuous)	360°	360
  Machine Travel Speed (Retracted State)	1.8km/h	1.8km/h
  Machine Travel Speed (Lifted State)	0km/h	0km/h
  Minimum Turning Radius	0	0
  Lifting Motor	48V/4.5KW	48V/4.5KW
  Maximum Climbing Capacity (Luifted State)	30%	30%
  Maximum Allowable Working Angle	1.5-3°	1.5-3°
  Power
  Battery	8x12/100	8x12/100
  charger	48/35	48/35
  Weight
  Overall Weight	3900kg	4400kg

• Advanced Performance & Mobility

• Terrain Adaptability: Engineered to overcome obstacles with rapid deployment and automatic hydraulic outriggers.

• Precision Leveling: Each support leg is independently adjustable to ensure a perfectly level platform on uneven terrain.

• Efficient Reach: Enables multi-point operations from a single position, eliminating the need for frequent repositioning.

• Seamless Transport: The trailer-mounted design allows for easy, high-speed towing and immediate site access.

• Versatile Applications: Ideal for municipal work, power utilities, street lighting, advertising, and docks, even in rugged outdoor environments.

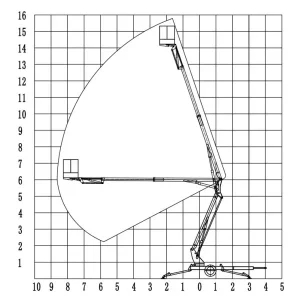

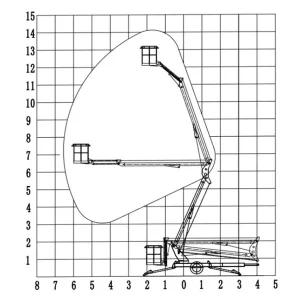

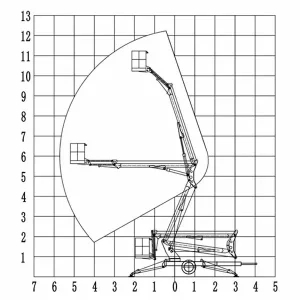

10m	12m	14m

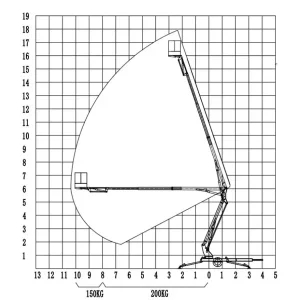

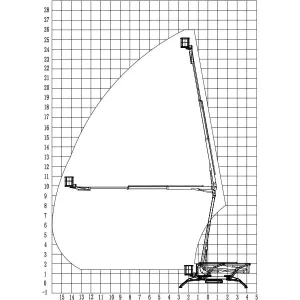

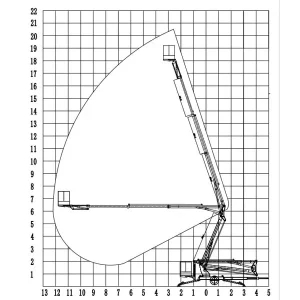

16m	18m	24m

Product Components

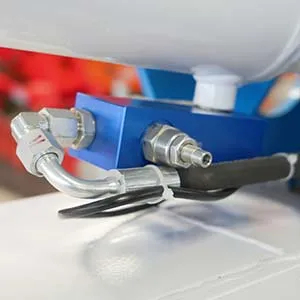

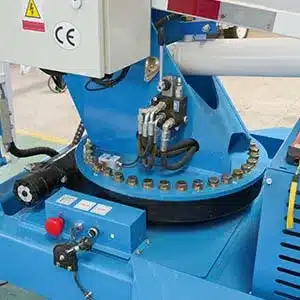

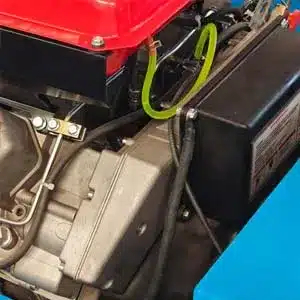

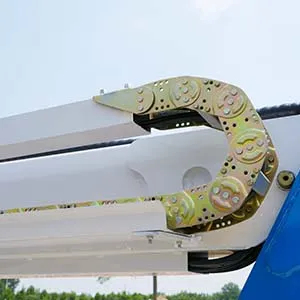

Emergency Lowering	Power-Optional	Steel-Drag-Chain	Standard 360° Rotation
