Self propelled Telescopic boom lift has a platform height of 20-30 meters, a carrying capacity of 250kg, and a climbing capacity of 45%. It has a large horizontal ductility, a wide operating range and high efficiency. The boom lift provides users with a safe aerial work platform to meet the needs of challenging working conditions. Widely used in large steel, construction engineering, shipbuilding industry, curtain wall engineering, petrochemical and other industries
PRODUCT DESCRIPTION
High-Performance Self-Propelled Telescopic Boom Lifts
Our telescopic boom lifts are engineered for maximum reach and efficiency, featuring platform heights from 20m to 30m and a 250kg load capacity. With a powerful 45% gradeability, these units excel in navigating rugged jobsites.
Superior Outreach: Designed with exceptional horizontal outreach and a vast operating range to enhance productivity.
Built for Challenges: Provides a safe and stable aerial platform tailored for demanding conditions.
Industry Applications: Widely utilized in steel plants, shipbuilding, petrochemicals, curtain wall engineering, and large-scale construction projects.
PARAMETERS

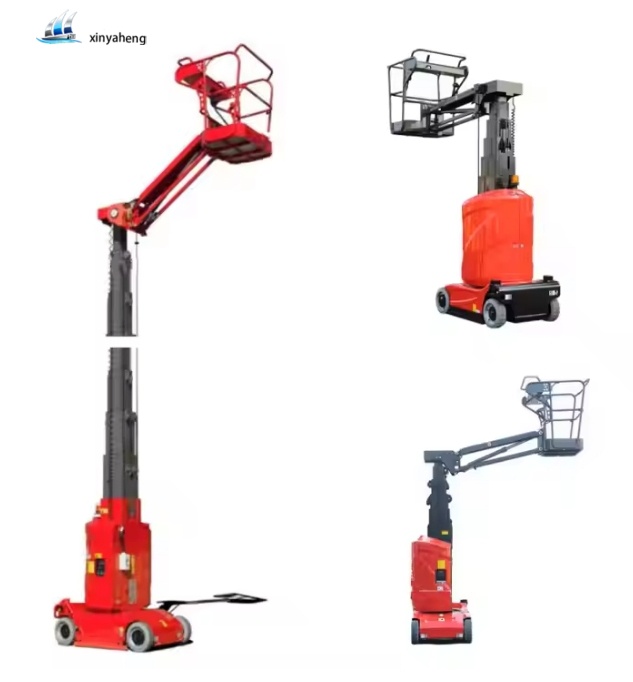

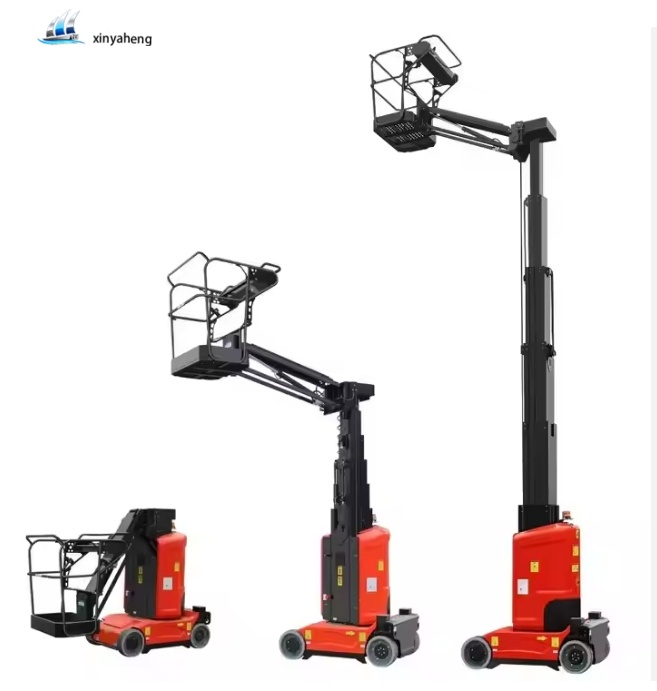

| Model (Self-propelled Articulating Boom Lift)) | FB11.2 |
| Max Working Height | 11.5m |
| Max Platform Height | 9.5m |
| Max Horizontal Reach | 3.48m |
| Overreach Height | 7.89m |
| Travel Width | All heights |
| Platform Load Capacity | 200kg |
| Max Working Persons (Indoor/Outdoor) | 2 |
| Stowed Height | 1.99m |
| Overall Dimensions (LxW) | 2.85mX1.00m |
| Platform Dimensions (LxW) | 0.90mX0.75m |
| llowable Inclination Angle (Front/Rear/Left/Right) | 2°/2° |
| Turret Rotation Angle | 345° |
| Rotation Type | discontinuous |
| Turret TailSwing | 0.07m |
| Boom Vertical Rotation | 130°(+70/-60) |
| Boom Length | 1.66m |
| Turning Radius (Inner/Outer) | 0.1m/1.68m |
| Travel Speed (Lifted/Retracted) | 0.5km/h/4.5km/h |
| Lifting/Lowering Speed | 55/40s |
| Max Working Angle | X-2.5° Y-2.5° |
| Tires | Ø381*127mm |
| Drive Motor | 24V/0.9kw |
| Lifting Motor | 24V/3kw |
| Battery | 24V/240Ah |
| Charger | 24V/30A |
| Total Weight | 2950Kg |
| Ground Clearance (Lifted/Retracted) | 0.02m/0.1m |
| Gradeability | 25% |
| Battery | 24V260Ah |
| Drive | AC |
| Tires | 406x127mm |
| Wheelbase | 1.2m |
| Total Weight | 2950kg |
PRODUCT CUSTOMIZATION
We offer comprehensive tailor-made solutions to ensure our equipment aligns perfectly with your specific operational requirements. Our customization services cover aesthetic branding, including personalized colors, brand identities, logos, and nameplates, allowing the final product to reflect your unique professional standards.
PRODUCT DETAILS
Precision Stability: Engineered for simple operation and exceptional stability, ensuring zero-impact movement and a shake-free experience at height.
Intelligent Interface: Features a high-brightness visual display for real-time parameter calibration, operational tracking, and integrated onboard diagnostics (OBD) with an automated fault alarm system.
Premium Powerhouse: Driven by industry-leading engines that deliver high-torque performance and unwavering reliability.
Superior Traction: The proprietary 4-wheel drive (4WD) traction system provides aggressive grip, enabling an impressive 45% gradeability for rugged jobsites.
