Manual towing/assisted walking/Trailer towing/vehicle-mounted
This series of products can reach heights of 4 to 18 meters and have a load capacity of 300 to 500 kilograms. They are suitable for the installation and maintenance of high-altitude equipment, as well as the maintenance and cleaning of lifting equipment in construction sites, factories, warehouses, grain depots, stations, etc. Maintenance of outdoor power equipment, maintenance of steel structure workshops, etc. This device can be equipped with auxiliary walking and five-wheel auxiliary walking functions. It can be moved by a single person, making operation more convenient.
PRODUCT DESCRIPTION
Maximize Productivity with Expansive Aerial Platforms

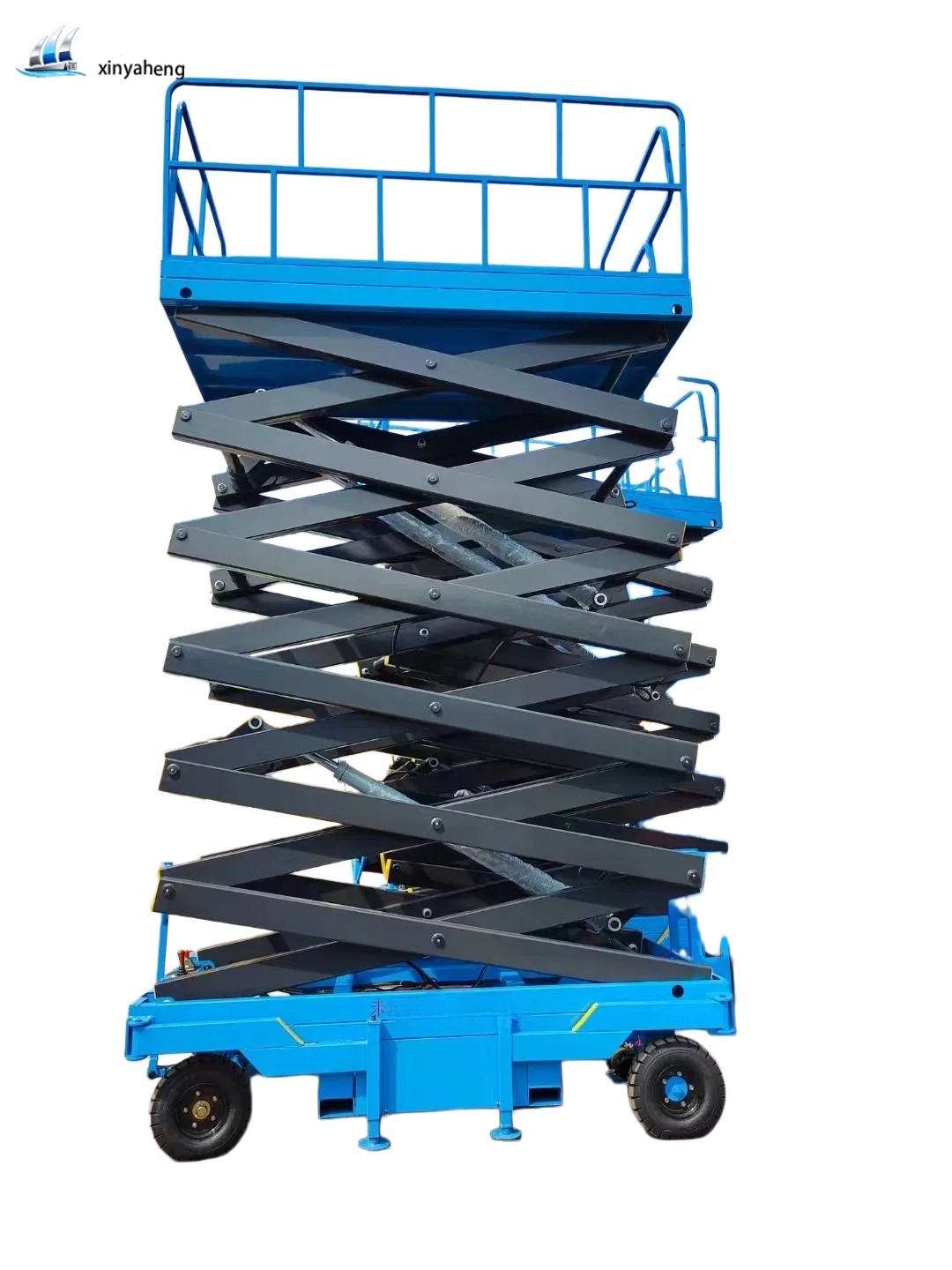

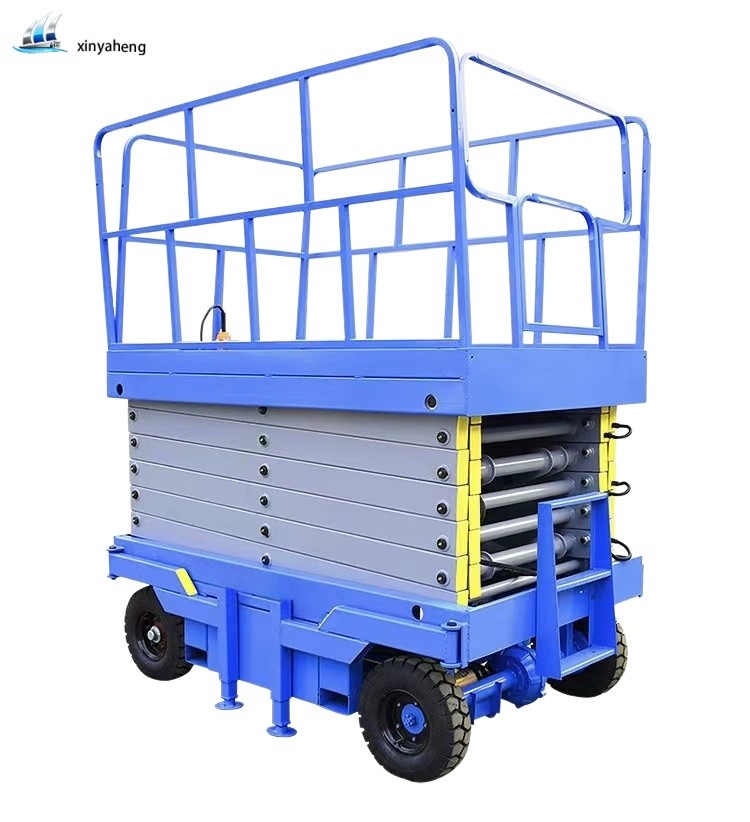

Designed for heavy-duty tasks, our mobile scissor lifts provide the space and strength needed for collaborative high-altitude work. Supporting loads up to 2,000kg and reaching heights of 26m, this versatile equipment ensures maximum safety for both indoor and outdoor projects. Whether you are maintaining a bridge or installing equipment in a workshop, our lifts deliver the stability your team demands.
PARAMETERS
Model | Platform size(mm) | Load capacity(kg) | Max. Platform Height(m) | Max. Working Height(m) | Overall dimensions(mm) | Machine weight(kg) |
XYHCY2-6 | 2100*830 | 2000 | 6 | 8 | 2250*950*1200 | 880 |
XYHCY2-7 | 2100*830 | 2000 | 6.8 | 8.8 | 2250*950*1200 | 970 |
XYHCY2-8 | 2100*930 | 2000 | 8 | 10 | 2250*1060*1380 | 1050 |
XYHCY2-9 | 2100*930 | 2000 | 9 | 11 | 2250*1060*1500 | 1165 |
XYHCY2-10 | 2100*1230 | 2000 | 10 | 12 | 2250*1350*1530 | 1360 |
PRODUCT CUSTOMIZATION
We offer comprehensive tailor-made solutions to ensure our equipment aligns perfectly with your operational requirements. Our customization services cover:
Visual Branding: Custom colors, branding, logos, and nameplates.
Power & Voltage: Flexible power options (AC, DC, or Diesel) and voltage configurations to meet local standards.
Machine Configurations: Enhanced features including assisted walking systems, extended work platforms, and solid tires.
Functional Upgrades: Pull-out outriggers, hand-press pumps, and remote control systems.
Safety Suite: Integrated alarm lights, overload alarms, and incline sensors for maximum site safety.
PRODUCT DETAILS
Technical Specifications
Lifting Height: Standard 4–18m; customized heights available from 20m to 26m.
Power Options: Standard AC 220V/380V. Optional DC, Diesel, or Hybrid (Dual Power) configurations. Voltage can be customized to local standards.
Performance: Lifting speed of 4–6m/min with a platform capacity of 300–2000kg.
Extended Platform: 0–900mm extension with a 113kg load capacity.
Safety Guardrail: Removable design with a standard height of 1.1m.
Build Material: High-grade Q235 Carbon Steel.
Maintenance: Shaft pins equipped with grease nipples (butter nozzles) for easy lubrication.
Design Details: Integrated tubing grooves to prevent hydraulic hose entanglement; standard pneumatic tires (customizable to solid tires).
